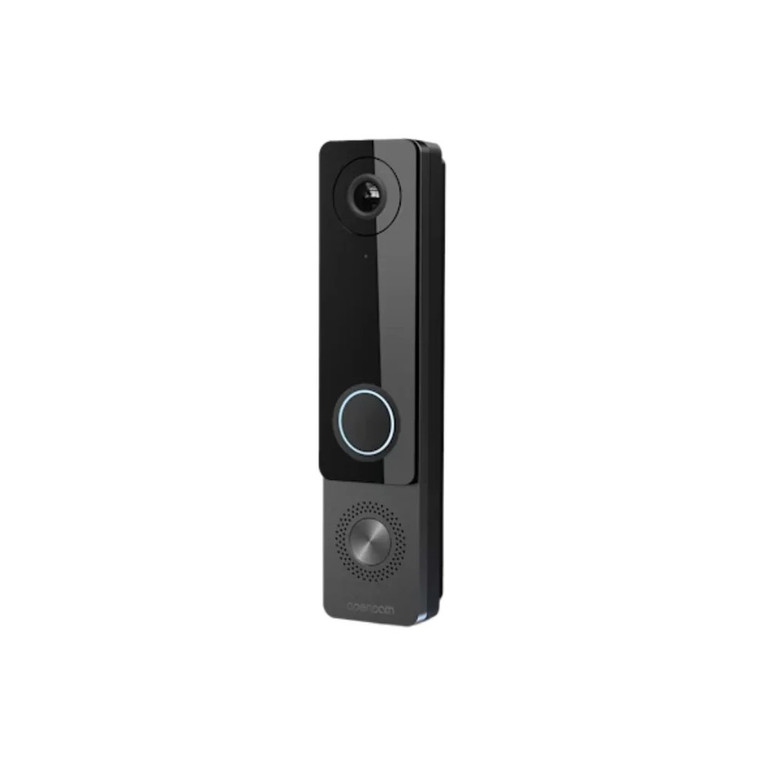

Motorola Avigilon Video Intercom Reader Pro

The Avigilon Video Intercom Reader Pro combines video security, an intelligent intercom, and Smart Reader into a single device with a modern, mullion form factor. Designed to enhance security with visibility, and improve the visitor experience, the Video Intercom Reader Pro is ideal for public and main entrances. Guests can use the intercom to initiate calls, communicate with assigned users, and are visually verified in the Alta Open mobile app. Associate video footage with access events, and monitor entries in Alta Access. The Video Intercom Reader Pro is a multi-technology reader that supports both low (125 kHz) and high (13.56 MHz) frequency RFID credentials

Key Features

• Smart intercom - Visitors can use the built-in voice assistant to access a customizable user directory that includes front desk, apartment, and business tenants. They simply say the contact's name or ask for the front desk to connect instantly
• Clear calls - Two-way audio streaming, with live video and echo and noise cancellation lets users easily communicate with and visually verify guests at the doors.
• Increase visibility, improve security - Associate video with access events or alerts and monitor entries from the Alta Access mobile app or Alta Access on your computer to validate activity. Reader height and adjustable camera angle ensures optimal view of person entering.
• Easy management and monitoring - Software runs in the cloud for easy, secure access and remote monitoring, without the need for local servers. Built-in diagnostics and realtime troubleshooting insights streamline management.
• Seamless provisioning - Integrations with identity service providers, like Okta, Microsoft Active Directory and Google, to streamline end-user roll out when used with mobile credential provisioning. Supports remote unlocking with user-level privileges.
• Fast, reliable mobile access - Patented Triple Unlock with Bluetooth, WiFi and cellular data ensures reliable unlocks with mobile credential options like Wave to Unlock, Apple Wallet, or the Alta Open app for mobile or smart watch.
• Secure and fail safe - Tamper-resistant design, with a built-in accelerometer to alert on physical tampering events. The reader features encrypted end-toend communication and strong public-key cryptography to keep everything protected.

Technical Specifications

• Camera
  • Camera Resolution: 5MP (2592 x 1944)
  • Recording Rate: 25 fps
  • Privacy Areas and Regions of Interest: Yes
  • Video Compression: H.264, MJPEG
  • Night Mode:
    • Infrared light for night vision
    • IR range: 9m (29.53ft)
  • Field of View:
    • Horizontal: 109°
    • Vertical: 81°
    • Diagonal: 136°
  • Image Sensor: 1/2.5” 5MP CMOS
  • Bit Rate: CBR, VBR, MBR
  • Min. Illumination:
    • Color: 2.5 lux
    • B/W: 0.0 lux (IR LED on)
  • Focal Length: 2.8mm (F1.6)
  • Anti-overexposure: Yes
  • Wide Dynamic Range: HDR (87dB)
• Audio
  • Speaker One 2W: speaker
  • Microphone: Two built-in microphones
  • Noise Cancellation: Yes
  • Echo Cancellation: Yes
• Intercom
  • Call Routing:
    • Direct Connect: Visitors call users by stating their name
    • Front Desk Connect: Visitors call a group of users designated as the Front Desk
    • Unit Connect: Visitors call one or more users by stating the unit or apartment number
    • Visual Voicemail: Visitors may leave a voicemail to be seen by a site administrator
    • Advanced features: Priority ranking, schedules, and fallback routing
  • Connection Methods:
    • Phone number using PSTN protocol
    • Notification from Alta Open mobile app
    • Video call to Alta Open mobile app (iOS only)
  • User Management:
    • Intercom profile for each user: Includes assigned intercoms, call routing profiles, buildings, and schedules
    • Nicknames for enhanced user identification by the voice assistant
  • Virtual Directory: Print QR codes for visitors to access a user directory on their mobile phone
  • Motion Detection: Detects activity and starts recording
  • Onboard Video Storage: 10GB eMMC for network failover recording
  • Cloud Video Storage: 30, 60, 90, and 180 day plans available
  • SIP Mode: SIP-enabled and Voice over IP (VoIP) calling on legacy systems
  • Languages: For greetings and voicemail messages:
    English (US), Spanish (ES), Spanish (MX), French (FR), Italian (IT), German (DE), Polish (PL)
• QR Code Support: Capable of reading and forwarding QR codes to third-party systems
• Credential Compatibility
  • Avigilon Alta Mobile Credential:
    • Bluetooth LE
    • Auto Proximity Unlock
    • Wave to Unlock
    • Alta Open mobile app supported on iOS and Android™-compatible devices
  • Avigilon Alta Mobile Wallet Credential: Apple Wallet
  • High-Frequency (13.56 MHz) Card and Fob: MIFARE Classic, DESFire®, Ultralight (ISO14443A) CSN
  • Low-Frequency (125 kHz) Card and Fob: HID® Proximity™, ProxCard®, LenelProx®
• General
  • LED Indicators: Video Intercom Reader Pro power on or off, user access granted or denied, entry or door locked or unlocked, provisioning and connection status to access control system
  • Wiring:
    • Ethernet for network connection
    • Note: The Pro series reader does not require a controller, however, a Smart Hub is required to support locking hardware.
    • Wiegand input/output for connection to third-party controller or device
    • Relay with 100mA maximum rating for use with a powered relay for triggering a doorbell chime
  • Communications: TLS 1.2+ encryption between Video Intercom Reader Pro and access control cloud service
  • Tamper: Accelerometer sensor to detect tamper events
  • Power: 802.3af/at PoE , 10.8W power consumption
• Weight: 0.85 lbs (384 g)
• Environmental
  • Temperature
    • Operating Temperature: -40°C (-40°F) to 50°C (122°F); Cold start -25°C (-13°F)
    • Storage Temperature: -40°C (-40°F) to 50°C (122°F)
  • Operating Humidity: Up to 90% RH non-condensing
  • IP Rating: Indoor and outdoor IP65 (IEC 60529)
• Regulatory
  • Certifications: FCC (United States), ISED (Canada), CE (Europe), UKCA (United Kingdom), NOM (Mexico), RCM (Australia, New Zealand), BIS (India), ANATEL (Brazil), UL 294*, CAN/ULC 60839-11-1 *Performance Levels: Attack Level I, Endurance Level I, Line Security Level I, Standby Power Level I
  • Compliance: NDAA, TAA
