Warranty: Up to 10-Year

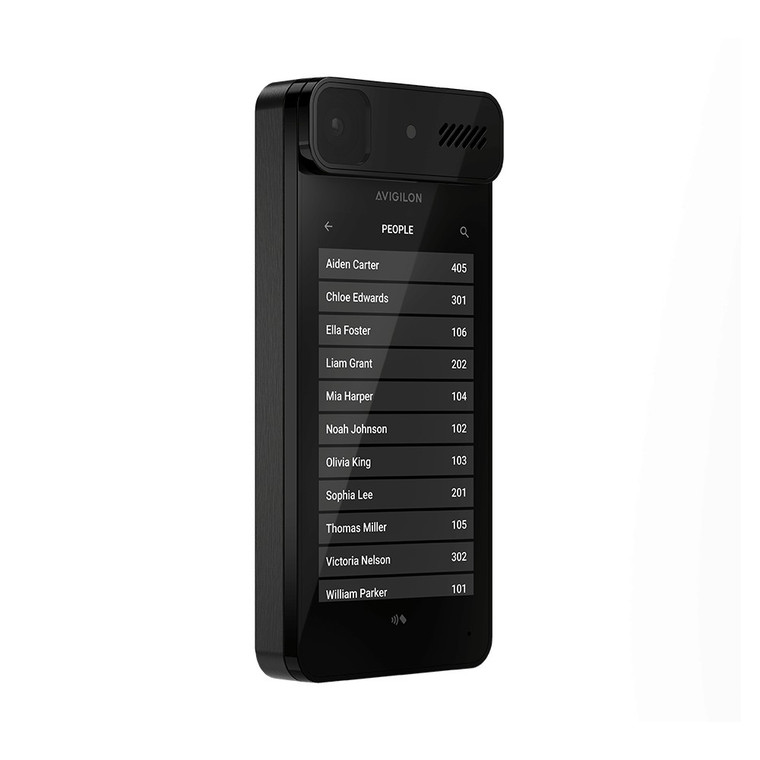

The Intercom Touch is everything you need to protect your front door. Get mobile alerts for suspicious activity, let tenants enter using the built-in reader, and manage security from the same app used to answer the door. It all comes together with a clean touch screen experience that helps get the right people in, faster. It’s a smart welcome that creates safer buildings, starting at the door.
Key Features
- Clear security - 24/7 protection. The 5MP wide-angle camera with IR captures every detail. Smart analytics detect suspicious activity and alert admins instantly to keep your building safe.
- Enter your way - The 7" touch directory makes finding tenants easy. Noise cancellation keeps audio crisp, and tenants can answer video calls on their phones or use #9 to unlock from a landline.
- Built-in reader - Verified users can get inside with options including mobile wallet, PIN, key card or fob. For a hands free experience, use Wave to Unlock while keeping your phone in your pocket.
- Completely customizable - Say welcome, your way. Upload custom backgrounds and messages. Choose the specific buttons and text that fit your building’s needs.
- Easy to install - Plug in to start securing. With a built-in controller, the Intercom Touch installs as a standalone PoE+ unit. No hidden controllers or hubs needed.
- Built to last - Designed to withstand harsh weather and vandalism with IP65 and IK08 ratings.
Technical Specifications
- Camera
- Image Resolution: 5MP (2592 x 1944)
- Recording RateL 15 fps
- Video Compression: H.264, MJPEG
- Night Mode: White LED for night vision, IR
- Field of View:
- Horizontal: 130°
- Vertical: 100°
- Diagonal: 145°
- Image Sensor: 5MP CMOS
- Bit Rate: CBR
- Wide Dynamic Range: HDR (87dB)
- Audio
- Speaker: One 3W speaker
- Microphone: One
- Noise Cancellation: Yes
- Echo Cancellation: Yes
- Intercom
- Person Directory: Lists users by name, optionally displays unit number
- Business Directory: Lists units by name or unit number, optionally displays floor or building
- Call Group: Calls a pre-determined group of users
- Connection Methods: Phone number, Alta Open mobile app video, Alta Access web app video
- Cloud Video Storage: 30 days included; additional 30, 60, 90, and 180 day plans available
- Onboard Retention: 30 days
- Interfaces
- I/O Ports:
- 1 dry relay
- 2 inputs
- microSD: 1 slot and 1 microSD card included
- Ethernet Port: RJ-45 with PoE support
- DC Port: DC Input
- I/O Ports:
- Credential Compatibility
- Avigilon Alta Mobile Credential:
- Triple Unlock technology:
- Bluetooth® Low Energy
- Auto Proximity Unlock
- Wave to Unlock
- Alta Open mobile app supported on iOS and AndroidTM-compatible devices
- Triple Unlock technology:
- Avigilon Alta Mobile Wallet Credential*: Apple Wallet (* This integration is available in the Alta Access App marketplace and requires a purchased license.)
- High-Frequency (13.56 MHz) Card and Fob: MIFARE Classic, MIFARE DESFire EV1, EV2, EV3, Ultralight (ISO14443A) CSN
- Low-Frequency (125 kHz) Card and Fob: HID® ProximityTM, ProxCard®, LenelProx®
- Keypad PIN: Supported
- Avigilon Alta Mobile Credential:
- General
- Display Size: 7 inch
- LED Indicators: Status LED (Internal)
- Tamper: Accelerometer sensor to detect tamper events
- Power: 802.3at PoE+ (48 VDC, 0.69A) or DC (12V 2.5A or 24V 1.5A)
- LED Lighting:
- Ambient, top and bottom
- Night Mode
