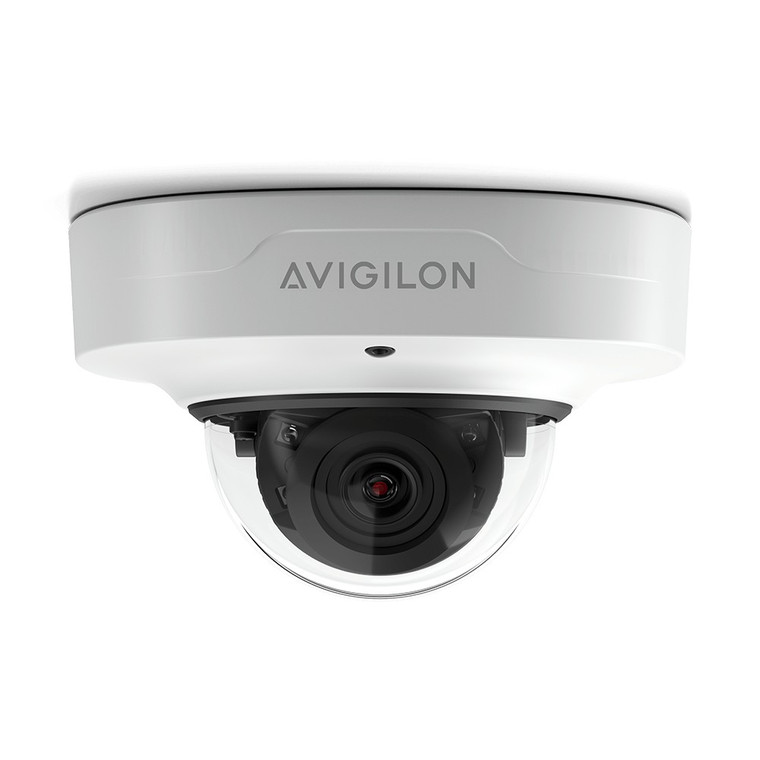

Motorola Avigilon Alta A5 Compact Dome Series

Motorola Avigilon Alta A5 Compact Dome Series

Motorola
SKU:
COMPACTDOME-W-5MP-30

Pricing available upon request

Warranty: Up to 10-Year
Current Stock:
Description

The Alta A5 Compact Dome camera is effortless to install and manage over the cloud, and helps you focus on the events that require your immediate attention.

Versatile and sleek Compact Dome

The 5MP Compact Dome AI camera captures every detail in demanding light conditions, making the series ideal for discreet indoor setups for retailers, hotels, schools, offices, gyms and more.

  • 5MP image sensor - High resolution, exceptional low light performance and multi-exposure line-based HDR capture every detail in challenging light conditions, irrespective of the environment.
  • Breakthrough CPU - Unparalleled image processing, high-resolution video encoding and computer vision via Ambarella’s system on a chip.
  • Acoustic sensor - The acoustic sensor delivers integrated audio analytics that identifies audio events.
  • Snap-on case - Innovative mounting and Ethernet connection inside the camera, despite its small size — ideal for discreet installations or areas with reduced space.

Monitor video smarter with threat detection in real-time

Compact Dome devices integrate advanced intelligence via image recognition, machine learning and acoustics. The cameras detect abnormal behavior and alert operators in real-time. The cameras also identify specific sound patterns like screaming, gunshots, breaking glass or loud noises to determine the type of sound.

Deploy cameras online in minutes

Our plug-and-play configuration removes the need for usernames and passwords, pre-configuration setup or default settings. Scan the unique QR codes on the Compact Dome cameras to onboard them to the Alta Aware Cloud video management system. Users can connect the Compact Dome to walls and ceilings using existing legacy mounts. Cloud-managed Compact Dome devices include onboard storage with up to 120 days of retention.

Capture clear and sharp details

The Compact Dome is a 5MP security camera that includes a ƒ/1.3 aperture, a focal length of 3.2mm, and multi-exposure line-based HDR to deliver exceptional image quality in ideal light conditions and challenging low light. The series integrates IR illumination for sharp footage even in complete darkness.

Key Features

  • Fixed lens compact dome with IR
  • Built-in AI video and audio analytics and on-device storage
  • Versatile, lightweight, and fit for discreet indoor installations
  • Factory-installed certificates backed by a trusted platform module (TPM)
  • High resolution (5MP) and extreme low light performance (f/1.3)
  • NDAA-compliant: designed and developed in Norway and the UK, manufactured in Taiwan

Technical Specifications

  • Image sensor: 5MP (4:3)
  • Network protocols:
    • IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP, RTSP, RTP, RTCP, ICMP, DHCP, ARP
    • Streaming: RTP/UDP, RTP/RTSP/HTTPS/TCP
  • Image sensor size format: 1/2.7"
  • Lens:
    • Focal length: 3.2mm
    • Aperture: ƒ/1.3
    • Fixed focus
  • Power source:
    • PoE 802.3af
    • USB-C, installation only
  • IR night vision:
    • Automatic night mode
    • IR-cut filter
    • IR range: 10m
    • 850 nm IR LED
  • Power consumption:
    • Typical: 5W
    • Max: 8W
  • Storage: 2x MicroSD, SDXC UHS-I
  • Minimum illumination in color mode: 0.10lux
  • Connection:
    • 802.3ab 10/100 Ethernet
    • USB-C for preview and setup
  • Field of view:
    • 102° Horizontal
    • 71° Vertical
  • Installation aid:
    • Mount template
    • Screws and wall plugs included
    • 1/4-20 UNC standardized camera mount thread
  • Maximum resolution & Frame rate: 2688x1944@30fps
  • Dynamic range: Multi-exposure line-based HDR
  • Adjustment range: Pan, Tilt, Roll
  • Video compression: H.265, H.264, Motion JPEG
  • Temperature:
    • Operating: 0oC to +40oC
    • Storage: -40oC to +60oC
  • Audio:
    • Microphone
    • Audio classification
  • Physical characteristics:
    • Dimensions: 107x107x64mm
    • Weight: 280g
  • Security:
    • Trusted Platform Module (TPM 2.0)
    • Factory-installed certificates
    • No default passwords
    • Mandatory access authentication
    • HTTPS/TLS encryption
  • EMC:
    • EN 55032, EN 61000-3-2/-3, EN 55024,
    • EN 55035, EN 61000-6-1/-3, EN61000-6-2/-4,
    • FCC Part 15B, ICES-003 Issue 6
  • Safety: IEC62368-1, UL62368-1, IEC62471
