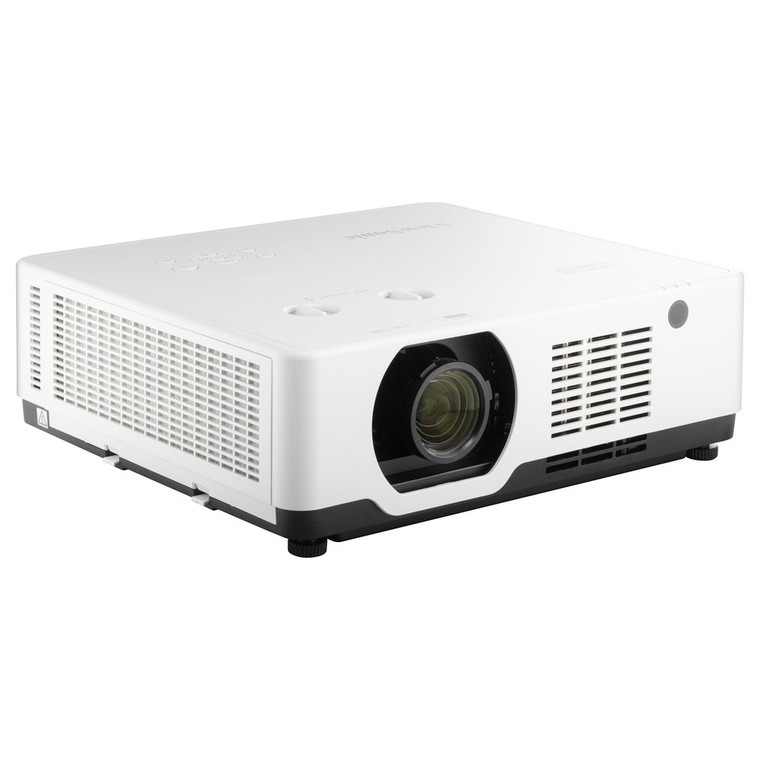

Viewsonic LSC601WU 6000lms WUXGA Laser Installation Projector

Viewsonic LSC601WU 6000lms WUXGA Laser Installation Projector

ViewSonic
SKU:
LSC601WU
|
UPC:
766907029284

Pricing available upon request

ViewSonic Projectors (unless otherwise specified) are warranted for three (3) years from the date of first consumer purchase for parts and labor and one (1) year limited lamp warranty.
Current Stock:
Description
The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Next-Gen Meeting Experience with 21:9 Aspect Ratio

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

2nd Generation Laser Phosphor Technology

The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Centralized Control for Management Efficiency

The LSC601WU is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.

I/O

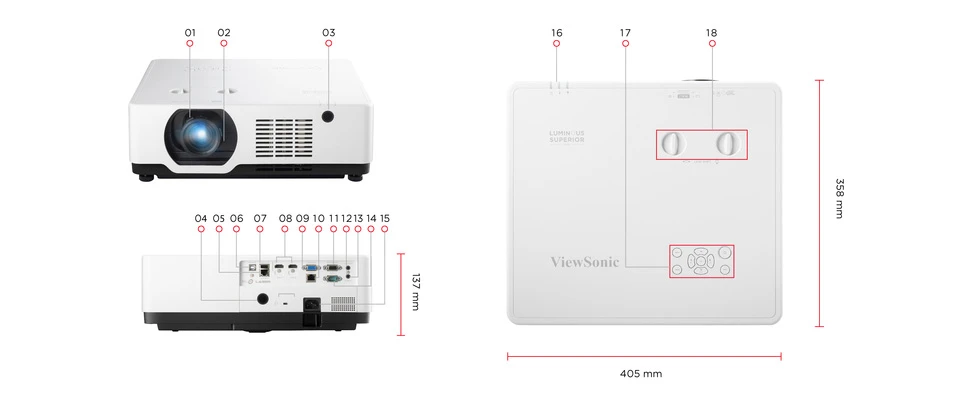

Dimensions & I/O Ports 1

  1. Zoom Ring
  2. Focus Ring
  3. Front IR
  4. Rear IR
  5. RJ45
  6. Service
  7. USB-A (5V/2A)
  8. HDMI x2
  9. Computer
  10. HDBaseT
  11. Monitor Out
  12. Audio Out
  13. Audio In
  14. RS232
  15. AC In
  16. LED Indicator
  17. Keypad
  18. Lens Shift Control Knob x2

Key Features

  • 6,000 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
  • 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management

Technical Specifications

  • Projection System: 3LCD (3x0.64" with MLA)
  • Native Resolution: 1920x1200
  • Brightness: 6000 (ANSI Lumens)
  • Brightness (Center Lumens): 6500
  • Contrast Ratio: 3000000:1
  • Display Color: 1.07 Billion Colors
  • Light Source Type: Laser Phosphor
  • Light Source Life (hours) with Normal Mode: 20000
  • Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  • Lens: F=1.58-2.02, f=15.3-24.6mm
  • Projection Offset: 0%+/-5%
  • Throw Ratio: 1.08-1.76
  • Optical Zoom: 1.6X
  • Digital Zoom: 1.0x-4.0x
  • Image Size: 30"-300"
  • Throw Distance: 0.70-11.37m (100"@2.33m)
  • Keystone: H:+/-30° , V:+/-30°
  • Auto Keystone: +/- 30° (V)
  • Lens Shift V. Range: +45%, 0%
  • Lens Shift H. Range: +21%, -21%
  • Audible Noise (Normal): 35dB
  • Audible Noise (Eco) : 25dB
  • Input Lag: 60ms
  • Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
  • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  • Horizontal Frequency: 15K-100KHz
  • Vertical Scan Rate: 23-85Hz
  • Input
    • Computer in (share with component): 1
    • HDMI: 2 (HDMI 1.4, HDCP 1.4)
    • Audio-in (3.5mm): 1
    • USB Type A: 1 (5V/2A)
    • HDBaseT: 1
  • Output
    • Monitor out: 1
    • Audio-out (3.5mm): 1
    • Speaker: 16W
    • USB Type A (Power): 1 (USB2.0 - 5V/2A, share with USB A Input)
  • Control
    • RS232 (DB 9-pin male): 1
    • RJ45 (LAN control): 1
    • USB Type B (Services): 1
  • Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
  • Power Consumption
    • Normal: 330W
    • Standby: <0.5W
  • Operating Temperature: 0~40℃
  • Carton: Brown
  • Net Weight: 7.9kg (17.42 lbs)
  • Gross Weight: 10.1kg (22.27 lbs)
  • Dimensions (WxDxH) with Adjustment Foot: 405x358x137mm (15.9x14.1x5.4 in)
  • Packing Dimensions: 510x498x260mm (20.1x19.6x10.2 in)
  • OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
  • User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

What's Included

  • Power Cord: 1
  • Remote Control: 1
  • QSG: Yes
  • Air Filter: Yes
  • Warranty Card: Yes (CN Only)
Additional Information
ANSI (Lumens):
5000
Resolution:
WUXGA (1920 x 1200)
Product Type:
Projector
