Verkada High Surge (HS) PoE++ (802.3bt-2018) Injector, GigE

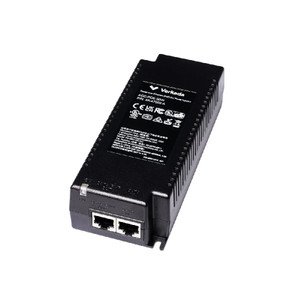

Verkada ACC–POE–60W High Surge (HS) POE++ Injector

Verkada’s ACC–POE–60W high surge PoE++ injector converts two inputs – a power cable and an Ethernet cable – to a single PoE ++ port (IEEE 802.3bt/at/af standard) with up to 60W of power and 6kV 100kHz Transient Ring Wave. The ACC–POE60WHS is designed to power the AC12 one-door controller, but it is also backwards compatible and safe to use with any IEEE 802.3at/af Verkada devices. The ACC–POE–60WHS comes with a US power cord (for US customers) and a UK power cord (for Europe customers) and is wall mountable.

Key Features

• IEEE 802.bt compliant (type 4, class 6 - 60W maximum)
• IEEE 802.3at/af backward compatible
• Output power of 60W over 4–pairs
• Supports 10/100/1000 Base–T applications
• Safe: low–power devices receive only the power they need
• Automatic detection and protection of non–standard Ethernet terminals

Technical Specifications

• AC input operating voltage: 100VAC to 240V
• AC AC input frequency: 47Hz to 63Hz
• AC input current: 1.5Arms maximum at 90VAC and maximum load
• Output: +56VDC (nominal) +1/-3V (57-53VDC)
• Turn on delay time: 7 sec Max @ Min. load including detection @ 120VAC 60 Hz
• DC output current maximum load: 535mA for IEEE802.3bt
• DC output current maximum load: 1.07A for IEEE802.3bt type 4, class 6 (PoE++)
• Efficiency: DOE Standard level VI, Average Efficiency
• Dimensions

  • Length: 4.07in / 103.4mm
  • Width: 1.65in / 42mm
  • Height: 1.12in / 28.7mm
• Weight: 0.59lb / 270g
• AC inlet: IEC320 C14
• Output connector: Female RJ45
• Solid green: Detection/Connection Valid & Output “ON”
• Blink red (short, slow): Waiting for valid Connection/Detection
• Blink red (long, fast): Fault Condition (Over Current or Shorted)
• Blink red & green: Detection is Invalid
• UL: UL62368-1 ed3
• CB: IEC 62368-1:2020+A11:2020
• CUL: CAN/CSA C22.2 No.62368-1:19
• CE: EN 62368-1:2020+A11:2020
• Vibration: Frequency range: 10~55Hz Amplitude 2G over entire frequency range. Sweep 1 minute for X, Y, Z axis, each cycle: 20
• Operating temperature: -4°F - 104°F / -20°C - 40°C
• EMC: IEC61000-4-2, 3, 4, 5, 6, 11,IEC61000-3-2 UL294 Eighth Edition (6kV 100kHz Transient Ring Wave) - for PoE only
• Relative humidity:
  • Operation 10% to 90%
  • Storage 5% to 95%
• MTBF: For 25ºC Ambient Temperature Operation MTBF>100K hrs @ max Load MIL-HDBK-217F
• EMI: EN55032, EN55035,FCC Part 15, ICES-003, AS/NZS CISPR 32,Class B
