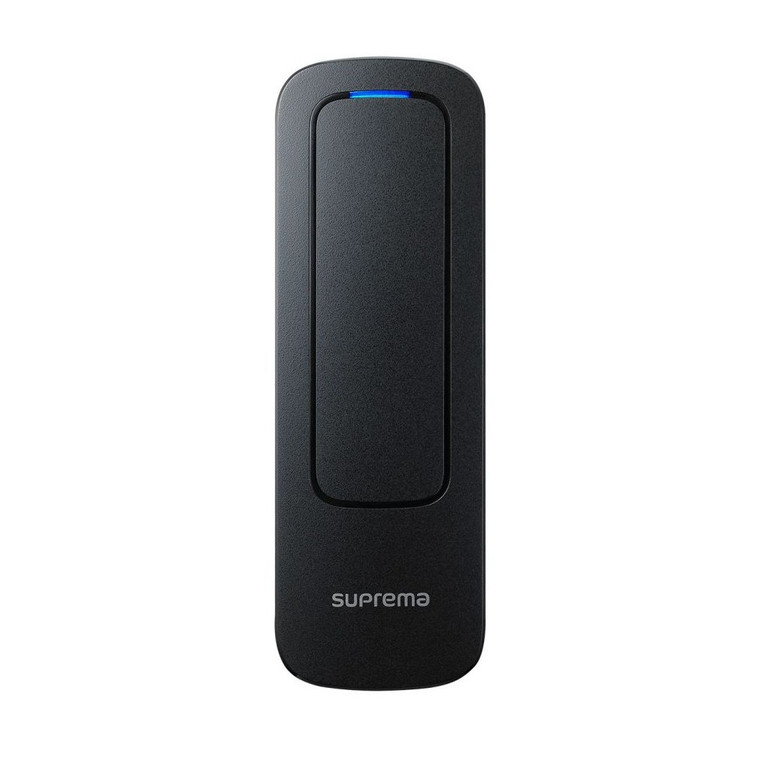

Suprema XPass 2 XP2-MAPB Outdoor Dual RFID Card Reader, Mullion type, Dual RFID HID 125kHz and 13.56MHz

Dual Frequency and Multi-ISO Readout

Characterized by dual RFID card reading, the XPass 2 card reader supports two frequencies at once: LF (125KHz) and HF (13.56MHz), including all RFID card standards.

Positioning itself at the top of fingerprint credentials, XPass 2 supports most RFID card standards with a single terminal, including 125 kHz EM, Wiegand card format, 13.56 MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC, and BLE.

Communication with Smartphones

The mobile device is an access key. It serves as a credential with the BioStar 2 Mobile Access software.

• Communication via BLE and/or NFC.

Access control for door frames and electrical boxes

XPass 2 is a very compact card reader and comes in 3 designs for those small spaces.

The XPass 2 Mullion-type design measures 48mm wide and is perfect for narrow spaces and door frames.

Dustproof and waterproof. IP65 and IP67 protection.

The device provides superior protection against invasive moisture, dust, and even liquids. This protection is achieved through Suprema's meticulous sealing and additional protective engineering. Regardless of the environmental conditions, the XPass 2 is the ideal choice for outdoor installations.

IK08 protection rating. Vandal-resistant structure.

XPass 2 comes with a rugged, shock-resistant casing.

Combining reinforced resin and Suprema's sophisticated engineering, XPass 2 is capable of withstanding a high level of impact, making it vandal-resistant. A perfect solution for outdoor installation.

Installations carried out

Access apartments via mobile

Configuration

Key Features

• Dual Frequency and Multi-ISO Readout
• Communication with Smartphones
• Access control for door frames and electrical boxes
• Dustproof and waterproof. IP65 and IP67 protection.
• Vandal-resistant structure. IK08 protection rating.
• It works with the new access control software (free up to 5 doors) and presence software (free up to 100 users) Suprema BioStar 2

Technical Specifications

• Credential
  • RF option: 125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3 1) , FeliCa, iCLASS SE/SR/Seos
  • RF reading range: MIFARE/DESFire/iCLASS/EM: 50mm, HID Prox/FeliCa: 30mm
  • Mobile card: NFC, BLE
• Protections
  • IP Rating: IP65, IP67
  • IK Classification: IK08
• Capacity (RFID)
  • Users (1:1): 200,000
  • Users (1:N): 200,000
  • Text log: 1,000,000
  • PIN: Not supported
• General
  • CPU: 1 GHz
  • Memory: 4 GB Flash + 64 MB RAM
  • Cryptographic Chip: Supported
  • Screen: Not supported
  • LED: Multicolored
  • Sound: Multi-tone Buzzer
  • Operating temperature: -35°C ~ 65°C (-31°F ~ 149°F)
  • Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity: 0% ~ 95%, non-condensing
  • Storage humidity: 0% ~ 95%, non-condensing
  • Weight:
    • Device: 144g
    • Bracket: 30g (Including washer and bolt)
  • Dimensions (width x height x depth, mm): 48 x 144.7 x 27 (mm)
  • Certifications: CE, UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE
• Interface
  • Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
  • Wifi: Not supported
  • Network protocol: TCP, UDP
  • RS-485: 1ch Master or Slave (Selectable)
  • RS-485 communication protocol: OSDP V2 Compliant
  • Wiegand: 1ch Input or Output (Selectable)
  • Entrance: 2ch Inputs
  • Relay: 1 Relay
  • USB: Not supported
  • SD card: Not supported
  • PoE: Supported (IEEE 802.3af compliant)
  • Intercom: Not supported
  • Tamper-evident: Supported
• Electric
  • Feeding:
    • Voltage: 12 Vdc, Current: Max. 0.5A
    • Voltage: 24 Vdc, Current: Max. 0.3A
