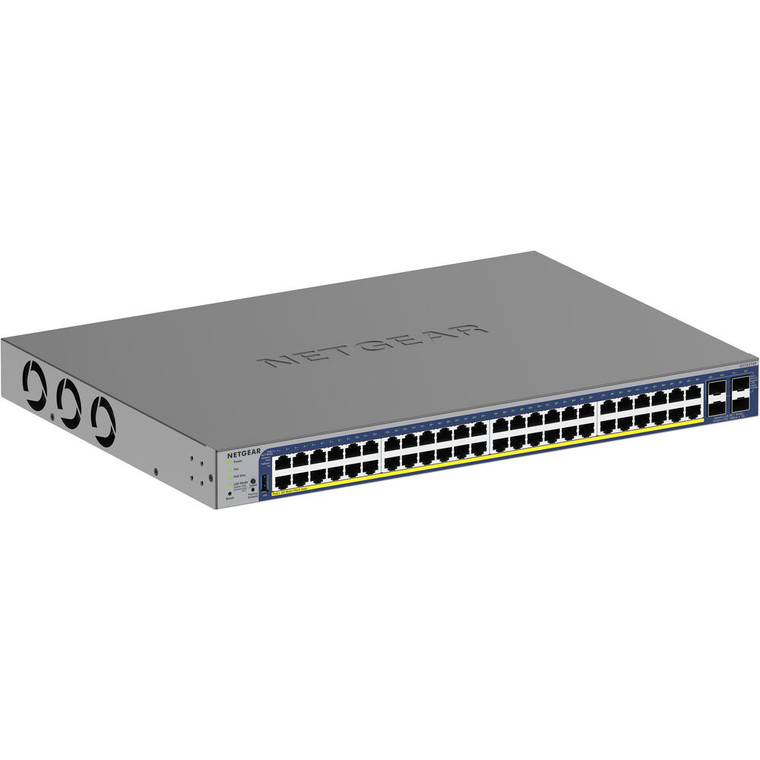

Netgear 52-Port Gigabit Ethernet Smart Managed Pro PoE Switch (GS752TXPv3 380W) with 48 x 1G PoE+, 4 x 10G SFP+ Desktop/Rackmount and ProSAFE

Netgear 52-Port Gigabit Ethernet Smart Managed Pro PoE Switch (GS752TXPv3 380W) with 48 x 1G PoE+, 4 x 10G SFP+ Desktop/Rackmount and ProSAFE

Netgear
SKU:
GS752TXP-300UKS
|
UPC:
606449171273

Pricing available upon request

Lifetime Warranty
Current Stock:
Description

Grow your business with powered devices such as IP cameras, access points, and VoIP phones with the GS752TXPv3 48-Port Gigabit PoE+ Managed Switch from Netgear. Designed for easy installation and flexible management, this switch features 48 Gigabit Ethernet ports, each of which supports up to 29W of power with a 380W budget. There are also four SFP+ ports that support up to 10 Gb/s fiber uplinks.

With a 176 Gb/s non-blocking switching capacity and 130.94 Mpps forwarding rate, the GS752TXPv3 delivers smooth and fast performance. It also supports up to 256 VLANs. Extensive Layer 2+ and Layer 3 Lite features add security, efficiency, and easy management. Two cooling fans help to ensure optimal performance without disturbing your environment when mounted onto a rack or desktop. A 1-year subscription to the Netgear Insight management platform is included, which allows you to configure and monitor your network using your mobile device from almost anywhere, anytime.

Netgear Insight Management

Gain simple yet powerful control of your network anytime and anywhere, even across multiple locations using a web-based interface or mobile app. NETGEAR Insight handles your network so you can focus on running your business.

Layer 2 / Layer 2+ Support

Powerful Layer 2+ / Layer 3 Lite features enhance performance, usability, and network efficiency.

Additional Features

  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling.
  • Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
  • Auto "denial-of-service" (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
  • Dynamic ARP for increased security targeting a class of Man in the Middle attack
  • Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • Cable test to troubleshoot connection issues
  • SNMP v1, v2c, v3 and RMON remote monitoring
Key Features
  • 48 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP+ Slots
  • 176 Gb/s Switching Capacity
  • 130.94 Mpps Forwarding Rate
  • Rack Mountable Design
  • 380W Power Budget
  • Supports Up to 256 VLANs
  • Layer 2+ & Layer 3 Lite Features
  • 2 x Integrated Fans
  • Cloud Management

Technical Specifications

  • Width: 440mm
  • Depth: 257mm
  • Height: 43.2mm
  • Weight: 3.53kg (7.78 lb)
  • Model Description: 48-Port Gigabit Ethernet Smart Switch with 4 10G SFP+ Ports
  • 10/100Mbps ports: 48
  • 10G SFP+ ports: 4
  • Number of PoE+ ports (802.3at): N/A
  • Total PoE Power budget (Watts): N/A
  • Max MAC entries: 16K
  • Buffer size: 1.5MB
  • VLAN (Number Supported): 512
  • VLAN routing: Yes
  • Dynamic VLAN assignment: Yes
  • MLD Snooping: Yes
  • Static route: Yes
  • Host ARP table: 512
  • EEE: Yes
  • DoS Prevention: Yes
  • Internal/External Power Supply/Adapter: Internal
  • Max consumption without PoE (Watts): 43W
  • FAN: 2
  • Acoustic Noise Level @25C (dBA): 32.5dBA
  • Operating Temperature: 0° to 50° C
  • MTBF: 346,910 hours (39.6 years)
