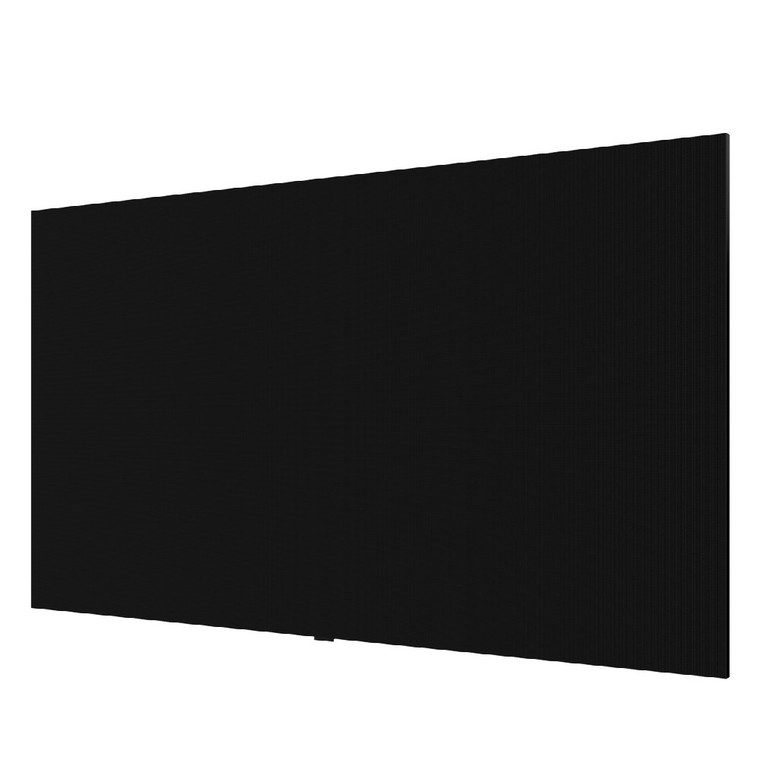

LG LASA136 136" MAGNIT Essential All-in-One LED Display

All-in-One Micro LED Display

* All images in this page are for illustrative purposes only.

Achieving Deep Black with COB Micro LED Technology

LASA136 applies COB Micro LED technology, in which micro-sized LED chips are directly bonded to the circuit board. Compared to conventional SMD-type LED structures, this design can help reduce light reflection and support improved contrast, providing a more immersiv

All-in-One LED Screen with Built-in Speaker

Experience the convenience of LG MAGNIT Essential LASA136, featuring a stunning 136-inch screen. This all-in-one package includes an embedded controller and built-in speaker, making setup a breeze. Dispelling the notion that LED displays are difficult and complex to install, it requires no controller connections or module configuration.

Easy Installation

The installation process of the LG MAGNIT Essential LASA136 is very simple. After securing three rear frames which are included in the kit, attach each LED modules to them. Lastly, plug in the one power cable. This simple installation saves time and labor, allowing users to easily manage the LED screen with ease.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the full front side. The LED module can be simply detached by the provided suction cup tool and replaced quickly without cabling.

* Full front service access available.
* Images are simulated for demonstration purposes and may differ from actual use.

Simple Power Connection

The LASA136 is operated with Single AC cable without the need for a complicated power connection and enables neat installation.

Versatile Installation with Dedicated Accessories

The product is offered with key components including the landscape wall mount and tools for installation. For added convenience, a dedicated stand is available as an option, allowing you to easily position the screen based on your installation needs. Additionally, the LASA136 supports seamless side-by-side installation in 1 × 2, 2 × 1, or 2 × 2 configurations, allowing up to four screens depending on the installation site and application.

* For multi-screen configuration, an expansion kit is required.
* The Expansion kit and stand accessories are sold separately; stand-type installations do not support multi-screen expansion.

DP Daisy Chain Capability

LASA136 supports DisplayPort (DP) daisy chain connectivity, allowing multiple displays to be connected through a single signal input from a media player for easy video wall setup. When used with the Video Wall feature, DP daisy chain enables configurations up to 4K resolution without requiring a separate signal distributor.

5,000 m Operational Capability

LASA136 is designed for operation at 5,000 m above sea level. To cope with the requirement of 5,000 m altitude application, the existing SMT type 20 W PSU mounted on the power board has been exchanged to new 45 W PSU that could comply with 5,000 m altitude operation requirement.

* Actual results or performance may vary depending on the use environment.

High Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player.

* The webOS Signage Developer site (http://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

Display Power Management (DPM)

DPM function makes LED screen enter Stand-by model in a certain period when there is no signal from input source device that helps power saving management.

Key Features

• All-in-One LED Screen
• Dedicated Accessories
• Built-in Speaker
• Easy Installation & Quick Maintenance

Technical Specifications

• Physical Parameter

  • Pitch Name: P1.56
  • Pixel Pitch (mm): 1.56
  • Pixel Configuration: COB
  • Module Resolution (W x H): 192 × 108
  • Module Dimensions (W x H, mm): 300 × 168.75
  • Screen Resolution (WxH): 1,920 × 1,080
  • Screen Dimension (W x H x D,mm): 3,005 × 1,692.5 × 32 (Thickest 62.05)
  • Screen Weight (kg): 111
  • No. of Modules per Screen (W x H): 10 × 10 (Total 100)
  • Screen Surface Area (㎡): 5.06
  • Physical Pixel Density (pixels/m²): 410,208
  • Flatness of Unit Case (mm): ±0.10
  • Cabinet Material: Aluminum
  • Service Access: Front
• Optical Parameter

  • Brightness (After Calibration): 600 (Typ.)
  • Color Temperature (K): 3,200-9,300
  • Visual Viewing Angle (Horizontal/Vertical): 160 × 160
  • Contrast Ratio (10 lux): 15,000 : 1 @ 10 lux
  • Processing Depth (bit): 16 (HDR10, HDR10 Pro)
  • Brightness Uniformity: 98%
  • Color Uniformity: ±0.010 Cx,Cy
• Electrical Parameter
  • Power Consumption (W/Screen, Max.): 1,200
  • Power Consumption (W/Screen, Avg.): 500
  • Power Consumption (W/m², Max.): 237
  • Heat Dissipation (BTU/h/Screen, Max.): 4,092
  • Heat Dissipation (BTU/h/Screen, Avg.): 1,706
  • Heat Dissipation (BTU/h/㎡, Max.): 809
  • Power Supply (V): 100 to 240
  • Frame Rate (Hz): 50 / 60
  • Refresh rate: 3,840
• Operation Conditions
  • Lifetime (Hours to Half Brightness): 150,000
  • Operating Temperature (°C): 0 to +40
  • Operating Humidity: 10-90% RH
  • IP rating Front / Rear: IP50 / IP30
• Sound
  • Speaker: Built-in (9W + 9W)
• Certification
  • Certification: CE, FCC, ETL, CB, CE-RED, EMC Class A
  • Fire Protection: BS476 Part 7 Class 1
• Environment
  •  RoHS, REACH
• Controller
  •  Embedded
• I/O port
  •  HDMI (3), DP In, DP Out, USB, LAN, RS-232C In/Out, IR, Digital Audio Out (SPDIF Optical)
• Wi-Fi / BT

  • Yes / Yes
• ETC
  • IR Remote (In-box), Side by Side : Yes
