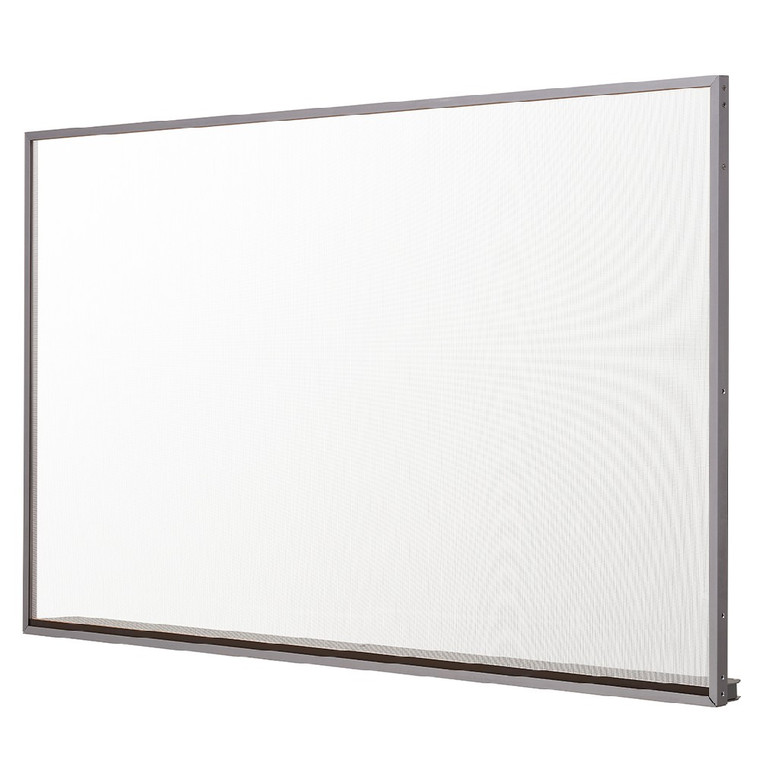

LG 55EW5P-M 55" Full HD Transparent OLED Signage

LG 55EW5P-M 55" Full HD Transparent OLED Signage

LG
SKU:
55EW5P-M

Pricing available upon request

Warranty : Local 3 years on site
Current Stock:
Description

See the Unseen, LG Transparent OLED

In the living room of a luxurious house with a high floor ocean view, furniture features an integrated transparent OLED display. The screen shows images of birds that blend seamlessly with the large tree visible behind the transparent display.

* All images in this page are for illustrative purposes only.

High Transparency

LG’s OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43%* transparency. It clearly displays objects behind the screen while overlaying relevant information right in front of them.

Transparent OLED screens are installed on both sides of the corridors in the museum. The screens display images of ancient statues along with information about them, with three 55EW5P-M stacked vertically to form the display.

* The Year of Measurement : 2022
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LG Display - internal testing

Sleek Elegance in Transparency

Connecting spaces and adding a sense of openness, this transparent OLED display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.

There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows images of trees along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive.

Expandable Design

Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.

A family is taking a photo with a transparent OLED wall made up of 3ⅹ5 55EW5P-M indoors. The father, standing in front of the wall, is taking a picture of the mother and child, who are standing behind the wall with animals and plants naturally displayed on the screen.

Convenience of Installation & Stability

This transparent OLED product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product’s rigidity. Additionally, M4 (screw type) holes, which are widely used globally, are incorporated into all rear corners to facilitate installation.

The metal borders on the bezel areas of the 55EW5P-M, along with the M4 (screw type) holes at each edge, are shown in an enlarged view.

* Screws are not supplied.

Usage Scenes

Experience the marvel of LG’s state-of-the-art Transparent OLED Signage, designed for use in various spaces. This transparent OLED product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.

"1. Used in the living room of a luxurious house 2. Used as a photo wall 3. Used as a wall at the airport lounge entrance 4. Used in a retail shop"

Key Features

  • Resolution : 1,920 × 1,080 (FHD)
  • Brightness : 200 / 600 nit (APL 100% / 25%, without Glass)
  • Transparency : 43% (Set)
  • Bezel Width : Even 12.2mm (T/R/L/B)

Technical Specifications

  • Panel
    • Screen Size: 55"
    • Panel Technology: OLED
    • Back Light Type: OLED
    • Aspect Ratio: 16 : 9
    • Native Resolution: 1,920 × 1,080 (FHD)
    • Refresh Rate: 120 Hz
    • Brightness: 200 / 600 nit (APL 100% / 25%, without Glass)
    • Contrast Ratio: 200,000 : 1
    • Dynamic CR: No
    • Color gamut: DCI 90%, BT709 110%
    • Viewing Angle (H x V): 178 × 178
    • Color Depth: 10 bit (R), 1.07 Billion Colors
    • Response Time: 0.1 ms (G to G), 8 ms (MPRT)
    • Surface Treatment (Haze): Haze 3% (Set), Hard Coating (5 H)
    • Lifetime: 30,000 Hrs (Typ.)
    • Operation Hours (Hours / Days): 18 / 7 (Moving Content Only)
    • Portrait / Landscape: Yes / Yes
    • Transparency (Typ.): 43% (Set)
    • QWP (Quarter Wave Plate): No
  • Mechanical Specification
    • Bezel Color: Transparent
    • Bezel Width: Even 12.2 mm (T/R/L/B)
    • Weight (Head): 14.1 kg (Head), 2.6 kg (Signage Box)
    • Packed Weight: 30.0 kg
    • Monitor Dimensions (W × H × D): 1,237.6 × 717.9 × 86.5 mm (Head), 381.6 × 217.6 × 73.6 mm (Signage Box)
    • Carton Dimensions (W × H × D): 1,368 × 245 × 957 mm
    • Protection Glass (Thickness): 3.0 mm
    • Protection Glass (Tempered / Chemical Strengthening): Chemical Strengthening
    • Protection Glass (Anti-Reflective): Yes (Film)
    • Protection Glass (Shatter-Proof): Yes
  • Environment Conditions
    • Operation Temperature: 0 to 40
    • Operation Humidity: 10%-80%
  • Power
    • Power Supply: AC 100-240 V~, 50/60 Hz
    • Power Type: Built-in Power
  • Power Consumption
    • Typ./Max.: 70 W (IEC 62087) / 230 W
    • DPM: 0.5 W
    • Power off: 0.5 W
    • BTU (British Thermal Unit): 239 BTU/Hr (Typ.), 785 BTU/Hr (Max.)
  • Standard Certification
    • Safety: CB / NRTL
    • EMC: FCC Class "A" / CE / KC
    • ErP: Yes
  • Software Compatibility
    • SuperSign CMS
    • SuperSign Control+
    • SuperSign Cloud
    • Mobile CMS
    • LG ConnectedCare
  • Connectivity
    • Input: HDMI (HDCP 2.2/1.4), DP (HDCP 1.3), RS-232C, RJ45 (LAN), IR (External IR Receiver), USB (2, USB 2.0 Type A), Daisy Chain (HDMI, DP)
    • Output: DP, Audio, RS-232C, RJ45 (LAN), IR (Sharing RS-232C), Daisy Chain (DP)
  • Language
    • English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
  • Special Feature
    • Conformal Coating (Power Board): Yes

What's Included

  • Remote Controller
  • Power Cord
  • QSG
  • IR Receiver
  • Regulation Book
  • Phone to RS-232C Gender
  • MCX / Harness Cables (3 m × 4 ea / 3 m × 2 ea for Connection between Panel and Signage Box)
  • DP Cable (2 m)
  • LAN Cable (1.5 m)
  • RS-232 Cable (4P-4P, 1.5 m)
  • LC Cable (VLC, 3 m)
  • Screw (M3 × L5.5 Black, 24 ea / M3 × L5.5 Silver, 8 ea / M3 × L6 Black, 14 ea)
  • Cover Shield Assy 1 ea
  • Cable Rubber 2 ea
  • Cable Cap Assy 2 ea
  • Tiling Bracket 2 ea
  • Signage Box Wing Bracket 2 ea
Additional Information
Product Type:
Display
Screen Size:
55"
Resolution:
Full HD - 1080p
