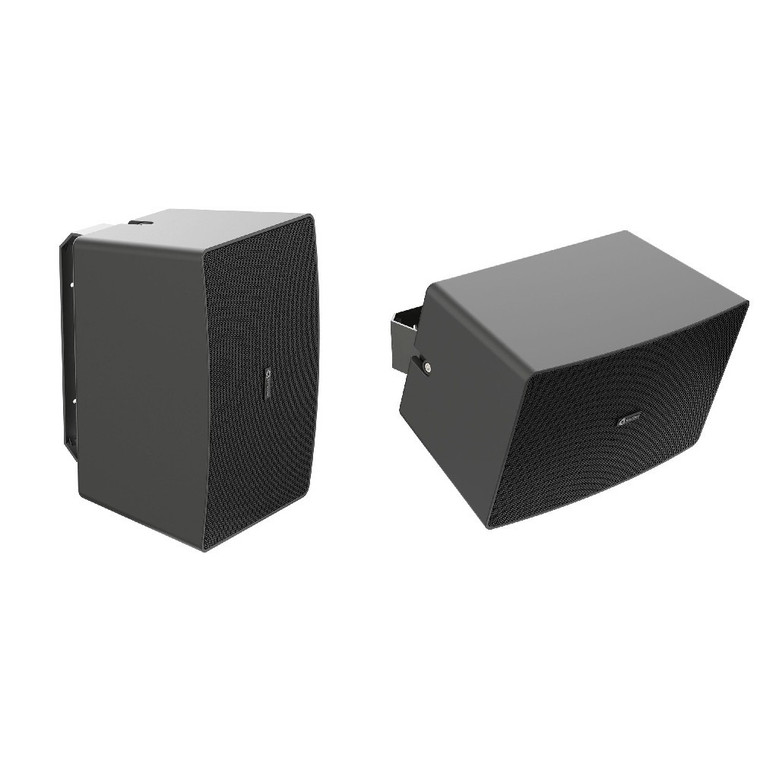

Kramer WM-8P 8", 2-Way, Passive Wall Mounted Speakers (Black)

The WM−8P wall mounted passive speaker deliver exceptional sound performance for commercial indoor applications. The WM−8P is a high−end 8” wall mounted passive speaker featuring exceptional sound, optimized for conferencing and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker is supplied with Kramer’s EasyMount mounting bracket for horizontal and vertical installations as well as for installation in corners, in addition the speaker has standard 75mm VESA mount threads for additional installation options. The speaker is available in both black & white colors.

•  Exceptional sound performance
•  Low–impedance (8Ω) / high–impedance (70V/100V)
•  Power ratings: 60W continuous / 80W peak
•  Sensitivity (1W@1m, free field): 90dB SPL
•  Maximum SPL (@1m): Continuous 108dB SPL / Peak 109dB SPL
•  UL1480A certified
•  Industrial design: hidden wall–mount bracket for horizontal, vertical and cornet installation, standard 75mm VESA mount threads, removable logo, available in black & white colors
•  Eco–friendly mono–material packaging

Key Features

• Superb sound with stylish design
• Low–impedance (8Ω) / high–impedance (70V/100V)
• Power handling: 60W continuous / 80W peak
• Nominal sensitivity: 90dB SPL
• Maximum SPL: Continuous 108dB SPL / Peak 109dB SPL
• UL1480A certified
• Available in black & white colors
• Eco–friendly packaging

Technical Specifications

• Audio

  • Driver:

    • LF Driver: 200 mm (8”) with polypropylene cone and rubber surround
    • HF Driver: 25 mm (1”) liquid cooled soft–dome tweeter
  • Frequency characteristics:

    • Frequency Range (-10dB): 60Hz–20kHz
    • Frequency Response (±3dB): 79Hz–20kHz
    • Dispersion angle: 124 deg. (1 kHz to 4 kHz)
  • Power handlings:

    • @ 8Ω Low impedance: 60W continuous / 80W peak
    • @ 100 V High impedance: 60W/30W/15W
    • @ 70 V High impedance: 60W/30W/15W/7.5W
  • Sound Pressure Level (SPL)

    • Sensitivity (1W@1m, free field): 90dB SPL
    • Maximum SPL: Continuous: 108dB SPL / Peak: 109dB SPL
• Mechanical

  • Installation:

    • Type: Surface mounted vertical, horizontal or in corners
    • Mounting: EasyMount bracket included, standard 75mm VESA mount threads
    • Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
    • Weight per single speaker (including mounting bracket): 5.1kg (11.3lbs)
  • Dimensions:

    • Dimensions without Bracket: 250mm x 222mm x 390mm / 9.9” x 8.8” / 15.4”
    • Dimensions with Bracket: 250mm x 306mm x 390mm / 9.9” x 12.1” / 15.4”
  • Shipping:

    • Shipping Dimensions (single unit): 422mm x 332mm x 480mm / 16.6" x 13.1" x 18.9"
    • Shipping dimensions (2 units in a Master box): 670mm x 430mm x 498mm / 26.4" x 17" x 19.6"
    • Shipping weight (single unit): 7kg / 15.5lbs
    • Shipping weight (2 units in a Master box): 15Kg / 33lbs
  • Material:

    • Grill: Powder Coated Steel, removable logo
    • Baffle: V–0 Flame Retardant
    • Bracket: Aluminium
  • Environmental:

    • Operating Temperature: –5° to +50°C (23° to 122°F)
    • Storage Temperature: –10° to +55°C (14° to 131°F)
    • Humidity: 30% to 85%, RHL non–condensing
• Regulatory

  • UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces
  • Environmental: RoHS, REACH, WEEE

What's Included

• 1 speaker (single unit)
• 1 EasyMount mounting bracket
• 4–pin pluggable Euroblock connector, 28–12AWG
• L–shaped Allen key (M6)
• Quick Start Guide
