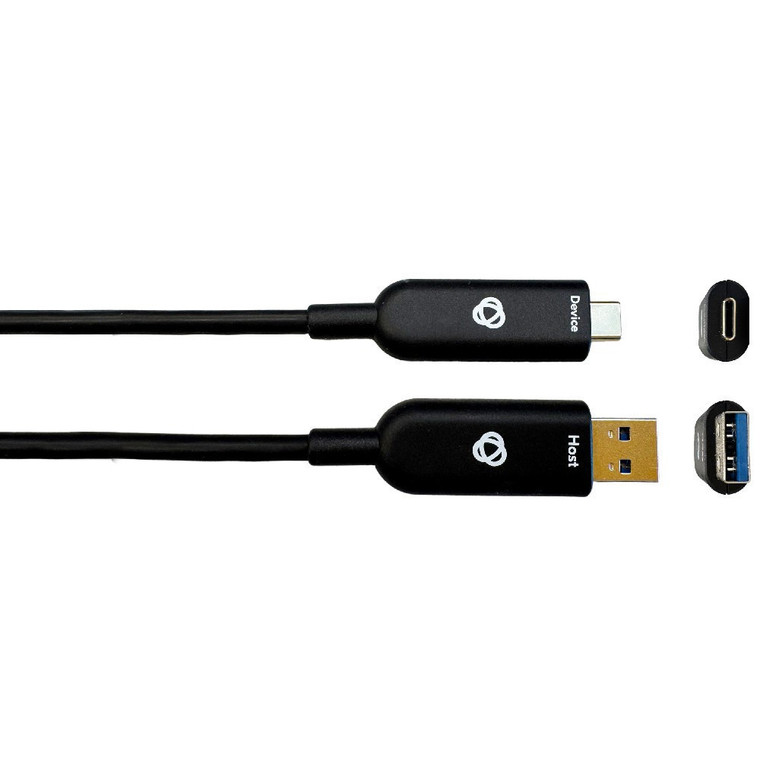

Kramer CLS-AOCU32/AC-98 Active AOC USB 3.2 Gen 2 LSHF (98ft)

CLS−AOCU32/AC is a USB−A(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable providing throughput of up to 10Gbps when used with a USB 3.2 host and device. CLS−AOCU32/AC is suitable for use with USB cameras‚ printers‚ webcams, speaker phones and more.

• True Plug–and–Play — No additional drivers needed.
• No External Power Needed — Pulls power from the USB source device.
• High Transfer Rates — Up to 10Gbps.
• USB Backward Compatibility — 1.1 (up to 50ft), 2.0, and 3.0.
• Hybrid Cable — Fiber and copper.
• Request that remote devices be self–powered
• Varied Selection of Lengths — Available in versions of 3 to 15m (10 to 50ft).

Note

• This cable is for data transfer only, not for charging or ALT Mode Signal.
• Use the included adapter to connect the cable to USB 3.0 Type−B devices

Key Features

• No external power needed
• Plug & play
• Available lengths — 7.6 to 50m (25 to 164ft)

Technical Specifications

• General

  • TYPE: USB 3.2 gen 2
  • MAX. DATA RATE: 10 Gbps
• Construction

  • Cable Type: 2 channel OM2 850 nm VCSEL array
  • Material: Bare Copper
• Physical

  • Connector A: USB 3.2 type–A male
  • Connector B: USB 3.2 type–C male
  • Long term crush resistance: 100N/100mm
  • Short term crush resistance: 500N/100mm
  • Short term tensile strength: 300N
  • Long term tensile strength: 150N
  • Cable Min Bending Radius: 20mm
• Jacet

  • Color: Black
  • Diameter : 4.8mm
    Consumption: ≤0.5W
• Environmental Conditions

  • Operating Temperature: –20 to 50°C
  • Storage Temperature: –40 to 70°C
• Regulatory Compliance (Standards Compliance)

  • Safety: CE/FCC
  • Flammability: CPR Eca rated, LSHF
  • Environmental: REACH, RoHS
