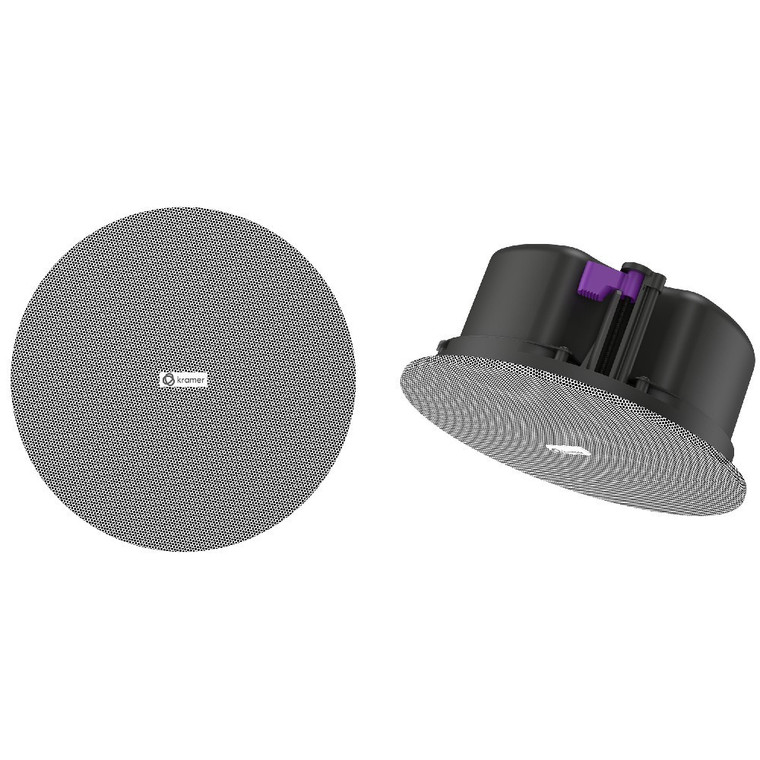

Kramer CL-8P 8", 2-Way Closed Back, Passive Ceiling Speaker (White/Black)

Kramer CL−8P – high performance, 8" two−way passive in−ceiling speaker. The CL−8P is a plenum rated high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker’s high performance and sound quality make it ideal for high−end areas with high ceilings such as auditoriums, hotel lobbies and boardrooms. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.

•  Premium sound with high SPL
•  Plenum rated UL2043 & UL1480A
•  Low–impedance (8Ω) / high–impedance (70V/100V)
•  Power ratings: 60W continuous / 90W peak
•  Sensitivity (1W@1m, free field): 90dB SPL
•  Maximum SPL (@1m): Continuous: 108dB SPL / Peak: 110dB SPL
•  Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
•  Eco–friendly mono–material packaging

Key Features

• 8”, 2–way coaxial high performance passive ceiling speaker
• Low–impedance (8Ω) / high–impedance (70V/100V)
• Power ratings: 60W continuous / 90W peak
• Nominal sensitivity: 90dB SPL
• Maximum SPL: Continuous 108dB SPL / Peak 110dB SPL
• Plenum rated: UL 2043, UL 1480A
• Black & white magnetic grills included in the box
• Front–access wiring for easy installation & troubleshooting
• Eco–friendly packaging

Technical Specifications

• Audio

  • Driver:

    • LF Driver: 200 mm (8 in) with polypropylene cone and rubber surround
    • HF Driver: 25 mm (1 in) liquid cooled soft–dome tweeter
  • Frequency characteristics:

    • Frequency Range (-10dB): 55Hz–20kHz
    • Frequency Response (±3dB): 70Hz–20kHz
    • Dispersion angle: 82 deg. conical dispersion (1 kHz to 4 kHz)
  • Power ratings:

    • @ 8Ω Low impedance: 60W continuous / 90W peak
    • @ 100 V High impedance: 60W / 30W / 15W
    • @ 70 V High impedance: 60W / 30W / 15W / 7.5W
  • Sound Pressure Level (SPL)

    • Sensitivity(1W@1m, free field): 90dB SPL
    • Maximum SPL: Continuous: 108dB SPL / Peak: 110dB SPL
• Mechanical

  • Installation:

    • Type: In–ceiling speaker installation with brackets and C–ring
    • Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
    • Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
    • Cutout: Cutout template included in the box
    • Weight per single speaker: 6.23kg (13.7lbs)
  • Dimensions:

    • Depth (ceiling clearance): 270mm / 10.7”
    • Back enclosure outer diameter: 295mm / 11.6”
    • Cutout diameter: 297mm / 11.7
    • Grill diameter: 327mm / 12.9
    • Single box dimensions (single unit): 430mm x 430mm x 338mm / 17" x 17" x 13.3"
    • Master box dimensions (single unit): 438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"
    • o Master box weight: 9.2KG / 20.3lbs
  • Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
  • Material:

    • Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo
    • Baffle: V–0 Flame Retardant
    • Back enclosure: Powder–coated steel
  • Environmental:

    • Operating Temperature: –5° to +50°C (23° to 122°F)
    • Storage Temperature: –10° to +55°C (14° to 131°F)
    • Humidity: 30% to 85%, RHL non–condensing
• Regulatory

  • Safety

    • UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards
    • UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces
  • Environmental: RoHS, REACH, WEEE

What's Included

• 1 speaker (single unit)
• 2 speakers are packed in a single master box
• Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
• 2 magnetic grills (1 white and 1 black per speaker)
• 4–pin pluggable Euroblock connector, 28–12AWG
• Cutout template
• Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
• Quick Start Guide
