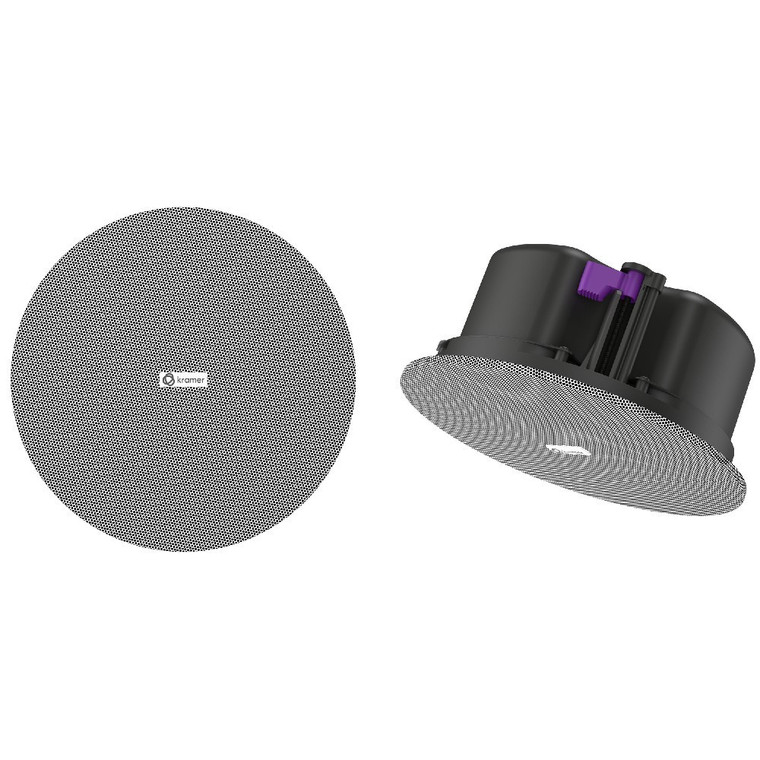

Kramer CL-6D 6", PoE Powered Dante Ceiling Speaker (White/Black)

Kramer’s CL−6D is a premium 6.5” in−ceiling PoE−powered Dante speaker, engineered to deliver exceptional audio performance and effortless integration in modern commercial spaces. Optimized for both speech intelligibility and high−quality background music, the CL−6D is perfectly suited for meeting rooms, auditoriums, retail spaces, and hospitality environments.

Equipped with a built−in amplifier, DSP, and mixer, the CL−6D supports two−channel mixing and advanced tuning capabilities including parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “Find Me” tone—easily configured through Kramer’s intuitive Speaker Utility software.

To streamline installation and servicing, the CL−6D features front−access wiring, a reset button, and is supplied with both black and white magnetic grilles to blend seamlessly into any ceiling. The CL−6D also supports remote management and control via Kramer Control or third−party systems using its robust API.

•  Exceptional sound performance
•  Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
•  Supports PoE++/PoE+/PoE (auto–negotiate)
•  Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
•  Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
•  Power handling: 10W continuous / 30W peak
•  Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
  Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
•  Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
  FCC+IC, BIS, RCM
  RoHS, REACH, WEEE
•  Industrial design: — wall–mounted, tool–less installation, available in black & white colors, removable logo
•  The CL–6D PoE–powered Dante in–ceiling speaker is a premium audio solution designed for professional networked audio installations. It delivers high–performance sound with excellent speech clarity and background music reproduction, making it ideal for meeting rooms, auditoriums, and commercial spaces where quality, flexibility, and clean ceiling integration are essential.

Key Features

• 6.5" 2–way Co–Axial, POE powered, Dante, in — ceiling speaker
• Superb sound with esthetic design
• Power handling: 10W continuous / 30W peek
• Nominal sensitivity (1W @ 1m free field): 88dB SPL
• Maximum SPL: Continuous 100dB SPL / Peak 103dB SPL
• Regulatory compliance: IEC62368(CB)/ CE LVD, UL62368–1, FCC/IC, BIS, RCM, RoHS, REACH, WEEE
• Black & white magnetic grills included in the box
• Front–access wiring for easy installation & troubleshooting
• Eco–friendly packaging

Technical Specifications

• Audio

  • Driver:

    • LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround
    • HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter
  • Frequency characteristics:

    • Frequency Range (-10dB): 70Hz–20kHz
    • Frequency Response (±3dB): 80Hz–18kHz
    • Dispersion angle: 106deg. (1 kHz to 4 kHz)
  • Power handlings:

    • PoE++: 10W continuous / 30W peak
    • PoE+: 10W continuous / 20W peak
    • PoE: 10W continuous / 10W peak
  • Sound Pressure Level (SPL)

    • Sensitivity (1W@1m, free field): 88dB SPL
    • Maximum SPL: PoE++: Continuous: 98dB / Peak: 103dB
    • Maximum SPL: PoE+: Continuous: 98dB / Peak: 101dB
    • Maximum SPL: PoE: Continuous: 98dB / Peak: 98dB
• Mechanical

  • Installation:

    • Type: In–ceiling speaker installation with brackets and C–ring
    • Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
    • Connectors: RJ–45, factory reset button
    • Cutout: Cutout template included in the box
    • Weight per single speaker: 3.5kg (7.7lbs)
  • Dimensions:

    • Depth (ceiling clearance): 220mm / 8.7”
    • Back enclosure outer diameter: 250mm / 9.9”
    • Cutout diameter: 252mm / 9.92”
    • Grill diameter: 282mm / 11.1”
  • Shipping:

    • Shipping dimensions (single unit): 400mm x 400mm x 298mm / 15.8" x 15.8" x 11.8"
    • Shipping dimensions (2 units in a Master box): 410mm x 410mm x 618mm / 16.2" x 16.2" x 24.4"
    • Shipping weight (single unit): 5.1Kg / 11.3lbs
    • Shipping weight (2 units in a Master box): 10.9Kg / 24lbs
  • Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
  • Material:

    • Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo
    • Baffle: V–0 Flame Retardant
    • Back enclosure: Powder–coated steel
  • Environmental:

    • Operating Temperature: –5° to +50°C (23° to 122°F)
    • Storage Temperature: –10° to +55°C (14° to 131°F)
    • Humidity: 30% to 85%, RHL non–condensing
• Regulatory

  • Safety

    • IEC 62368 (CB) / CE LVD: Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices
    • UL 62368-1: Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems
    • BIS (India): Safety, quality, and performance requirements specific to the Indian market
    • RCM: (Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand
  • EMI

    • FCC / IC: Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference
  • Environmental: RoHS, REACH, WEEE

What's Included

• 1 speaker (single unit)
• 2 speakers are packed in a single master box
• Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
• 2 magnetic grills (1 white and 1 black per speaker)
• 4–pin pluggable Euroblock connector, 28–12AWG
• Cutout template
• Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
• Quick Start Guide
