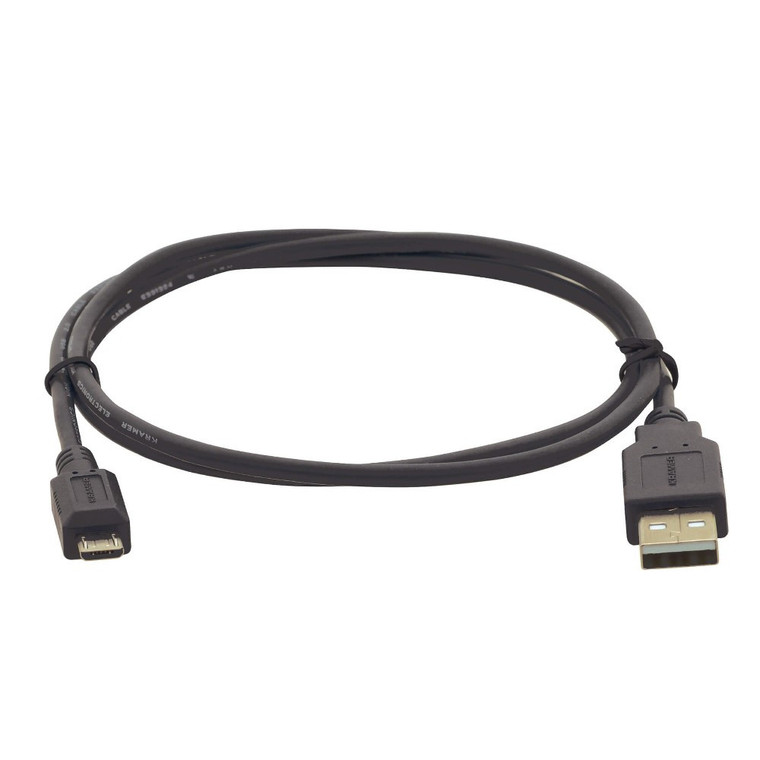

Kramer C-USB/MicroB-6 USB 2.0 A(M) to Micro-B(M) Male (6')

Kramer C-USB/MicroB-6 USB 2.0 A(M) to Micro-B(M) Male (6')

Kramer
SKU:
96-02156006

Pricing available upon request

Current Stock:
Description

Kramer's C−USB/MicroB cable is a high−speed USB 2.0 Type−A male to USB micro−B male cable used to connect computers and peripherals, such as smartphones, external hard drives and other digital devices for superior signal transfer of up to 480Mbps.

  •  USB Type–A Male to Micro–B Male.
  •  Transfer Rates up to 480Mbps.
  •  Suitable for Charging Cell Phones & PDAs.
  •  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
  •  Molded Strain Relief.
  •  Backward Compatibility — USB Specifications 1.0 and 1.1.
  •  RoHS Compliant.
  •  Varied Selection of Lengths — Available in versions of 3 to 15ft (0.9 to 4.6m).
  •  Note — The cable’s color can vary in some cases.

Technical Specifications

  • Overall
    • TYPE: USB 2.0 High speed
    • MAX. DATA RATE: 480Mbps
  • Physical
    • CONNECTOR A: USB type–micro B male
    • CONNECTOR B: USB type–A male
    • CONNECTOR PLATING: Nickel
    • CONDUCTORS: 3–6ft: 28AWG
    • CONDUCTORS: 10–15ft: 28/24AWG
    • OVERALL SHEATH DIAMETER: 3–6ft: 3.5mm, 10–15ft: 4.5mm
    • OUTER SHEATH COLOR: Gray
  • Regulatory Standards: 2011/65/EU
Additional Information
Product Type:
Cables & Connectors
