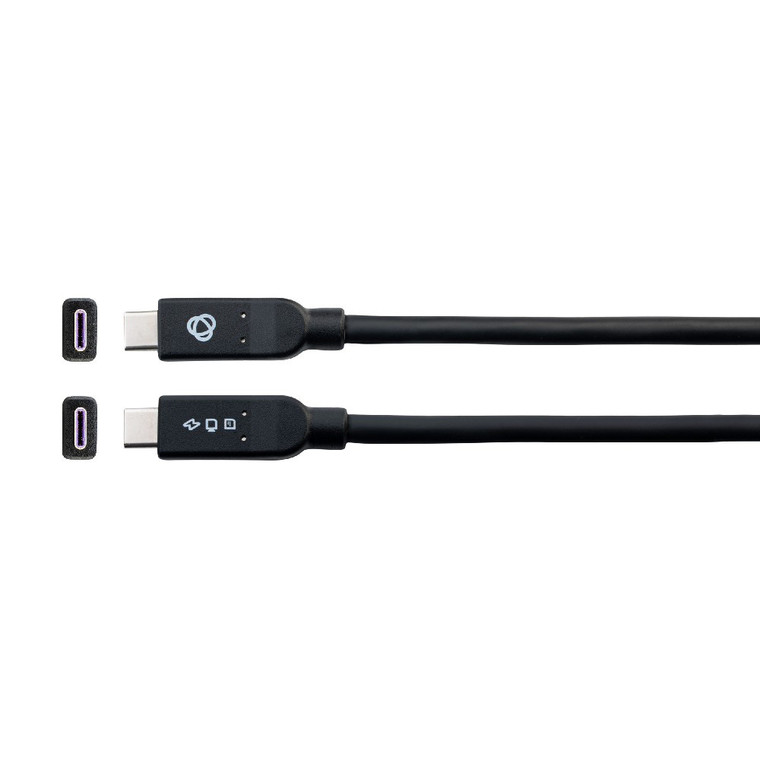

Kramer C-U32/MFF-10 Flexible Full Feature USB C 3.2 Passive Cable (10')

C−U32/MFF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable offering a whole new level of reliable connectivity thanks to Kramer's unique cable construction providing flexibility and our popular K−lock. Transfer Video 4K@60 4:4:4, data at incredible speeds (10G), high−rate charging (100W), − all with just one Passive cable. C−U32/MFF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.

•  Quality Construction — Micro coax wires, triple shielding that helps prevent electromagnetic interference and ensures reliable data communication.
•  Reversible USB Type–C Connector with integrated locking mechanism.
•  Video 4K@60 4:4:4 (DP Alt mode)
•  Transfer Rates — Up to 10Gbps, USB 3.2 Gen 2.
•  USB 2.0
•  100W power (5A, 20V).
•  PC, Mac & Mobile Compatible.
•  Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
•  USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0.
•  Logo on mold as orientation mark
•  RoHS REACH Compliant.

Key Features

• Length — 6–15ft (1.8–4.6m)
• Flexible
• K–Lock Connectors

Technical Specifications

• Overall

  • Type: USB 3.2 GEN–2
  • Video: 4K@60 4:4:4 (DP Alt Mode)
  • USB 3.2 Gen 2: 10Gbps
  • USB 2.0: 480Mbps
  • ETH Support: 10/100/1000 Mbps
• Physical

  • Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
  • Connector A Length x Width x Height: 23x12x8mm
  • Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
  • Connector B Length x Width x Height: 23x12x8mm
• Jacket

  • Material: PVC
  • Color: Black
  • Diameter: 5.7 ±0.2mm
  • Bending Radius: 34.2
• Electrical

  • Temperature Rating: 80°C
  • Voltage Rating: 30V
• Standards Compliance

  • Safety: CE
  • Flammability Rating: VW–1
