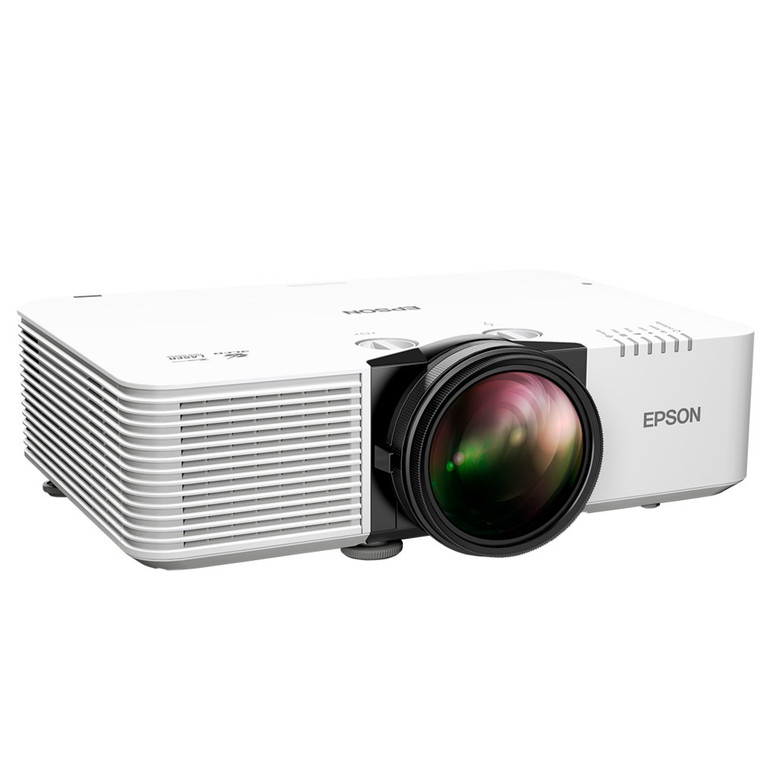

Epson EB-L690SU 6200lms WUXGA 3LCD Laser Projector

Epson EB-L690SU 6200lms WUXGA 3LCD Laser Projector

EPSON
SKU:
V11HB31080

Pricing available upon request

Warranty: 3yrs Parts & Labor Carry- In for Projector Main Unit
Current Stock:
Description

This incredibly compact projector delivers larger-than-life images with a short 0.79 – 1.36 throw ratio.

Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the EB-L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400". With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness and WUXGA resolution.

Simple to install, the EB-L690SU is easy to operate from start to finish. Built-in NFC functionality, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. Plus, it’s built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 6,200 lumens color/white brightness
  • WUXGA for clear, detailed images
  • 0.79 to 1.36 throw ratio and 1.7x optical zoom
  • Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
  • Lightweight, compact design allows for easy installation
  • AirPlay 2 supported

Ultra bright, true-to-life images

3-chip 3LCD technology and 6,200 lumens of equal color and white brightness

WUXGA resolution

Provides 1920 x 1200 resolution for vibrant, high-definition images

Large, versatile display options

Easily create a display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source and air filter in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Technical Specifications
  • Projection Technology: RGB liquid crystal shutter projection system (3LCD)
  • Brightness:
    • White Light Output (Normal/Eco): 6,200lm / 4,340lm
    • Colour Light Output: 6,200lm
    • Light Output (Center): 6700Im
  • Connectivity:
    • USB:
      • USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update Copy OSD Settings, Content Playback, ELPEC01, 5V/0.9A Power Supply
      • USB Type B: 1 (For Firmware Update, Copy OSD Settings)
    • Network:
      • Wired LAN: RJ45 x 1 (100Mbps)
      • Wireless LAN: Built-in
    • Digital Input:
      • HDMI: 2 (HDCP 2.3)
      • HDBaseT: 1 (HDCP 2.3)
    • Audio Output: Stereo Mini: 1
    • Control I/O: RS-232C: 1 (D-Sub 9pin)
    • Digital Output: HDMI Out: 1 (HDCP2.3, support only HDMI 1 input)
  • Contrast Ratio: Over 5,000,000:1
  • Screen Size (Projected Distance):
    • Standard Size: 80” diagonal 1.37m - 2.34m
    • Screen Size:
      • Zoom: Wide: 60” – 400” [1.02 – 6.95 m]
      • Zoom: Tele: 60” – 400” [1.75 – 11.89 m]
  • Geometric Correction:
    • Vertical/Horizontal Keystone: ±30° / ±30°
    • Projection Orientation: 360º Free
  • Operating Temperature:
    • Single Use:
      • Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
      • High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
      • 20% - 80% Humidity, No Condensation
    • Multi-projection Use:
      • Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
      • High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
      • 20% - 80% Humidity, No Condensation
  • Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)
  • Start-Up Period: 12 seconds (Epson Logo); Warm-up Period: 30 seconds
  • Quick Start-Up: Less than 8 seconds (Display)
  • Cool Down Period: Instant Off
  • Sound Output: 10 W Monaural
  • Direct Power On/Off: Yes
  • Weight: Approx. 8.9kg
  • Air Filter:
    • Type: Electrostatic Filter
    • Maintenance Cycle: 20,000 hours (Normal) / 30,000 hours (Extended)
  • Fan Noise (Normal / Eco): 34dB / 25dB
  • Specifications Projector:
    • Size - projected distance: 100” diagonal (wide: 9.3’ – tele: 19.8’)
    • Contrast Ratio: Absolute Black (Full White 1500 lm / Full Black 0 lm)
    • Projection Method: Front / rear / ceiling mount
    • Projection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrix
    • Pixel Number: 2,073,600 dots (1920 × 1080) × 3
    • Color Brightness - Color Light Output: 1500 lumens
    • Projected Output: HD, 2D, 3D, 1080p
    • White Brightness - White Light Output: 1500 lumens
    • Aspect Ratio: Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom Modes
    • Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPS
    • Native Resolution: Native 1080p (1920 × 1080)
    • Laser Type: Laser Diode 41.9 mW (Output)
    • Light Source Life: Up to 20,000 hours (ECO Mode)
  • Power:
    • Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz
    • Power Consumption (220-240V area):
      • LD On (Normal / Extended): 399W / 295W
      • Standby (Normal / Eco): 2.4 W / 0.4 W
  • Colour Mode: Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema
  • Dimension Excluding Feet (W x D x H): 440 x 304 x 122 mm
  • Miracast:
    • Certification: Wi-Fi CERTIFIED Miracast R2
    • Supported Codec: H.264 (AVC)
  • Wireless Specification (In-built wireless LAN and Screen Mirroring):
    • Supported Mode : Infrastructure, Simple AP (Wi-Fi Direct)
    • Supported Speed : IEEE 802.11a/b/g/n/ac/ax
    • Security Tyре:
      • Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
      • Supported EAP Type: PEAP, EAP-TLS
      • Simple AP (Wi-Fi Direct): WPA2-PSK (AES)
  • AirPlay 2:
    • Supported Codec: H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4
  • Specifications of Main Parts:
    • LCD:
      • Size: 0.67” (C2 Fine)
      • Driving Method: Poly-silicon TFT active matrix
      • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
      • Native Resolution: WUXGA
      • Aspect Ratio: 16:10
      • Pixel Arrangement: Cross stripe
    • Light Source:
      • Type: Laser Diode
      • Life (Normal / Extended): 20,000 hours / 30,000 hours
    • Projection Lens:
      • Type: Optical Zoom (Manual) / Focus (Manual) / Distortion (Manual)
      • F-Number: 1.7 – 2.1
      • Focal Length: 11.6 – 19.9 mm
      • Zoom Ratio: 1.0 - 1.7
      • Throw Ratio: 0.79 – 1.36
      • Lens Shift:
      • Vertical: ±50% (Manual)
      • Horizontal: ±20% (Manual)
Additional Information
ANSI (Lumens):
6200
Resolution:
WUXGA (1920 x 1200)
Product Type:
Projector
