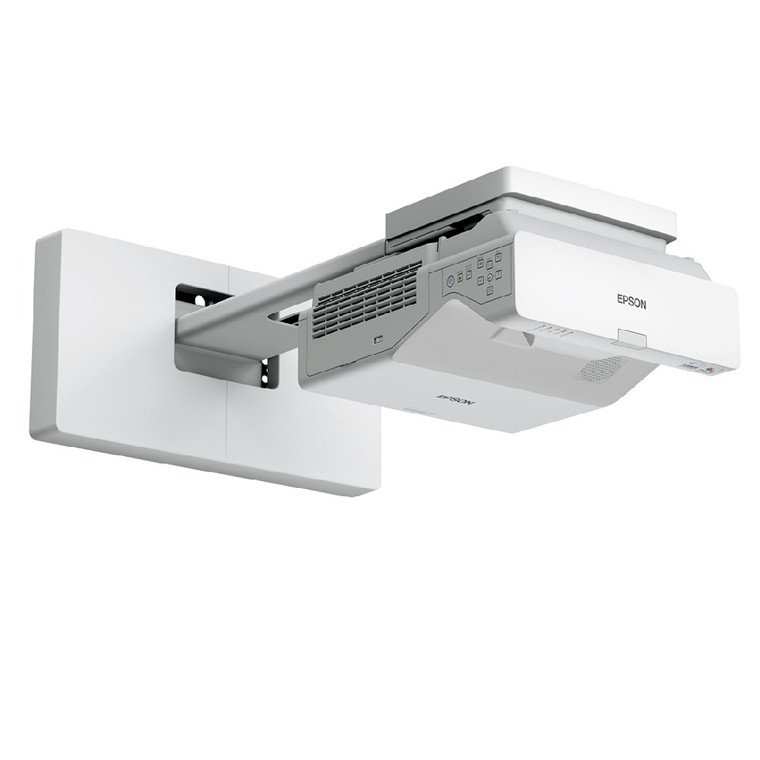

Epson EB-760W 4100lms Ultra Short Throw WXGA 3LCD Laser Projector

EPSON

Pricing available upon request

Warranty: 3yrs Parts & Labor Carry- In for Projector Main Unit
Current Stock:

Bright, easy-to-read, lamp-free classroom display projects up to 150"

The EB-760W will change the way you think about classroom displays. Delivering 4,100 lumens of color and white brightness and a high-quality 16:10 WXGA display up to 150"—more than three times larger than a 75" flat panel—this ultra short throw laser display encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, the EB-760W has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever. It also features wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices , as well as convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With the ability to display on virtually any wall, the feature-rich EB-760W allows teachers to maintain valuable whiteboard space while delivering stunning images that engage and inspire young learners.

  • 4,100 lumens of colour and white brightness
  • 16:10 WXGA resolution for images up to 150"
  • 20,000-hour laser lamp-free light source
  • Images more than three times larger than a 75" flat panel
  • Quick startup with laser light source
  • Supports 4:3 and widescreen 16:9 aspect ratios

Experience vivid and lifelike images

Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the projector is now more compact yet images remain bright and sharp. Thanks to the new heatsink design, the projector has efficient heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.

Large screen size - Easy to see

Creating a large screen environment that can be seen clearly in presentations and classes, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.

Connect up to 50 devices

Free downloadable Epson iProjection™ software makes it easy to cast up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs; with moderator feature, teachers never lose control of the displayed content.

Brilliantly rich, crystal-clear detail

With excellent contrast ratio of over 5,000,000:1, EB-760W delivers well-defined image to you - whether it is numbers, pictures, graphs or videos. It's all about seeing the little details in a better light.

Technical Specifications
  • Projection Technology: RGB liquid crystal shutter projection system
  • Brightness:
    • White Light Output (Normal / Extended): 4,100lm / 2,800lm
    • Colour Light Output: 4,100lm
    • Contrast Ratio: Over 5,000,000 : 1
  • Connectivity:
    • Analog Input:
      • Computer In: 2
      • Composite: 1
    • Digital Input: HDMI In: 3 (HDCP 2.3)
    • Analog Output: Computer Out: 1 (Share with Computer2)
    • Audio Input: Audio In: 3 (Stereo Mini)
    • Audio Output: Audio Out: 1 (Stereo Mini)
    • Mic I/O: Mic In: 1 (Stereo Mini)
    • Control I/O:
      • RS232C: 1 (D-sub 9pin)
      • Interactive Sync: 1 (Stereo Mini)
      • Finger Touch Unit Control: 1 (Mini DIN 8pin)
    • USB I/O
      • Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
      • Type B: 2 (For FW Update, Copy OSD Settings, USB Display)
    • Network I/O:
      • Wired LAN: 1 (RJ45)
      • Wireless LAN: 1 (Built-in and Optional)
  • Geometric Correction:
    • Vertical/Horizontal Keystone: ±3° / ±3°
    • Quick Corner: Yes (Auto / Manual)
  • Operating Temperature:
    • 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
    • Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation
  • Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
  • Start-Up Period: Less than 10 seconds (Epson Logo)
  • Quick Start-Up: Less than 5 seconds (Display)
  • Cool Down Period: Instant Off
  • Sound Output: 16W Mono
  • Air Filter:
    • Type: Electrostatic Filter
    • Maintenance Cycle (Normal / Extended) : 12,000 hours / 20,000 hours
  • Fan Noise (Normal / Eco): 37dB / 27dB
  • Dimension Excluding Feet (D x W x H): 395 x 356 x 133
  • Image:
    • Noise Reduction: Yes
    • Super-Resolution: Yes
    • Detail Enhancement: Yes
  • Wireless Specification (In-built wireless LAN and Screen Mirroring):
    • Supported Speed for Each mode :
      • Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
      • Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps, IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps
    • Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)
    • Supported Security Type: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ; Access Point (Wi-Fi Direct): WPA2-PSK (AES)
  • Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
  • Weight: Weight: Approx. 6kg
  • Power Consumption (220-240V):
    • Lamp (Normal / Extended): 263W / 199W
    • Standby: (Network On / Off): 2.0W / 0.5W
  • Direct Power On / Off: Yes
  • Specifications of Main Parts:
    • LCD:
      • Size: 0.59” (C2Fine)
      • Resolution: WXGA
    • Light Source:
      • Type: Laser Diode
      • Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs
    • Projection Lens:
      • Type: No Optical Zoom / Focus (Manual)
      • F-Number: 1.60
      • Focal Length: 3.7mm
      • Zoom Ratio: 1 – 1.35 (Digital Zoom)
      • Throw Ratio: 0.27 – 0.37
    • Screen Size (projected distance):
      • Standard: 74.3” screen 43.3cm
      • Zoom (Wide):
        • 53” to 132” (33.7 – 92.8 cm) @ 4:3
        • 58” to 146” (33.7 – 92.8cm) @ 16:9
        • 60” to 150” (33.7 – 92.8cm) @ 16:10
      • Zoom (Wide): (With Interactive Function)
        • 52.6” to 100” (33.7 – 60.1 cm) @ 16:9
        • 57.9” to 100” (33.7 – 68.7cm) @ 16:10
        • 59.5” to 100” (33.7 – 61.9cm) @ 4:3
ANSI (Lumens):
4100
Resolution:
WXGA (1280 x 800)
Product Type:
Projector
