Crestron 10.1" Tabletop Touch Screen, UC (Black)

Name: Crestron 10.1" Tabletop Touch Screen, UC (Black)
Brand: Crestron
SKU: TS-1080-UC-B
Price: 2408.9 SGD
Availability: InStock

Crestron

SKU:

TS-1080-UC-B

Pricing available upon request

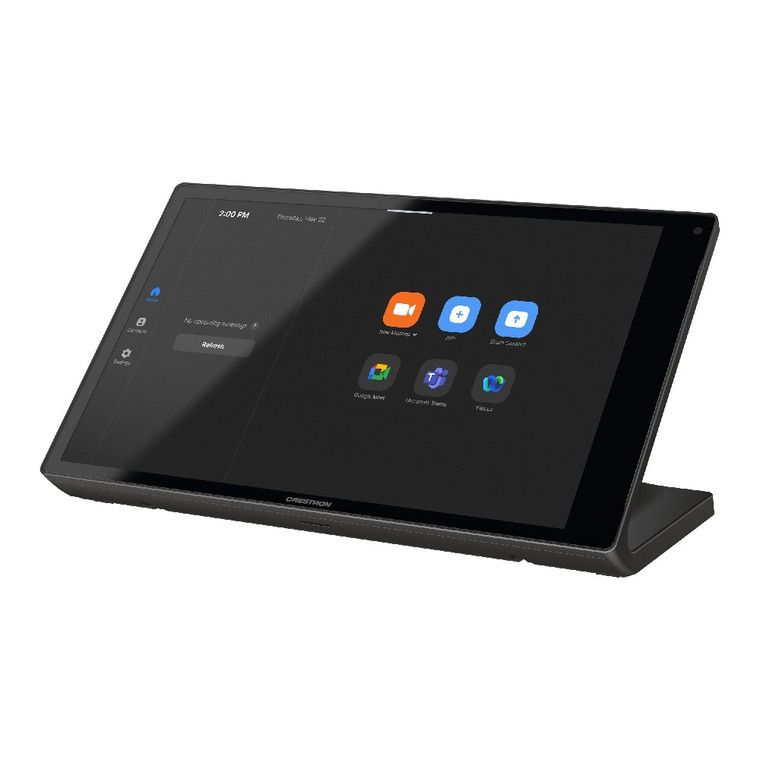

The Crestron TS‑1080‑UC‑B tabletop touch screen is ideal for enterprise applications and is designed to interface with a compatible UC engine system. The TS‑1080‑UC‑B features a 10.1 in. (257 mm) capacitive touch screen display. PoE and Wi‑Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.

UC System Compatibility

The TS‑1080‑UC‑B is capable of interfacing with a compatible UC system. The TS‑1080‑UC‑B integrates with Crestron Collab Compute to allow the user to control their meeting space, including lighting, shades, and other AV equipment.

BYOD Conferencing with Collab Compute (Coming Soon)

The TSW-1080-UC-B can connect to a laptop or personal device via USB-C connection for presentation and conferencing via Crestron Collab Compute. This conferencing solution shares screen content, presentation data, and gives access to a meeting room's cameras, microphones, and speakers.

Wired Connectivity

An Ethernet LAN connection is all that is required to wire the TS‑1080‑UC‑B, containing all control, video, and power signals within a single wire.

Power over Ethernet

Using PoE technology, the TS‑1080‑UC‑B gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches offer a total networking solution with built in PoE for multiple touch screens.

SCEP Certificate Management

80 Series touch screens support Simple Certificate Enrollment Protocol (SCEP) and Enrollment over Secure Transport (EST) to automate certificate enrollment, issuance, and renewal across enterprises. SCEP provides fast and standardized certificate authentication with simple renewal capabilities and can be managed through the console, local web UI, and XiO Cloud.

NOTE: The touch screen must run firmware version 1.6 or greater in order to use SCEP/EST certificate management.

Enterprise-Grade Security

Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, MDEP, TLS encryption, HTTPS connectivity, and Active Directory® service integration.

Key Features

Next generation Crestron tabletop touch screen featuring integrated UC system control
10.1 in. (257 mm) widescreen active-matrix color display and 1920x1200 WUXGA display resolution
Capacitive touch screen display
Built-in speakers
Built-in Bluetooth® communications beacon
Single wire Ethernet connection with PoE or PoE+ power
Wi-Fi® network connectivity
Enterprise grade security and authentication
Web or device-based configuration

Technical Specifications

Touch Screen Display
- Display Type: TFT active matrix color LCD
- Size: 10.1 in. (257 mm) diagonal
- Aspect Ratio: 16:10 WXGA
- Resolution: 1920 x 1200 pixels
- Brightness:
  - Minimum: 350 nits (cd/m2)
  - Maximum: 400 nits (cd/m2)
- Contrast: 1000:1
- Color Depth: 24 bit, 16.7M colors
- Illumination: Edgelit LED with auto brightness control
- Viewing Angle: ±80° horizontal, ±80° vertical
- Touch Screen: Projected capacitive, 5 point multitouch capable
Buttons
- Virtual Buttons: (5) Virtual buttons in collapsible universal tool bar, per button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down
- Reset: (1) Pin hole on rear for hardware reset
Graphics Engine: Crestron HTML5 multilanguage web browser1, multilanguage onscreen keyboard, screensaver, dual scalable streaming video window, native room scheduling applications, touch screen setup and diagnostics via web browser, cloud, or onscreen UI
Memory
- RAM: 8GB LPDDR4
- Storage: 40GB eMMC pSLC
- Maximum Project Size: 1000 MB
Wired Communications
- Ethernet: 1000Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE 802.3 at compliant
- USB: USB 2.0 host for room scheduling accessories
Wireless Communications
- Transceiver: IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5 GHz and 6GHz) 2x2 MIMO, static IP or dynamic IP via DHCP
- Security: 64 and 128-bit WEP, WPA, WPA2, WPA3, WPA Enterprise and WPA2 Enterprise
- Range: Up to 50 ft (15 m), subject to site-specific conditions
- Bluetooth® Hardware: BLE, BT5.2, 33 ft (10 m) typical range
- Radio Frequency (RF) signals:
  - Proximity sensor (Japan): 60.5 to 61 GHz
  - Proximity sensor (Worldwide): 61 to 61.5 GHz
Compatible Systems
- UC Systems: Crestron Collab Compute
Streaming Decoder
- Video Formats: H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
- Audio Formats: AAC Stereo
- Bitrates: Up to 25 Mbps (20 Mbps maximum recommended)
- Input Resolutions: Up to 3840x2160@30fps
- Protocol: RTSP
Audio
- Features: Built-in speakers
Connectors
- LAN PoE:
  - (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 1000BASE-TX Ethernet port
  - PoE+ PD port
  - Green and yellow LEDs indicate Ethernet port status
- USB:
  - (1) USB Type C connector, female
  - USB 2.0 host port
  - USB 3.1 DisplayPort Alt Mode (for future release)
Power
- PoE (Power over Ethernet):
  - - IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device)
    - Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP
    - Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1)
  - Note: Enabling the USB port requires use of an 802.3 at Type 2 PoE+ PSE.
Environmental
- Temperature: 32 to 104°F (0 to 40°C)
- Humidity: 10% to 95% RH (noncondensing)
- Heat Dissipation: 44 BTU/hr
Construction
- Housing: Die-cast housing, smooth black or white finish, glass with black or white surround
Dimensions
- Height: 5.96 in. (151 mm)
- Width: 9.68 in. (246 mm)
- Depth: 4.53 in. (115 mm)
Weight: 2.23 lb (1012 g)
