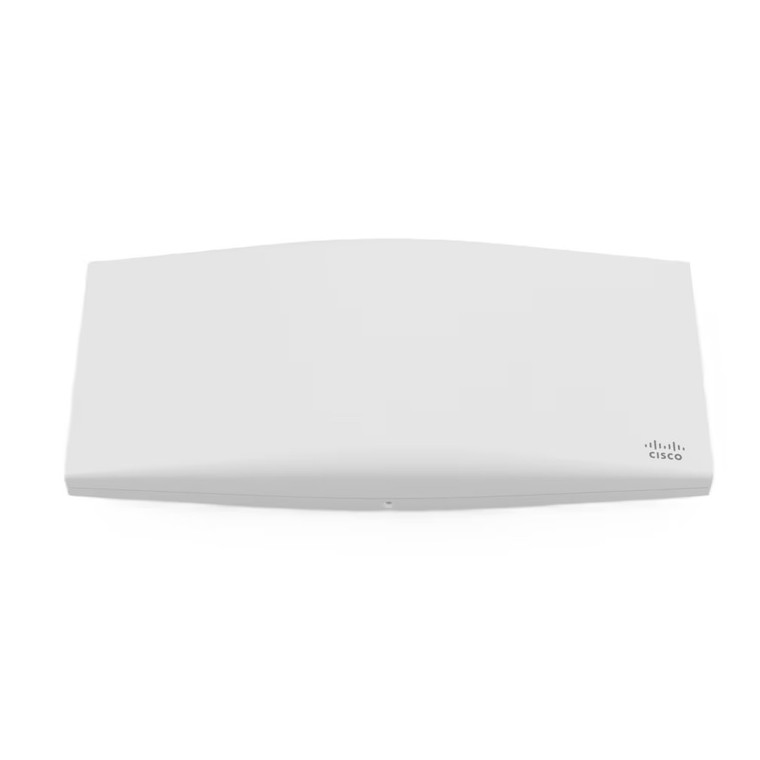

Cisco Meraki MR36 Wi-Fi 6 Indoor AP

MR36 and Meraki Cloud Management

Management of the MR36 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR36 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.

24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.

The MR36’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

Key Features

• 2x2:2 MU-MIMO 802.11ax
• 1.5* Gbps dual-radio aggregate frame rate
• 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
• Integrated Bluetooth Low Energy Beacon
• Integrated scanning radio
• Enhanced transmit power and receive sensitivity
• Integrated enterprise security and guest access
• Application-aware traffic shaping
• Optimized for voice and video
• Self-configuring, plug-and-play deployment
• Sleek design blends into office environments
• Full-time Wi-Fi location tracking via dedicated 3rd radio

Technical Specifications

• Radios

  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
  • Concurrent operation of all four radios
  • Supported frequency bands (country-specific restrictions apply):

    • 2.412 - 2.484 GHz
    • 5.150 - 5.250 GHz (UNII-1)
    • 5.250 - 5.350 GHZ (UNII-2A)
    • 5.490 - 5.730 GHz (UNII-2C)
    • 5.735 -5.825 GHz (UNII-3)
• Antenna: Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
• 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities

  • DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
  • 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
  • SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)
  • Note: *40MHz channels are supported only in the 5GHz band..
  • Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
  • Packet aggregation
• Power

  • Power over Ethernet: 37 - 57 V (802.3af compatible)
  • Alternative: 12 V DC input
  • Power consumption: 15W max (802.3af). Note: actual power consumption may vary depending on the AP usage.
  • Power over Ethernet injector and DC adapter sold separately
  • Note: Actual power consumption may vary depending on the AP usage.
• Interfaces

  • 1x 10/100/1000 BASE-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)
• Mounting

  • All standard mounting hardware included
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting
• Physical Security
  Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)
  Kensington lock hard point
  Concealed mount plate with anti-tamper cable bay
• Environment

  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
  • Operating altitude: Up to 40,000 feet (12,192 meters)
• Reliability: Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature
• Physical Dimensions

  • 9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate
  • Weight: 17.35 oz (492 g)
• Security

  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for Guest access and BYOD Posturing
• Quality of Service

  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping
• Mobility

  • PMK, OKC, & 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming
• Analytics

  • Embedded location analytics reporting and device tracking
  • Global L7 traffic analytics reporting per network, per device, & per application
• LED Indicators: 1 power/booting/firmware upgrade status
• Regulatory

  • RoHS
  • For additional country-specific regulatory information, please contact Meraki sales
• Warranty

  • Indoor access point
  • Lifetime hardware warranty with advanced replacement included
