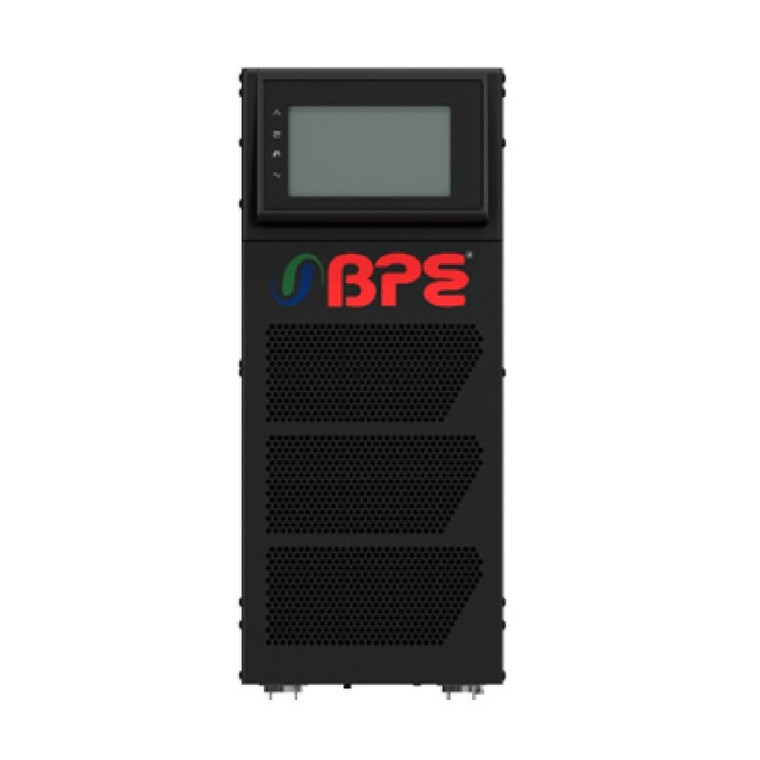

BPE 20kVA/20kW MFII Series Online UPS 3‐Phase Input, 1‐Phase Output, Internal Battery Tower UPS

High-performance True Online Double Conversion UPS with DSP-controlled pure sine wave output, IGBT-based inverter/rectifier, wide voltage & frequency range, ECO mode, battery optimization (16–20 units), generator compatibility, and optional parallel operation up to 4 units.

Key Features

• True Online Double Conversion with DSP Controlled Pure Sine Wave Design
•  IGBT based both Inverter & Rectifier
•  Input Current Harmonic: ≤ 3%
•  Optimization Battery Group, The Quantity of Battery: 16/18/20 Nos.
•  High Input Power Factor 0.99 w High Output Power Factor 1.0
•  Wide Input Voltage Range
•  Wide Input Frequency Range (50Hz: 45~55Hz / 60Hz: 54~66Hz)
•  Generator Compatibility & Phase Reversal Protection
•  Support Economic Operation (ECO) Mode
•  Self-Testing while UPS Startup
•  Optional Parallel up to 4 units
•  Static Bypass and Cold Start  Support 3/1 & 1/1 Operation

Technical Specifications

• Capacity: 20 kVA
• Input
  • Nominal Voltage: 380V / 400V / 415V AC (3P+N+PE)
  • Operating Voltage Range: 320V~480V AC Load Dependent
  • Operating Frequency Range: 50 / 60 Hz ± 10% (Auto Sensing)
  • Power Factor: ≥0.99
  • Bypass Voltage: -40% ~ +15% (Configurable)
  • Bypass Frequency: ±5% (Configurable)
  • ECO Range: Same as the Bypass, can be configured
  • Generator Input: Compatible
• Output
  • Rated Voltage: 220V / 230V / 240V AC L+N+PE (Configurable)
  • Power Factor: 1.0
  • Voltage Regulation: ±1%
  • Frequency: Auto Sensing 50 / 60 Hz ± 1~10% Sync Mode (Configurable), 50/60 Hz ± 0.5 Hz Battery Mode
  • Crest Factor: 3:1
  • Overload: ≤105% for Continuous, ≤125% for 10 Min, ≤150% for 60 Sec, ≥150% for 200ms
  • Harmonic Distortion (THDv): ≤1%
  • Efficiency: 94.0% Dual Conversion Mode, 99.0% ECO Mode
• Battery
  • Battery Voltage: 192V DC / 216V & 240V DC (Configurable)
  • Typical Recharge Time: 4-5 Hours to 90% of full Capacity
  • Charge Current: 18A
• System Features
  • IP Protection: IP20
  • Transfer Time: Zero
  • EPO / ECO / CVCF: Shutdown UPS Immediately / ECO and CVCF Mode can be Configurable
  • Alarm / Protection: Short Circuit, Input Under/Over Voltage, Over Temperature, Over Current, Over Load, DC BUS Under / Over Voltage and Battery low
  • LED Display: Line Mode, Backup Mode, ECO Mode, Bypass Mode, Battery Low, Overload & UPS Fault
  • LCD Display: Input Voltage, Input Frequency, Output Voltage, Frequency, Current; Load Percentage, Battery Voltage, Charging/Discharging/Current Temperature & Remaining Battery Backup Time, Load VA/W, Load and Battery Barograph
• Environmental
  • Temperature:
    • Operating: 0~50°C*
    • Storage: -15ºC ~ 60ºC
  • Humidity / Altitude: 0~95% RH Non-condensing / <1500 M
  • Noise: <58dBA
• Physical
  • Dimension WxDxH (mm): 250 x 580 x 655
  • Net Weight (Kg): 38
• Standards
  • Quality: ISO 90001, ISO 14001, ISO 27001, ISO 45001, ISO 50001, BIS, RoHS, FCC
  • Safety: IEC/EN62040-1; Conformity to IEC / EN
  • EMC / Performance: IEC/EN62040-2 ; IEC/EN62040-3, Complying to CE, Compliance to UL
• Communication Interface
  • Standard: RS-232
  • Optional: SNMP / ModBus / Dry Contact / USB / RS-485 / SMS Alert Card
  • Monitoring Software: NetAgent Utility v5.8 / View Power / UPSilon 2000 / Muser 4000
