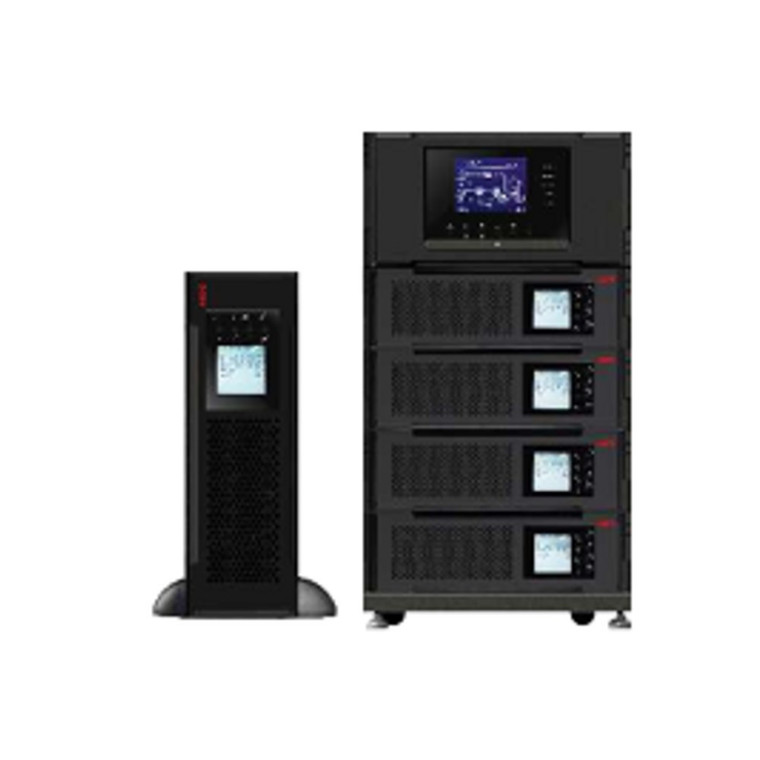

BPE 10kVA/10kW PS12 Series Online UPS 3‐Phase Input, 1‐Phase Output, Modular UPS

A modular UPS system with hot-swappable power modules (4kVA to 12kVA) and customizable 4-slot design. Features adjustable battery capacity, DSP technology for reliability, high input power factor , and supports 50/60Hz frequency conversion. Offers energy-saving ECO mode, emergency power off, generator compatibility, and high efficiency (up to 99.0%). Equipped with LCD displays for easy monitoring.

Key Features

• Modular UPS with hot-swappable power modules (4kVA–12kVA)
• Customizable 4-slot system with adjustable battery capacity  (32~40 Nos. of 12V Battery)
• DSP technology for high reliability and 0.99 input power factor
• Supports 50/60Hz frequency conversion and ECO mode for energy saving
• Emergency Power Off (EPO) and generator compatible
• High efficiency up to 96.8%, ECO mode up to 99.0%
• LCD displays on cabinet (7”) and modules (4”) for easy monitoring

Technical Specifications

• Phase: 3 Phase In / 1 Phase Out
• Capacity (kVA): 10
• Parallel Capability: Yes, 4 Module
• Input
  • Nominal Voltage: 380V / 400V / 415V AC (3Ph+N+PE)
  • Voltage Range: 190V ~ 520V AC Load Dependent
  • Frequency Range: 50-60Hz ± 20% (Auto Sensing)
  • Power Factor: ≥ 0.99
  • THDi: ≤ 3%
• Output
  • Output Voltage, Regulation: 220V / 230V / 240V AC (L+N) ± 1%
  • Power Factor: 1.0 for 4/6/10kVA module, 0.9 for 12kVA module
  • Frequency Range: Auto Sensing 50 / 60 Hz ± 1-10% Sync Mode (Configurable), 50 / 60 Hz ± 0.1Hz Battery Mode
  • Crest Factor: 3:1 (max.)
  • Harmonic Distortion: ≤ 1 %
  • Transfer Time: Zero
  • Waveform: Pure Sinewave
  • Overload: ≤ 125% for 10 min., ≤ 150% for 1 min., > 150% for 200 ms
  • Efficiency: 96.8% Dual Conversion Mode, 99% ECO Mode
• Battery Charger
  • Nominal Voltage: ± 192V (12V x 32 Nos.)
  • Battery Quantity: 32 ~ 40
  • Typical Recharge Time: 8 hours to 90% capacity
• Rack with UPS
  • IP Protection: IP20 / IP21 (Optional)
  • Alarm / Protection: Short Circuit, Input Under/Over Voltage, Over Temperature, Over Current, Over Load, DC Bus Under/Over Voltage, Battery Low
  • LED / LCD: UPS status, Load % / VA / W, Battery level, Input/Output voltage, Discharge timer, Fault Code
  • Display: 7 inch LCD Display on Rack, 4 inch LCD on each module
• Physical
  • Dimension: 615x418x132 (WxDxH mm) (3U)
  • Weight: 22 Kgs
• Standards
  • Quality: ISO 9001, ISO 14001, ISO 27001, ISO 50001, RoHS
  • Safety: IEC/EN62040-1
  • EMC / Performance: IEC/EN62040-2; IEC/EN62040-3, Complying to CE
• Environment
  • Temperature:
    • Operating: 0 ~ 50°C
    • Storage: -10 ~ 55°C
  • Humidity / Altitude: 0-95% RH Non-condensing / <1500 m
  • Noise: <55 dBA
• Communication
  • Standard: RS232
  • Optional: SNMP / ModBus / Dry Contact / USB / RS485
  • Monitoring Software: NetAgent Utility v5.8 / View Power / UPSilon 2000 / Muser 4000
