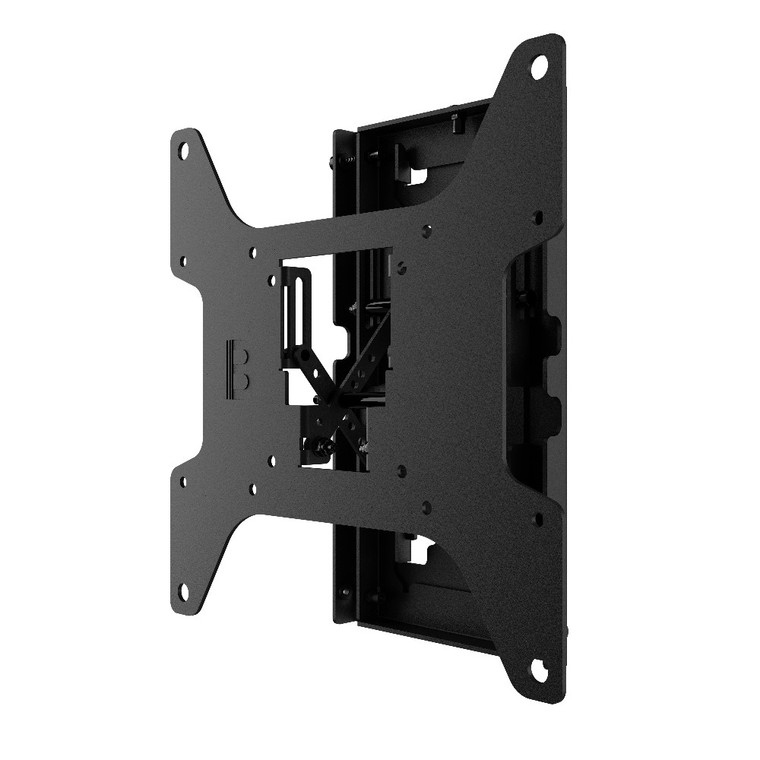

B-Tech Universal E-Paper Wall Mount with Tilt

For E-Paper displays up to 43"

The BT7611 is a wall mounting solution designed for E-Paper displays and standard flat screens up to 43". With a re-configurable ultra-slim design, the mount delivers a low profile installation while offering flexible tilt adjustment for precise screen positioning. Engineered with versatility in mind, the BT7611 can be configured in multiple ways: as a fixed flat-to-wall mount, a tool-less tilt mount, or as a compact pull-out mount for easy access and maintenance. The hook-on design and keyhole mounting ensures a quick installation, while locking screws provide additional security in public environments.

Key Features

• Ultra-slim design for discreet wall mounting
• Tool-less tilt for quick adjustment to the viewing angle or use the included micro-adjustment screw when more precision is needed
• Service position provides rear access to the display for maintenance
• Mounts displays in a portrait or landscape orientation
• Tilt screw can be removed for tool-less adjustment and fast access to service position.
• Re-configurable into a flat pull-out tool-less configuration
• Lockable at 0° or set to the desired tilt angle
• Can be installed to allow for upward or downward tilt
• Hook-on design for quick installation
• Compatible with B-Tech collars for pole-mounted installations
• 100% plastic free packaging

Technical Specifications

• Max recommended screen size: 43"
• Max load: 10kg
• VESA® fixings: up to 200 x 200
• Closed Dimensions W: 220mm H: 243mm D: 18.5mm
• Depth from wall: 18.5mm
• Tilt: 10° downward / 10° upward
