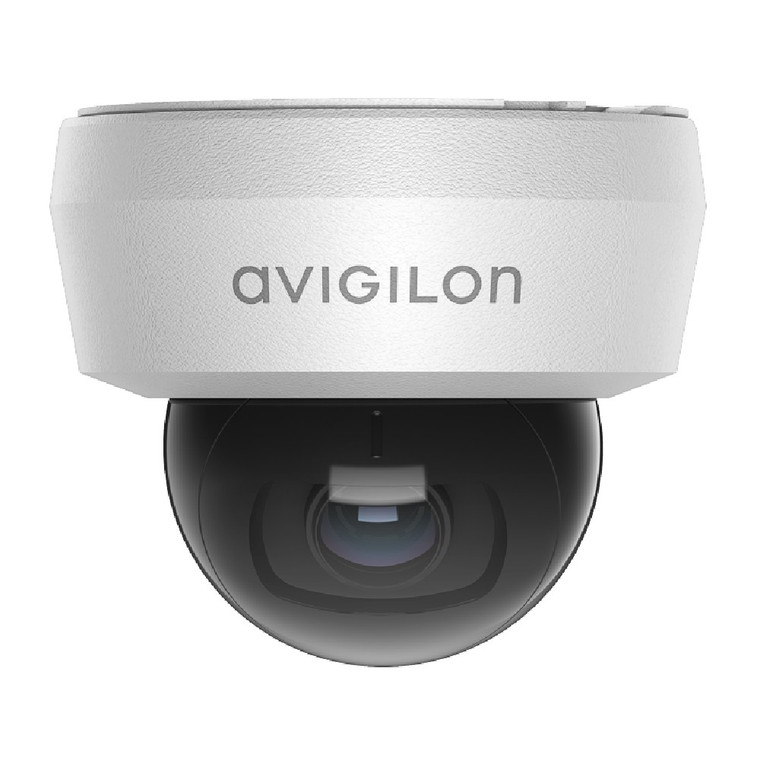

Motorola AVIGILON Alta H6 Mini Dome Camera

The Avigilon H6 Mini Dome brings an exceptional level of protection to indoor spaces with high-resolution images of up to 5 MP, a wide field of view and efficient bandwidth management in a compact design. This makes it an ideal solution for retail, commercial, hospitality and general indoor applications that require a small footprint, fixed lens camera without compromising on interior aesthetics.

Key Features

• INTELLIGENT MOTION, POWERED BY NEXTGENERATION VIDEO ANALYTICS - Empowers operators to respond faster to potentially critical events with Unusual Activity Detection and classified object motion detection built into the camera.
• H.265 & H.264 HDSM SMARTCODEC™ TECHNOLOGY - Optimizes compression levels for regions in a scene to help maximize bandwidth savings and keep internet connectivity costs down.
• OPTIONAL IR ILLUMINATORS - Offers excellent image detail in low-light settings.
• WIDE FIELD OF VIEW - Provides superior situational awareness of a facility with two fixed lens options available: 2.9 mm and 2.4 mm.
• WIDE DYNAMIC RANGE - Captures high-quality image details in scenes with both very bright and very dark areas.
• QUICK & EASY INSTALLATION - The camera's modular design allows it to snap into various indoor mounting options for fast and easy installations.
• ONVIF® COMPLIANT - ONVIF Profile S and T compliance enables easy integration with existing ONVIF infrastructures. Profile G compliance supports search, playback and retrieval of recordings on the edge.
• FIPS 140-2 COMPLIANT - Brings increased data security with FIPS-compliant cryptography enabled on cameras.

Technical Specifications

• Image performance: 5MP
• Image sensor: 1/2.8" progressive scan CMOS
• Active pixels (H x V): 2592 x 1944
• Aspect ratio: 4:3, 16:9
• Dynamic range
  • Indoor cameras: 100 dB (HDR off) upto 120 dB (HDR on)
  • Outdoor cameras: 83dB (HDR off) upto 120dB (HDR on)
• Max. frame rate (50 Hz/60 Hz): 15fps
• Streaming resolutions and bitrates: (H x V)

  • Maximum: 2592x1944** 15fps @ 3Mbps
  • High: 2592x1944** 15fps @ 3Mbps
  • Medium: 960x720 15fps @ 750Kbps
  • Low: 640x480 10fps @ 400Kbps
• Maximum concurrent streams per camera: 8
• Lens and IR: 5MP
• Lens
  • 2.95 mm, F/2.0 (D1 Indoor cameras)
  • 2.4 mm, F/2.1 (D2 Indoor cameras)
  • 2.99 mm, F/2.0 (Outdoor cameras)
• Angle of view (H x V)
  • D1: 100° x 75° (4:3)
  • D1: 100° x 54° (16:9)
  • D2: 123° x 93° (4:3)
  • D2: 123° x 69° (16:9)
• IR illumination (high power 850nm LEDs)
  • 33ft (10m) max. distance at 0 lux (Indoor models with IR)
  • 66ft (20m) max. distance at 0 lux (Outdoor models)
• Minimum illumination
  • With IR: 0 lux in color or monochrome mode
  • Without IR:
    • 0.01 lux in monochrome mode
    • 0.02 lux in color mode
• Image control
  • Image compression method: H.264
  • Electronic shutter control: Automatic
  • Iris control: Fixed
  • Day/Night control: Automatic, Manual
  • Flicker control: 50/60 Hz
  • White balance: Automatic
  • Privacy zones: Up to 64
• Network
  • Network: 100BASE-TX
  • Cabling Type: CAT5e minimum
  • Connector: RJ-45
  • ONVIF: ONVIF compliance, Profile S, Profile T, Profile G, and Profile M (www.onvif.org)
  • Security Password protection, HTTPS encryption, 802.1X port based authentication
  • Protocol: IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, HSTS
  • Streaming Protocols: WebRTC, RTP/RTSP/UDP, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP
  • Platform Compatibility: Avigilon Alta Video, Avigilon Unity ACC, 3rd party VMS
• Mechanical
  • Indoor cameras:
    • Surface mount: 2.9" x 2.9" x 2.5" (75mm × 75mm x 63mm)
    • In-ceiling mount: 3.6" x 3.6" 4.3" (91mm x 9mm x 108mm)
    • Pendant mount: 3.1" x 3.1" x 6.1" (80mm × 80mm x 155mm)
  • Outdoor cameras:
    • Surface mount: 4.2" x 4.2" x 3.2" (106mm x 106mm x 81mm)
    • In-ceiling mount: N/A
    • Pendant mount: 4.6" x 4.6" x 5.7" (121mm x 121mm x 146mm)
• Weight
  • Indoor cameras:
    • Surface mount: 0.37 lb (166g) (Camera only)
    • In-ceiling mount: 0.42 lb (190g) (Camera + mount)
    • Pendant mount: 0.48 lb (218g) (Camera + mount)
  • Outdoor cameras:
    • Surface mount: 0.93 lb (420g) (Camera only)
    • In-ceiling mount: N/A
    • Pendant mount: 1.35 lb (614g) (Camera + mount)
• Maximum Ceiling Thickness
  • Surface mount: N/A
  • In-ceiling mount: 1.75" (44.5 mm)
  • Pendant mount: N/A
• Dome Bubble: Polycarbonate
• Body: Polycarbonate and aluminum
• Housing
  • Surface mount: N/A
  • In-ceiling mount: In-ceiling mount
  • Pendant mount: Pendant mount
• Finish:
  • Plastic injection mold close to RAL9002 and Black;
  • Powdercoat Gray, AKZO Nobel JP301H;
  • Sand Grain Texture with Satin Sheen
• Electrical
  • PoE Power Consumption:
    • Indoor cameras: 6W Maximum
    • Outdoor cameras: 10W Maximum
  • PoE Power Source:
    • Indoor cameras: IEEE 802.3af, Class 2 compliant
    • Outdoor cameras: IEEE 802.3af, Class 3 compliant
  • IR illuminator behavior:
    • Indoor cameras:
      • IR illuminator turns off at temperatures above 117°F (47°C) .
      • IR illuminator operates at 50% between 143°F (45°C) and 117°F (47°C).
    • Outdoor cameras:
      • IR illuminator turns off at temperatures above 136°F (58°C) .
      • IR illuminator operates at 70% between 95°F (35°C) and 136°F (58°C).
  • External power connector: N/A
  • RTC Backup Battery: 3V manganese lithium
• Environmental
  • Operating temperature:
    • Indoor cameras: 14°F to 122°F (-10°C to +50°C)
    • Outdoor cameras: -4°F to +140°F (-20°C to +60°C)
  • Boot temperature:
    • Indoor cameras: 32°F to 122°F (0°C to +50°C)
    • Outdoor cameras: -4°F to +140°F (-20°C to +60°C)
  • Storage temperature:
    • Indoor cameras: -22°F to 158°F (-30°C to +70°C)
    • Outdoor cameras: 14°F to 140°F (-10°C to +60°C)
  • Humidity: 10 - 95% non-condensing
  • Environment:
    • Indoor cameras: Indoor environments/applications
    • Outdoor cameras: Outdoor environments/applications
