AVer HUB35-EXT35 4K BYOM Matrix Switcher Kit

AVer HUB35-EXT35 4K BYOM Matrix Switcher Kit

AVer
SKU:
61B35A0000AC

Pricing available upon request

Warranty: 5 Years
Current Stock:
Description

HUB35-EXT35

Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it's ideal for large and extra-large spaces.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Key Features

  • 4K Video Output
  • USB-C PD Powering
  • Supports Dual Screen Display
  • Supports Touch Panel Control
  • Supports Various Cameras
  • Multi-Camera AI Auto Switching
  • USB Extension with 4K Quality

Hardware Spec

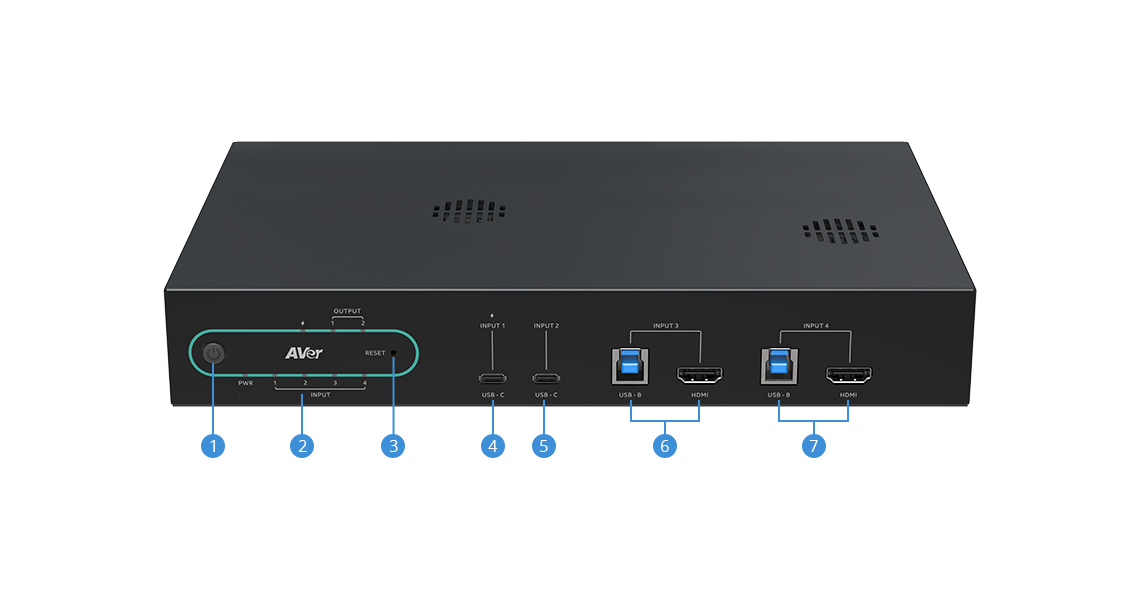

HUB35 Front

  1. Power Button
  2. LED Indicators
  3. Reset Button
  4. Input 1: USB Type-C 3.0 with Charging
  5. Input 2: USB Type-C 3.0
  6. Input 3: USB Type-B 3.2 Gen 1 / HDMI
  7. Input 4: USB Type-B 3.2 Gen 1 / HDMI

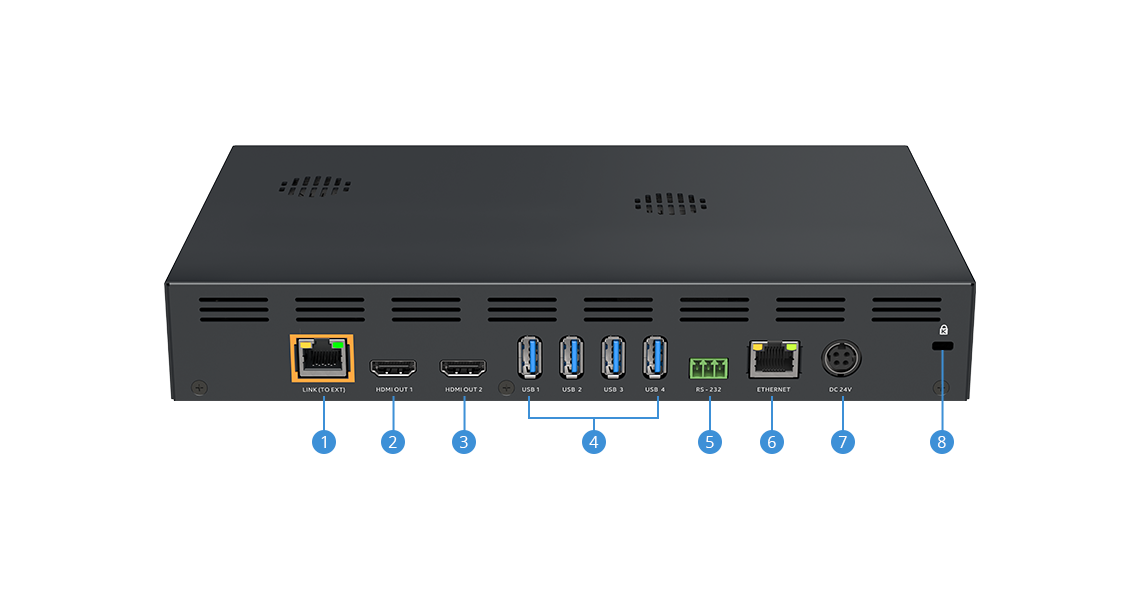

HUB35 Back

  1. Link to Extender
  2. HDMI Output 1
  3. HDMI Output 2
  4. USB Type-A 3.0
  5. RS-232
  6. RJ-45
  7. DC 24V
  8. Kensington Slot

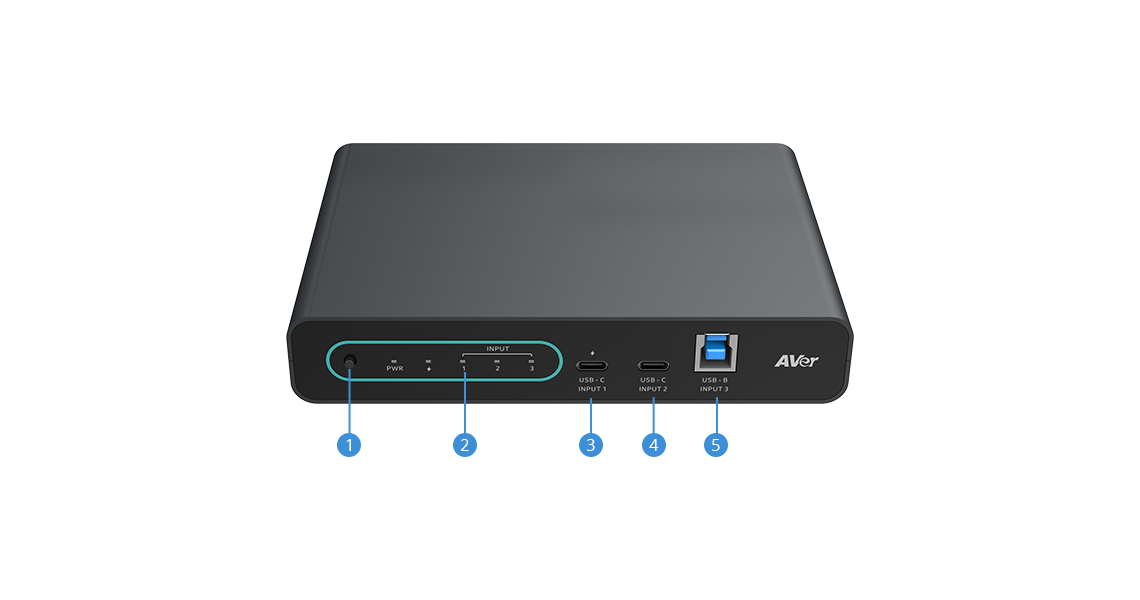

EXT35 Front

  1. Power Button
  2. LED Indicators
  3. Input 1: USB Type-C 3.0 with Charging
  4. Input 2: USB Type-C 3.0
  5. Input 3: USB Type-B 3.2 Gen 1

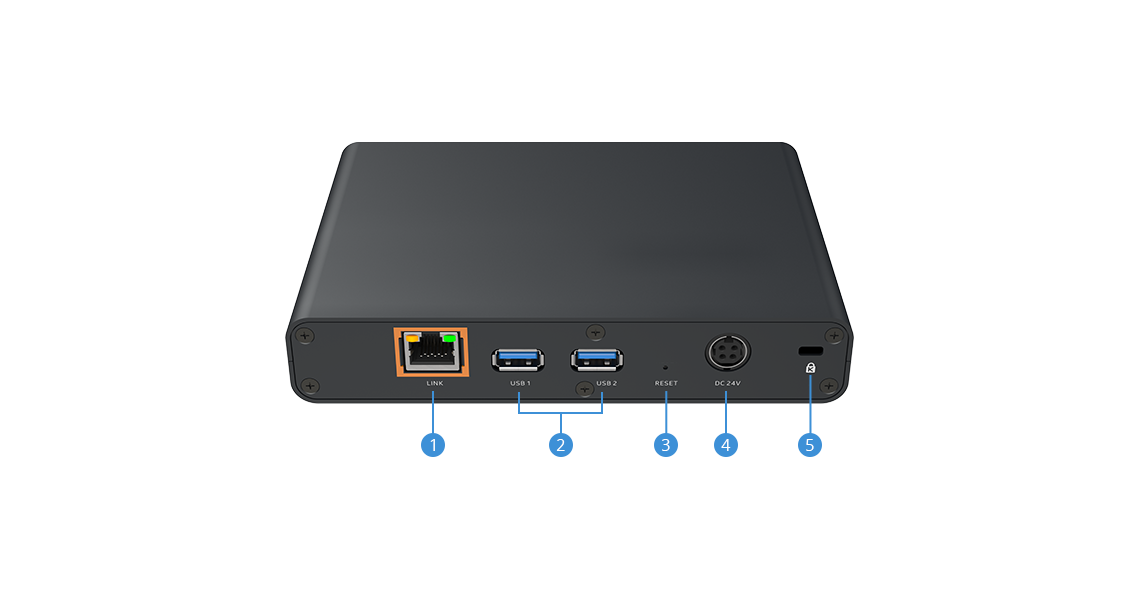

EXT35 Rear

  1. Link to Hub
  2. USB Type-A 3.0
  3. Reset Button
  4. DC 24V
  5. Kensington Slot

Technical Specifications

HUB35

  • Host
    • Input 1: USB Type-C x 1 (PD Charging, 100W Max.)
    • Input 2: USB Type-C x 1
    • Input 3: USB Type-B x 1; HDMI x 1
    • Input 4: USB Type-B x 1; HDMI x 1
    • USB-C Charging: Yes
  • USB Devices
    • Connections: USB Type-A x 4
    • USB Pass-Through: Yes
  • HDMI Display Outputs
    • Output: 2
    • HDMI Display Output Modes: 2
    • Audio HDMI: Yes
  • Video
    • Resolution: Up to 4K Ultra HD
    • Signal Type: DP Alt Mode, HDMI 2.0
    • HDMI CEC: Yes
    • Color Space: RGB, YCbCr
  • Audio
    • Transmit Mode: Audio Pass-Through from Input to Output
    • Format: HDMI 2.0
  • Control Interfaces
    • Ethernet: 1
    • RS-232: 1
    • Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
  • Link
    • Range: USB Type-C: 100 m (328 ft.)
    • Medium: CAT6a U/FTP
  • General
    • Power Requirement: AC 100 - 240V to DC 24V/7.5A
    • Power Consumption: 152W
    • Powering: External 180W Power Supply
    • Dimensions (W x H x D): 270.0 x 42.4 x 175.0 mm
    • Net Weight: 1.34 (±0.1) Kg
    • Security: Kensington Slot
    • Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80%
    • Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
    • Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
  • LED Indicators
    • Power/Status LED:
      • Orange: Standby
      • Green: Operating
      • Green (Flashing): Firmware Upgrading
    • USB Type-C Charging/Status LED: Green: Charging
    • Input 1/2/3/4: Green: Connected
    • Output 1/2: Green: Connected
  • Interfaces: USB Type-A x 4, USB Type-B x 2, USB Type-C x 2, HDMI In x 2, HDMI Out x 2, RJ-45 x 1, LINK (TO EXT) x 1, RS-232 x 1, Power Input x 1, Button x 2 (Power, Reset)

EXT35

  • Host
    • Input 1: USB Type-C x 1 (PD Charging, 60W Max.)
    • Input 2: USB Type-C x 1
    • Input 3: USB Type-B x 1
    • USB-C Charging: Yes
  • USB Devices: USB Type-A x 2
  • Video
    • Input Resolution: Up to 4K Ultra HD
    • Input Signal Type: DP Alt Mode, USB Type-B
    • Color Space: RGB, YCbCr
  • Audio
    • Transmit Mode: Audio Pass-Through from Input to Output
    • Format: HDMI 2.0
  • General
    • Power Requirement: AC 100 - 240V to DC 24V/7.5A
    • Power Consumption: 126W
    • Powering: External 180W Power Supply
    • Dimensions (W x H x D): 164.0 x 30.0 x 118.0 mm
    • Net Weight: 0.66 (±0.1) Kg
    • Security: Kensington Slot
    • Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80%
    • Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
    • Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
  • LED Indicators
    • Power/Status LED:
      • Orange: Standby
      • Green: Operating
      • Green (Flashing): Firmware Upgrading
    • USB Type-C Charging/Status LED: Green: Charging
    • Input 1/2/3: Green: Connected
  • Interfaces: USB Type-A x 2, USB Type-B x1, USB Type-C x 1, LINK x 1, Power Input x 1, Button x 2 (Power, Reset)

What's Included

HUB35

  • HUB35
  • Power Adapter
  • Power Cord
  • Cable Fixing Plate (x 2)
  • Cable Tie (x 18)
  • M3 x 5.0 mm Truss Head Screw (x 8)
  • M3 x 10 mm Screw (x 4)
  • Rack Mount Bracket (x 2)
  • USB 3.0 Type-A to Type-B Cable
  • USB 3.1 Type-C to Type-C Cable
  • Terminal Block 3-Pole
  • Quick Start Guide

EXT35

  • EXT35
  • Power Adapter
  • Power Cord
  • M3 x 5.0 mm Truss Head Screw (x 4)
  • M3 x 10 mm Screw (x 4)
  • Rack Mount Bracket (x 2)
  • USB 3.0 Type-A to Type-B Cable
  • USB 3.1 Type-C to Type-C Cable
Additional Information
Product Type:
Video Conferencing
