AVer HUB30 4K BYOM Matrix Switcher

HUB30 4K BYOM Matrix Switcher

Unlock collaboration with the AVer HUB30, a 4K BYOM Matrix Switcher. USB-C connectivity delivers 4K video, audio, and rapid power delivery. Crystal-clear visuals and smooth integration are easy with 4 inputs, dual-screen support, and intuitive touch control via the AVer CP10 G2. Dynamic, multi-angle video comes from dual AVer camera switching. A versatile solution compatible with AVer Pro AV Cameras and USB Conferencing Cameras for professional-grade performance anywhere.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Key Features

• 4K Video Output
• USB-C PD Powering
• Supports Dual Screen Display
• Supports Touch Panel Control
• Supports Various Cameras
• Multi-Camera AI Auto Switching
• Diverse Connection Ports

Hardware Spec

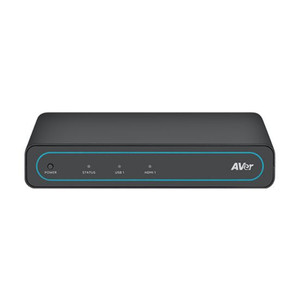

Front

1. Power Button
2. LED Indicators
3. Reset Button
4. Input 1: USB Type-C 3.0 with Charging
5. Input 2: USB Type-C 3.0
6. Input 3: USB Type-B 3.2 Gen 1 / HDMI
7. Input 4: USB Type-B 3.2 Gen 1 / HDMI

Back

1. HDMI Output 1
2. HDMI Output 2
3. USB Type-A 3.0
4. RS-232
5. RJ-45
6. DC 24V
7. Kensington Slot

Technical Specifications

• Host

  • Input 1: USB Type-C x 1 (PD Charging, 100W Max.)
  • Input 2: USB Type-C x 1
  • Input 3: USB Type-B x 1, HDMI x 1
  • Input 4: USB Type-B x 1, HDMI x 1
  • USB-C Charging: Yes
• USB Devices

  • Connections: USB Type-A x 4
  • USB Pass-Through: Yes
• HDMI Display Outputs

  • Output" 2
  • HDMI Display Output Modes: 2
  • Audio HDMI: Yes
• Video

  • Resolution: Up to 4K Ultra HD
  • Signal Type: DP Alt Mode, HDMI 2.0
  • HDMI CEC: Yes
  • Color Space: RGB, YCbCr
• Audio

  • Transmit Mode: Audio Pass-Through from Input to Output
  • Format: HDMI 2.0
• Control Interfaces

  • Ethernet: 1
  • RS-232: 1
  • Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
• General

  • Power Requirement: AC 100 - 240V to DC 24V/7.5A
  • Power Consumption: 150W
  • Powering: External 180W Power Supply
  • Dimensions (W x H x D): 270.0 x 42.4 x 175.0 mm
  • Net Weight: 1.34 (±0.1) Kg
  • Security: Kensington Slot
  • Operating Conditions

    • Temperature: 0 °C to +45 °C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature: -20 °C to +60 °C
    • Humidity: 20% to 95%
  • Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
• LED Indicators

  • Power/Status LED:

    • Orange: Standby
    • Green: Operating
    • Green (Flashing): Firmware Upgrading
  • USB Type-C Charging/Status LED: Green: Charging
  • Input 1/2/3/4: Green: Connected
  • Output 1/2: Green: Connected
• Interfaces

  • USB Type-A: 4
  • USB Type-B: 2
  • USB Type-C: 2
  • HDMI In: 2
  • HDMI Out: 2
  • RJ-45: 1
  • RS-232: 1
  • Power Input: 1
  • Button: 2 (Power, Reset)
