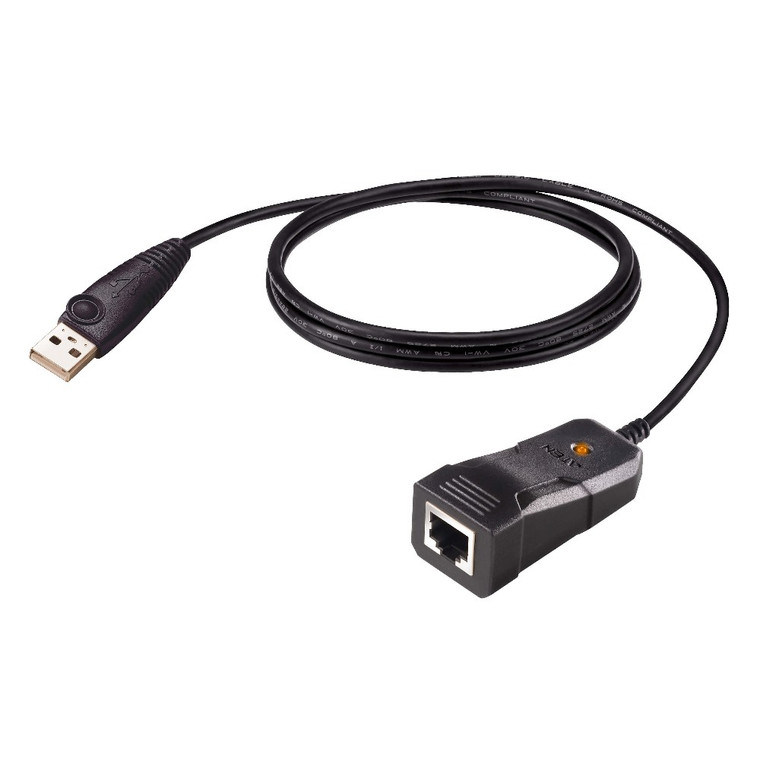

ATEN 1.2M USB to RJ-45 (RS-232) Console Adapter (FTDI)

The ATEN UC232BF is a one port USB-to-Serial console adapter. This high quality industrial adapter cable is designed to instantly add single RS-232 console port connectivity for networking appliances via a USB port. The adapter is powered via the USB connection.

The UC232BF is compatible with the USB 2.0 standard and works conveniently with desktops and laptops. It also can be used with large integrated computerbased systems or other specialized applications, such as point-of-sale applications, networking equipment, industrial automation systems, and native serial transfer instruments to offer a convenient connectivity solution. The UC232BF converter provides a plug & play solution. Windows, Mac and Linux drivers are included.

Key Features

• Converts a USB port to RJ-45 Console port (RS-232)
• Adopts FTDI chip for enhanced device compatibility
• Supports straight RJ-45 cables; no need to use Rolled RJ-45 cables for connecting Networking Routers / modems / network switches for configuration
• Fast COM port Transmission – up to 921.6 Kbps data transfer rate
• COM retention saves the assigned port settings for the device
• Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
• Plug-and-Play
• No external power supply needed

Technical Specifications

• Connectors

  • USB Port: 1 x USB Type A Male
  • Serial :1 x RJ-45 Female
• Data Rate: Up to 921.6Kbps
• Cable Length: 1.2m
• LEDs: Power Status
• Power Mode: Bus Powered
• USB Specification: USB compliant
• Environmental

  • Operating Temperature: 0–40˚C
  • Storage Temperature: -20–60˚C
  • Humidity: 0–80% RH, Non-condensing
• Physical Properties

  • Housing: Plastic
  • Weight: 0.06 kg ( 0.13 lb )
  • Dimensions: (L x W x H) 2.56 x 5.84 x 2.23 cm (1.01 x 2.3 x 0.88 in.)
• Power Consumption
  • DC5V:0.11W:1BTU/h
  • Note:

    • The measurement in Watts indicates the typical power consumption of the device with no external loading.
    • The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
• Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

What's Included

• 1x USB to RJ-45 (RS-232) Console Adapter (FTDI)
• 1x user instructions
