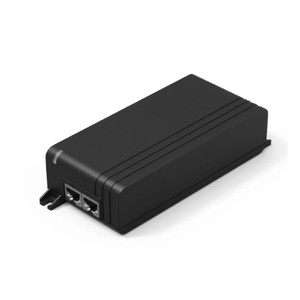

Verkada PoE++ (802.3bt-2018) Injector, GigE, High Surge Protection (UK)
VerkadaPricing available upon request
The ACC-POE-60WHS-UK High Surge 60W PoE++ Injector (UK Type G Plug) from Verkada is designed to power devices like the AC12 one-door controller. This injector converts a power cable input and an Ethernet input to a single PoE++ port to deliver up to 60W of PoE. It complies with 802.3bt type 4 standard and supports 1 Gb/s passthrough data rates. The unit is wall mountable for a flexible installation.
- Low-powered devices receive the power they require and nothing more
- Auto detection and protection of non-standard Ethernet terminals
- LED indicators for status
Key Features
- Delivers 60W Power over Ethernet
- 6kV, 100 kHz Transient Ring Wave
- Powers AC12 One-Door Controller
- UK Type G Plug
- 802.3bt Type 4 Standard
- 1 Gb/s Passthrough Data Rates
- Wall Mountable
Technical Specifications
- Inputs/Outputs
- 1x RJ45 PoE
- 1x RJ45
- Supported IEEE Standards: 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W)
- PoE Power: 56 VDC
- Surge Protection: Yes
- Input Power: 100 to 240 VAC, 50 / 60 Hz at 1.5 A
