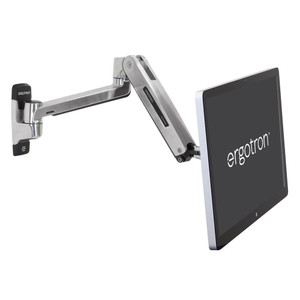

Ergotron LX Sit-Stand Wall Arm

Work at your best sitting or standing with the LX Sit-Stand Wall Arm. The wall attachment keeps your space open for reviewing drafts or for stand-up meetings. Easily place screens or digital signage where you need it for each project, and then reclaim even more work area by folding the arm and pushing it aside during a much-needed screen break. Keep your technology on lock with anchor holes in the base.

Key Features

• Comfortable fit Offers full monitor movement and improved ergonomics
• More motion 20" (51 cm) of height adjustment lets you work sitting or standing
• Saves space Folds within inches of the wall when not in use
• Large extension Screen can extend 33" (84 cm) with 62" (157 cm) of side-to-side motion
• Sleek build Streamlined look enhances your work area
• Quality design Built for thousands of movements by passing 10,000-cycle test
• For 7–25 lbs / 3.2–11.3 kg Monitors

Product Specifications

• Product Weight: 5.1 kg
• Shipping Weight: 6.2 kg
• Description: LX Sit-Stand Wall Mount LCD Arm (polished aluminum)
• Includes LX sit-stand arm, extension, wall-mount base, VESA brackets
• Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• * Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
• † Monitor tilts 70° up and 5° down
• ** Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
• Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)
• Base includes theft-deterrent anchor holes for cable locks
• Patented Constant Force™ motion technology provides premium ease-of-use display adjustment
• Cable management feature routes cables under the arm, out of the way
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Shipping Dimensions: 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm)
