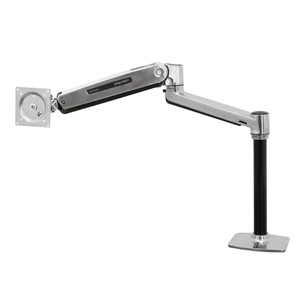

Ergotron LX Sit-Stand Desk Arm

Work at your best sitting or standing with the LX Sit-Stand Desk Arm. Easily place a screen where you need it for each project, and then reclaim more work area by folding the arm and pushing it aside during a screen break. Integrated cable management tucks cords under the arm and out of sight. Keep your technology on lock with anchor holes in the base.

Key Features

• Comfortable fit Offers full monitor movement and improved ergonomics
• More motion 20" (51 cm) of height adjustment lets you work sitting or standing
• Saves space Folds within inches of the back of your desk when not in use
• Large extension Screens extend out 33" (84 cm) with 62" (157 cm) of side-to-side motion
• Sleek build Streamlined look enhances your work area
• Quality design Built for thousands of movements by passing 10,000-cycle test
• For 7–25 lbs / 3.2–11.3 kg Monitors

Product Specifications

• Product Weight: 8.0 kg
• Shipping Weight: 9.3 kg
• Description: LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
• Includes LX sit-stand arm, extension, desk clamp base, grommet-mount base, 48 cm pole, VESA brackets, attachment hardware
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• * Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
• † Monitor tilts 70° up and 5° down
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
• Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (13–65 mm) wide and up to 2.5" (65 mm) thick
• Cable management clips on the under side of the arm route and hide cords
• NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
