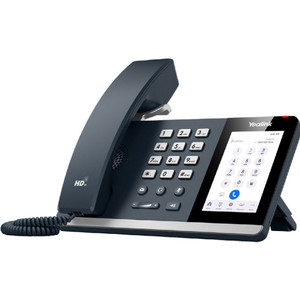

Yealink MP54 IP Desktop Phone for Microsoft Teams Room

Entry-level, cost-effective Android 9.0-powered Teams phone for common areas, and workers of co-working spacess

Yealink MP54 comes with the new powerful chipsets, which bring stability and sustainability to the device for optimizing the product performance and life cycle. Android 9.0 OS boosts the phone with fast response and fluent interactive experience for the users. Supporting dual system, MP54 also provides a secure and stable operating environment.

Certified as Zoom Phone Appliance, Yealink MP54 provides both native Zoom Phone and Meetings capabilities, enabling users to collaborate effortlessly with premium video (receive only), audio, and whiteboard features.

With the built-in native Zoom application, the MP54 presents friendly and intuitive UI on its responsive 4-inch touch screen, through which the meeting schedules can be synchronized and managed via simple taps, making collaboration more efficient and easeful than ever.

Featuring a 4-inch capacitive touch screen, hard-key buttons with dedicated Teams button for intuitive call controls, the MP54 with embedded Teams application enables voice communications through the desk device with ease for offices workers and users in common areas or front desks.

The MP54 combines the professional hardware and software technology to deliver crystal clear voice communications. Thanks to Yealink Optima HD voice, Noise Proof Technology, and the hardware of full-duplex hands-free speakerphone with AEC and HAC handset, MP54 delivers excellent audio experience in every calling.

The MP54 offers deployment flexibility with multiple choices of deployment tools from Microsoft, Yealink and Unify square as well as auto-provision, making it simple to deploy, administer, upgrade and maintain.

For customers with extra connectivity requirements, the MP54 supports Bluetooth and Wi-Fi via dongle BT41/WF50. The USB port also allows for connecting with wireless/wired USB headsets to meet the needs of users with large call volumes or headset preference.

Key Features:

• Android 9.0 OS

• 4-inch capacitive touch screen

• Optimal HD audio, Yealink Noise Proof Technology

• Supports Office 365, and upgradability of device applications to Teams or SFB

• Magnet handset

• Bluetooth via optional dongle BT41

• Wi-Fi via optional dongle WF50

• 1 USB Type A port, supports USB Headset

• Dual-port Gigabit Ethernet, PoE support
• Supports Microsoft/Yealink/U2 device management platforms

• Hybrid mode (Teams version only)

Technical Specifications

• Audio Features

  • HD voice: HD handset, HD speaker
  • Hearing aid compatible (HAC) handset, magnet handset
  • Yealink Noise Proof Technology
  • Audio codec: SILK, Opus, G.722, G.722.1, G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC
• Phone Features

  • Call controls

    • Call hold/Call mute/Call transfer/Call forward
    • Visual voicemail
    • Synchronized call logs
  • Meeting call controls

    • Mute/unmute, hold/resume
    • Hang up
    • Add/remove participant
    • Join Skype for Business meetings
  • Phone lock/unlock
  • Emergency calls
  • Hot desking
  • Accessibility
  • Screensaver, Power saving
  • Common Area Phone (CAP)
  • Teams & SIP Hybrid mode (Teams version only)
• Display and Indicator

  • LCD screen:

    • 4” 480×800 capacitive touch screen
    • Two-angle [45°/ 53°] stand
    • 5 points multi-touch surface
  • Dark theme
  • Multi-language user interface
  • Full keyboard
  • LED for call and message waiting indication
  • Dedicated Teams button
  • Presence integration
• Interface

  • Dual-port Gigabit Ethernet
  • Power over Ethernet (IEEE 802.3af), class 3
  • 1 x USB Type A port

    • USB headsets
    • Bluetooth headset (Only with Dongle)
    • Wi-Fi (Only with Dongle)
  • 1 x Security lock port
  • 1 x RJ9 (4P4C) handset port
  • 1 x RJ9 (4P4C) headset port
• Management

  • Configuration: Browser/Phone/Auto Provisioning and Device Management Platform
  • Provisioning priority management
  • Auto Provisioning via Activation Code
  • Yealink Redirection and Provisioning Service (RPS)
  • QoE (Monitoring Reports)
  • Reset to factory, reboot
  • Package tracing export, system log
  • Screenshot via URL
  • Supports Microsoft Device Management Platform
  • Supports Yealink Device Management Platform (YMDP/YMCS)
  • Supports Unify Square Device Management Platform
• Network and Security

  • IPv4/IPv6
  • IP Assignment: Static/DHCP
  • Proxy mode
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • Transport Layer Security (TLS)
  • HTTPS certificate manager
  • Digest authentication using MD5/MD5-sess
  • IEEE802.1X
• Other Physical Features

  • Color: Classic Grey
  • External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
  • USB output currency: 5V 500mA
  • Power consumption (PSU): 1.7w~5.3w
  • Power consumption (PoE): 2.3W~6.8W
  • Dimension (W*D*H*T): 223mm*159mm*127mm*36mm
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C (+14~122°F)
