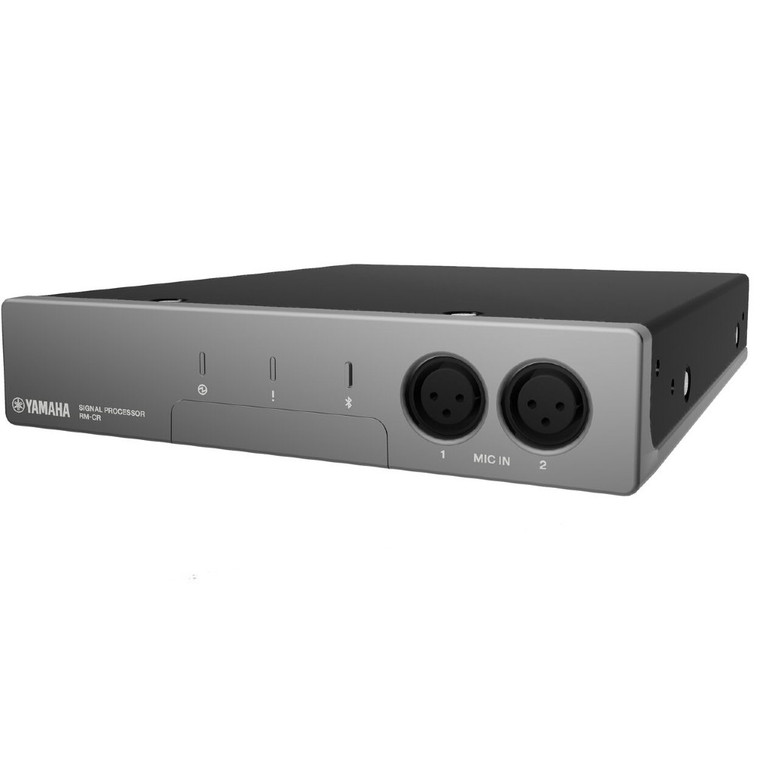

Yamaha RM-CR ADECIA PoE Powered Remote Conference Processor with Dante

System integrators and installers looking for a complete and customized communication solution for meeting spaces and classroom audio will be impressed with the Yamaha RM-CR Remote Conference Processor, the heart of the ADECIA system that helps overcome challenges with implementation, configuration, and room acoustics.

The RM-CR is compatible with a variety of optional components, including RM-CG ceiling array microphones, VXL-16P line-array PoE+ powered speakers, and the SWR2311P-10G PoE network switch. The processor automatically recognizes connected devices on the network for audio routing and implements Auto Tuning functions that automatically measures and provides the optimum sound setting for the environment.

The Auto Mixer automatically optimizes the mixing balance of audio input via Dante. Additional I/O is available from USB, VoIP, analog, and Bluetooth. The RM-CR provides standard network audio support for Dante with all compatible devices being connected with a single network cable.

• Signal Processor for ADECIA
• Customizable Communications Solutions
• Connect to Two RM-CG Ceiling Mics
• Connect to Two VXL1B-16P Speakers
• Compatible with SWR2311P-10G PoE Switch
• Auto Tuning for Optimization of Sound
• Auto Mixing for Optimal Balance of Audio
• USB, VoIP, Analog, Bluetooth I/O
• Network Audio Support for Dante

Technical Specifications

• General
  • Dimensions: W 215 mm × D 260 mm × H 44 mm
  • Weight: 1.6 kg
  • Supported OS: Windows 11, Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), macOS 12, macOS 11, macOS 10.15
  • Power Requirements: PoE+ (IEEE 802.3at, LLDP), DC 48 V
  • Maximum Power Consumption: 15.0 W
  • Connector: RJ 45, USB, XLR balanced, RCA
  • In Operation
    • Temperature: 0 - 40 ℃
    • Humidity: 30 % - 90 % (No condensation)
  • Storage
    • Temperature: -20 - 60 ℃
    • Humidity: 20 % - 90 % (No condensation)
  • Indicator: Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator (x3)
  • Mount: Table Mount, Rack Mount
  • Maximum Device Number with RM-CR: -
  • Accessories: Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-micro B) 1 m (3.3 ft), 4x Rubber foot, Access Panel
  • Options: RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit
• Network Specifications
  • Ether1: Dante Audio/Dante Control, Remote Control, WebUI, PoE+
  • Ether2/Ether3: Corporate Network, Remote Control, SIP, Web UI
  • USB: USB2.0, Network Class, Web UI, Fixed IP
• Audio Specifications
  • Audio I/O
    • Dante: 16in/16out
    • USB: USB2.0, Audio Class 1.0, Input: 2 ch, Output: 2 ch @48 kHz
    • Mic Input: XLR balanced, Input 2 ch
    • AUX: RCA unbalanced (Line Level), Input: 2 ch, Output: 2 ch
    • Speaker Out: RCA unbalanced (Line Level), Output: 2 ch
  • Bluetooth
    • Version: Bluetooth 4.2
    • Supported Profiles: HFP (1.6), A2DP, AVRCP
    • Supported Codec: CVSD, SBC, mSBC
    • Wireless Output: Class2
    • Maximum Communication Distance: 10 m (32.8 ft) (no obstacles)
    • Radio Frequency (Operational Frequency): 2,402 to 2,480 MHz
    • Maximum Output Power (EIRP): 4.0 dBm (2.5 mW)
  • SIP
    • Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured)
    • Call Bridging: Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user
    • Codecs: G.711, G.722HD, G.729ab, G.726
    • DTMF Support: RTP event, SIP in-band, SIP info package
    • Security: SRTP Support (RFC 1889), IETF SIP support(RFC 3261 and companion RFCs)
  • Sampling Rate: 48 kHz
  • Bit Depth: 24 bit
  • Latency: 8 [ms] (Dante In to USB Out, includes signal processing)
  • Frequency Response: 20 Hz – 20 kHz
