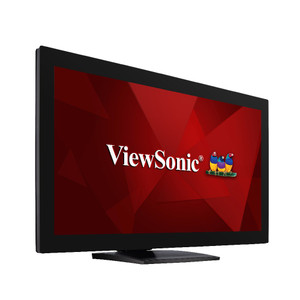

ViewSonic TD2230 22" Full HD 1080p 10-point Touch Screen Monitor

ViewSonic
SKU:
TD2230
|
UPC:
766907842418

Pricing available upon request

Warranty: LCD Monitors 3 years on-site for parts & labour
Current Stock:

ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear IPS-type technology, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group occasions. It is ideally used as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment in addition to kids gaming at home.
It features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience for multiple users.

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for multi-user interactive environments such as home entertainment, office, education, and commercial use.


SuperClear: Stunning Colour Performance & Wide-angle Viewing

Enjoy accurate and vivid colours with consistent levels of brightness no matter the vantage point. With SuperClear IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

SuperClear®

A frameless bezel design creates a seamless touch-control experience

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. A frameless bezel design makes touch more effortless, perfect for multi-user experiences, encouraging interactive enjoyment with seamless contact.

Ergonomic design

Full HD 1080p Resolution

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

1080p Full HD

HDMI, DisplayPort and VGA inputs for flexible connectivity

HDMI, DisplayPort and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.


Cross-platform Compatibility

Cross compatibility with a wide range of operating systems include Windows 10/11, and certain Android and Linux versions.
*The OS compatibility may vary depending upon the device, the OS modification, the apps and the surrounding user environment. Users are advised to check and confirm compatibility with their devices before making any purchase.


USB 3.0 port high speed connectivity

ViewSonic’s TD2230 features a USB 3.0 hub that delivers easy connectivity to a diverse range of storage devices, peripherals, and high-definition electronics. It provides a faster recharge rate, data transfer rate and versatile data transmission capabilities.


Bookstand design with flexible angle adjustment and flat stand use

A bookstand design allows the screen to be tilted and adjusted from 20 to 70 degrees, or rest flat on a desk or table.
With a stable design, the monitor is ready to use and can be placed without worry of damage from being placed on an unclean surface. This makes it well suited for a variety of scenarios: at home, in school or at the office.


7H Scratch-resistant surface hardness

The TD2230 touch display is constructed with a 7H hardness protective glass which provides increased scratch-protection to deliver the safest and most durable touch experience. It prevents any heavy damage caused by fingers, nails, or styluses during touch operations, making it ideal for use in kiosks, educational settings, or other public environments.


Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.


ViewMode: Superior colour Rendering & Intuitive Settings

ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications.

ViewMode

Dual Integrated Stereo Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.


VESA-mountable Design

It features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. With an easily detachable base, it’s easy to mount the display on its new stand or attach it to a wall mount.

VESA


Key Features

  • SuperClear® technology
  • Frameless design
  • Full HD 1080p resolution
  • HDMI, DisplayPort and VGA inputs
  • Supports Windows® 7/8/10 and selected Linux

Technical Specifications

  • Display
    • Display Size (in.): 22
    • Viewable Area (in.): 21.5
    • Panel Type: IPS Technology
    • Resolution: 1920 x 1080
    • Resolution Type: FHD (Full HD)
    • Static Contrast Ratio: 1,000:1 (typ)
    • Dynamic Contrast Ratio: 50M:1
    • Light Source: LED
    • Brightness: 200 cd/m² (typ)
    • Colors: 16.7M
    • Color Space Support: 8 bit (6 bit + Hi-FRC)
    • Aspect Ratio: 16:9
    • Response Time (Typical GTG): 5ms
    • Response Time (GTG w/OD): 5ms
    • Viewing Angles: 178º horizontal, 178º vertical
    • Backlight Life (Hours): 30000 Hrs (Min)
    • Curvature: Flat
    • Refresh Rate (Hz): 60
    • Blue Light Filter: Yes
    • Flicker-Free: Yes
    • Color Gamut: NTSC: 77% size (Typ)
    • sRGB: 108% size (Typ)
    • Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    • Touch Screen: Projected Capacitive, 10-point multi-touch
    • Surface Treatment: Glossy, Hard Coating (7H)
    • Cover Glass Thickness: 0.7mm
  • Compatibility
    • PC Resolution (max): 1920x1080
    • Mac® Resolution (max): 1920x1080
    • PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    • Mac® Resolution (min): 1920x1080
  • Connector
    • VGA: 1
    • USB 3.2 Type A Down Stream: 2
    • USB 3.2 Type B Up Stream: 1
    • 3.5mm Audio In: 1
    • 3.5mm Audio Out: 1
    • HDMI 1.4: 1
    • DisplayPort: 1
    • Power in: DC Socket (Center Positive)
  • Audio
    • Internal Speakers: 3Watts x2
  • Power
    • Eco Mode (Conserve): 16 w/ ES 7.0; 19 w/o ES 7.0W
    • Eco Mode (optimized): 18 w/ ES 7.0; 22 w/o ES 7.0W
    • Consumption (typical): 20 w/ ES 7.0; 25 w/o ES 7.0W
    • Consumption (max): 25 w/ ES 7.0; 28 w/o ES 7.0W
    • Voltage: AC 100-240V
    • Stand-by: 0.5W
    • Power Supply: External Power Adaptor
  • Additional Hardware
    • Kensington Lock Slot: 1
  • Controls
    • Physical Controls: 1, 2, Up, Down, Power
    • On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • Operating Conditions
    • Temperature: 32°F to 104°F (0°C to 40°C)
    • Humidity (non-condensing): 20% to 90%
  • Wall Mount
    • VESA Compatible: 100 x 100 mm
  • Input Signal
    • Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
    • Frequency Vertical: RGB Analog: 50 ~ 76Hz, HDMI (v1.4): 50 ~ 76Hz, DisplayPort (v1.2): 50 ~ 76Hz
  • Video Input
    • Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    • Analog Sync: Separate/Composite/SOG - RGB Analog
  • Ergonomics
    • Tilt (Forward/Back): 20º / 70º
  • Weight (imperial)
    • Net (lbs): 7.9
    • Net Without Stand (lbs): 7.9
    • Gross (lbs): 10.4
  • Weight (metric)
    • Net (kg): 3.6
    • Net Without Stand (kg): 3.6
    • Gross (kg): 4.7
  • Dimensions (imperial) (wxhxd)
    • Packaging (in.): 21.7 x 14.6 x 4.5
    • Physical (in.): 19.3 x 11.8 x 1.9
    • Physical Without Stand (in.): 19.3 x 11.8 x 1.9
  • Dimensions (metric) (wxhxd)
    • Packaging (mm): 550 x 371 x 114
    • Physical (mm): 490 x 299 x 47
    • Physical Without Stand (mm): 490 x 299 x 47
  • General
    • Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BIS, CCC, China RoHS, China Energy Label, CECP
    • PACKAGE CONTENTS: TD2230 x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    • Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    • Warranty: *Warranty offered may differ from market to market
    • Power Management: Energy Star standards, EPEAT
Resolution:
Full HD (1920 x 1080)
Screen Size:
22"
