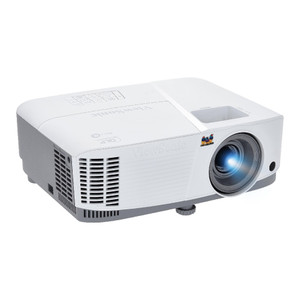

Viewsonic PG603W 3800lms WXGA Business Projector

Viewsonic PG603W 3800lms WXGA Business Projector

ViewSonic
SKU:
PG603W
|
UPC:
766907916010

Pricing available upon request

ViewSonic Projectors (unless otherwise specified) are warranted for three (3) years from the date of first consumer purchase for parts and labor and one (1) year limited lamp warranty.
Current Stock:
Description

The ViewSonic PG603W projector features WXGA resolution and a brightness output of 3800 ANSI Lumens for projecting clear, detailed images in brightly lit environments. PG603W has wireless sharing capabilities and allows you to share content from laptops and other smart devices from anywhere in the room via the projector’s LAN/Wi-Fi display with vPresenter Pro app. Smart device content can also be mirrored directly to the PG603W through USB connection for a simplified way to share content. The projector’s integrated USB reader allows you to plug in thumb drives through the USB port to display image files such as JPG and BMP, as well as Word, PowerPoint, and Excel files without the need for a PC. In addition, the energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours for dependable long-term projection.

Bright Images in Any Environment

Packed with 3,800 ANSI Lumens of brightness and a 22,000:1 high contrast ratio, PG603W is equipped to produce bright images in any environment, including rooms with high ambient light.

3,800ANSI Lumens

Immersive 3D Viewing

PG603W is capable of projecting 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.

HDMI 3D Blu-ray

Optimized Audio

SonicMode uses an embedded DSP chip to optimize sound performance for 3 different usage scenarios.

  • Standard Mode: A preset mode that offers the best sound levels for general use.
  • Speech Mode: A preset mode that enhances the sound of spoken words, making it ideal for projecting speeches and lectures.
  • Entertainment Mode: a preset mode that is fine-tuned with more bass and richer mid-high frequencies; ideal for music and movies.
SonicMode

PC-free Projection

The projector’s USB reader support allows users to run photo images such as JPG and BMP, as well as office documents including PDF, Word, PowerPoint, and excel files, directly from a thumb drive for a PC-less projection solution.

  • Operation has been verified for the following applications.
  • Adobe PDF: 1.0/1.1/1.2/1.3/1.4
  • Microsoft Word: British Word 95, Word 97/2000/2002/2003/2007(.docx)/2010(.docx)
  • Microsoft Excel: British Excel 5/95, Excel 97/2000/2002/2003/2007(.xlsx)/2010(.xlsx)/Office XP Excel
  • Microsoft PowerPoint: British PowerPoint97, PowerPoint 2000/2002/2003/2007(.pptx)/2010(.pptx)/Office XP PowerPoint, PowerPoint presentation 2003 and earlier(.pps)/2007 and 2010(.ppsx)
USB reader

Wireless Presentation

PG603W supports display over LAN/W-Fi with vPresenter Pro app, which enables wireless content sharing from laptops and other smart devices and allows you to connect up to 4 different content sources simultaneously shown on a quad split screen.

  • Minimum system requirements for vPresenter Pro
  • Mac OS 10.10-10.11
  • iOS 9-10
  • Windows 7-10
  • Android 5.0 above

*There may be system requirement changes for Mac OS and iOS, please refer to ViewSonic website or App Store before use.

LAN/Wi-Fi Display

Mobile Screen Mirroring

Content from smart devices can be mirrored instantly via USB cable connection for delivering presentations directly from your own device.
*Android 5.0 above devices need to first download the vPresenter Pro app to perform screen mirroring; audio cannot be output from projector when being mirrored.

USB Display for Mobile

Centralized Management

PG603W is Creston, AMX, PJ Link, ATEN, Extron and ViewSonic vController compatible for easy-to-use network management that allows administrators to remotely observe and control up to 256 projectors at one time through a LAN IP. An advanced real-time alert system sends status updates about power, lamp life, and unit location for efficient monitoring.

LAN Control

Instant Activation

Get your projector up and running instantly with two simple settings:

  • Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
  • Signal Power On: The projector will power on automatically upon detection of a VGA or HDMI cable connection.
Auto Power On

Easy Image Correction

Horizontal and Vertical Keystone correction and 4 corner adjustment features eliminate crooked and distorted images for a perfectly proportioned picture every time.

H/VKeystone4 CornerAdjustment

8 Control Codes from a Single Remote

This projector remote control can be assigned to 8 different remote control codes for effortless projector selection, configuration and operation during lessons or meeting. The remote can also be used to control specific projectors individually by adjusting the remote’s control code.

8Control Codes

Extended Lifespan

When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.

  • Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
  • SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.
15,000 hoursLifespan

Automatic Sleep Timer

PG603W’s Sleep Timer function allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.

Sleep Timer

Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

Auto Power Off


Exterior & Rear I/O Connectors
  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Zoom/Focus
  5. Projection Lens
  6. Front IR
  7. Audio in/out
  8. HDMI
  9. Computer in
  10. Monitor out
  11. Mini USB for service
  12. Video
  13. LAN
  14. USB Reader / USB WIFI
  15. RS232
  16. Kensington Lock

Key Features

  • 22,000:1 contrast ratio
  • Integrated USB reader
  • Screen mirroring for smart devices via USB
  • LAN/WiFi display with vPresenter Pro
  • Horizontal and Vertical keystone

Technical Specifications

  • Specifications
    • Native Resolution: 1280x800
    • DC type: DC3
    • Brightness: 3800 ANSI Lumens
    • Contrast Ratio with SuperEco mode: 22000:1
    • Display Color: 1.07 Billion Colors
    • Light Source: Lamp
    • Light source life (Nor/SuperEco): 5000/15000
    • Lamp Watt: 200W
    • Lens: F=2.56-2.68, f=22-24.1 mm
    • Projection Offset: 100%+/-5%
    • Throw Ratio: 1.55-1.70
    • Image size: 30" - 300"
    • Throw Distance: 1m-10.98m(100" @3.34m)
    • Keystone: H:+/-20° , V:+/-30°
    • Optical Zoom: 1.1x
    • Audible Noise (Eco): 27dB
    • Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Video Compatibility: NTSC, PAL, SECAM
    • Horizontal Frequency: 15K~102KHz
    • Vertical Scan Rate: 23~120Hz
  • Input
    • Computer in (share with component): 1
    • Composite: 1
    • Audio-in (3.5mm): 1
    • HDMI (HDCP): 1 (Back)
    • (HDMI 1.4/ HDCP 1.4)
  • Output
    • Monitor out: 1
    • Audio out (3.5mm): 1
    • Speaker: 10W
    • USB type A (Power): 2 (1 x reader 5V/0.5A & 1 x optional wifi dongle)
  • Control
    • RS232: 1
    • RJ45: 1
    • USB type mini B (Services): 1
  • Others
    • Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    • Power Consumption: Normal: 270W
    • Standby: <0.5W
    • Operating Temperature: 0~40℃
    • Carton: Brown
    • Net Weight: 2.3kg
    • Dimensions (WxDxH) w/adjustment foot: 294x218x110mm
    • Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • Standard Accessory
    • Power Cord: 1
    • VGA cable: 1
    • Remote Control: 1 (w/ laser pointer)
    • QSG & CD: QSG: 1 / CD: NA
  • Optional Accessory
    • Lamp/Light Source: RLC-109
    • Air Filter: RSPL
    • Carry Bag: PJ-CASE-008
Additional Information
ANSI (Lumens):
3800
Resolution:
WXGA (1280 x 800)
Product Type:
Projector
