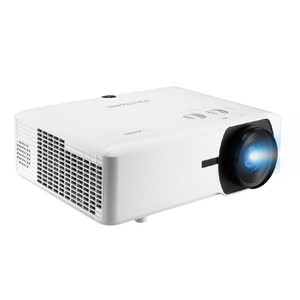

Viewsonic LS860WU 5000lms WUXGA Short Throw Laser Installation Projector

ViewSonic
SKU:
LS860WU
|
UPC:
766907003987

Pricing available upon request

ViewSonic Projectors (unless otherwise specified) are warranted for three (3) years from the date of first consumer purchase for parts and labor and one (1) year limited lamp warranty.
Current Stock:
ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centers, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.

High Brightness

Packed with 5,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.

5,000 ANSI Lumens


Ultra-high Contrast Ratio

Boasting a 3,000,000:1 ultra-high contrast ratio, even the finest shades of colour are enhanced – a key characteristic for delivering razor-sharp images.

3M:1 Contrast Ratio


2nd Generation Laser Phosphor Technology

The ViewSonic new laser projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent colour performance, lamp-free design, and instant on/off switch from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

2nd GenerationLaser Phosphor Technology


Long-lasting Lifespan

Laser technology offers a lifespan up to 20,000 hours (4 hours per day for more than 13 years), delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.

20,000 hoursLifespan


No shadows, No blinding lights.

With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.

0.81-0.89 Short Throw
1.1x Optical Zoom


Installation Flexibility

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.

Wide H/V Lens Shift


360° Creative Applications

The projector can freely rotate at any angle vertically to help with creative applications, allowing projection onto ceilings, walls, or angled signage.

360-degree
Projection


90° Portrait Mode

Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.

Portrait Mode


Lighter Weight and Compact Size

It is almost half the weight and 35% smaller in size compared to its predecessor, which reduces the cost of transportation and enhances the ease of installation.

Lighter Weight
Compact Size


Built-in HDBaseT Receiver

Its built-in HDBaseT receiver is a cost-effective solution to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p) when combined with a Cat.5e/6 cable and is compatible with any certified HDBaseT transmitter.

HDBaseTReceiver


Non-stop 24/7 Operation

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

24/7 Operation


Network Management

This projector comes equipped with Creston, AMX, Control4, PJ Link, ATEN, Extron and ViewSonic vController, an easy-to-use network management tool.

LAN Control


A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service centre for software updates.

Projector Software Update & LAN Update


Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone
4 Corner Adjustment


Amazing Colour Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.

SuperColor™Technology


Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.

IP5X


Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and therefore prolongs its lifespan.

Auto Power Off


Energy Efficiency

Power Saving Mode allows users to extend the projector’s lifespan and minimise energy consumption. When in Power Saving Mode, the projector will automatically switch into Eco Mode and SuperEco Mode whenever there is no signal input detected.

Power saving


Exterior & Rear I/O Connectors

  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Lens Shift Control Knob
  5. Zoom/Focus Ring
  6. Adjustment Foot
  7. LED Indicator
  8. Keypad
  9. Composite
  10. S-Video
  11. USB Type A (5V/1.5A)
  12. HDMI x 2
  13. HDBaseT
  14. Computer In
  15. Monitor Out
  16. LAN
  17. Audio in & Out
  18. 3D VESA
  19. 12V Out
  20. RS-232

Key Features

  • 5,000 ANSI Lumens offering bright images in any environment
  • 2nd generation Laser Phosphor technology with 20,000 hours lifespan
  • 0.81-0.89 short throw ratio free of large space consumption
  • Wide H/V lens shift enabling flexible installation
  • Creativity realized by 360° projection & Portrait mode
  • Cost-effective compact size and built-in HDBaseT

Technical Specifications

  • Specifications
    • Native Resolution: 1920x1200
    • Brightness: 5000 (ANSI Lumens)
    • Contrast Ratio: 3000000:1
    • Display Color: 1.07 Billion Colors
    • Light Source Type: Laser Phosphor system
    • Light Source Life (hours) with Normal Mode: 20000
    • Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    • Lamp Watt: Nichia 67W x2
    • Lens: F=1.83-1.86, f=8.6-9.4mm
    • Projection Offset: 0%
    • Throw Ratio: 0.81-0.89
    • Optical Zoom: 1.1X
    • Digital Zoom: 0.8x-2.0x
    • Image Size: 60"-200"
    • Throw Distance: 1.04-3.83m
    • (100"@1.74m)
    • Keystone: H:+/-40° , V:+/-40°
    • Lens Shift V. Range: +50%, -50%
    • Lens Shift H. Range: +23%, -23%
    • Audible Noise (Normal): 35dB
    • Audible Noise (Eco): 28dB
    • Input Lag: 16ms
    • Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
    • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Video Compatibility: NTSC, PAL, SECAM
    • Horizontal Frequency: 15K-102KHz
    • Vertical Scan Rate: 23-120Hz
  • Input
    • Computer in (share with component): 1
    • Composite: 1
    • S-Video: 1
    • HDMI: 2
    • (HDMI 1.4/ HDCP 1.4)
    • Audio-in (3.5mm): 1
    • Audio-in (RCA R/L): 1
    • 3D VESA (Sync): 1
    • HDBaseT: 1
  • Output
    • Monitor out: 1
    • Audio-out (3.5mm): 1
    • Speaker: 10W x2
    • USB Type A (Power): 1 (5V/1.5A)
    • 12V Trigger (3.5mm): 1
  • Control
    • RS232 (DB 9-pin male): 1
    • RJ45 (LAN control): 1
    • USB Type A (Services): 1
    • (share with USB A Output)
  • Others
    • Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
    • Power Consumption: Normal: 430W
    • Standby: <0.5W
    • Operating Temperature: 0~40℃
    • Carton: Brown
    • Net Weight: 6.6kg
    • Gross Weight: 9.1kg
    • Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
    • Packing Dimensions: 515x490x276mm
    • OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
    • User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • Standard Accessory
    • Power Cord: 1
    • VGA Cable: 1
    • Remote Control: 1
    • (w/ laser pointer)
    • QSG: Yes
    • Warranty Card: Yes (CN Only)
  • Optional Accessory
    • Wall/Ceiling Mount: PJ-WMK-007
ANSI (Lumens):
5000
Resolution:
WUXGA (1920 x 1200)
Product Type:
Projector
