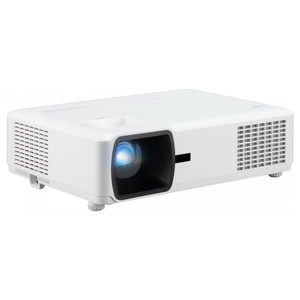

Viewsonic LS500WHE 3000lms WXGA LED Business/Education Projector

Viewsonic LS500WHE 3000lms WXGA LED Business/Education Projector

ViewSonic
SKU:
LS500WHE
|
UPC:
766907016734

Pricing available upon request

ViewSonic Projectors (unless otherwise specified) are warranted for three (3) years from the date of first consumer purchase for parts and labor and one (1) year limited lamp warranty.
Current Stock:
Description
The LS500WHE is ViewSonic’s first lamp-free, 3,000 ANSI Lumens high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, it frees users from frequent lamp replacement and toxic mercury for a safer and greener environment, offering phenomenal lifespan of 30,000 hours, less power consumption,  and true-to-life colors with 125% Rec.709. Give light to your presentations effortlessly with efficient instant power on/off and 360° tilt angle projection for flexible setup in small-to-medium sized meeting rooms/classrooms.

Advanced 3rd Generation LED Technology

The latest 3rd generation LED technology eliminates toxic mercury and the cost and effort of frequent lamp replacement, offering consistently impressive brightness for up to 30,000 hours.
Lamp Free, Mercury Free, Maintenance Free
Eco-friendly LED Technology 1


Enhanced Brightness for Business/Education Environments

With the latest LED technology, the LS500WHE achieves a major brightness breakthrough to 3,000 ANSI Lumens, ensuring bright and detailed images in dim or lit environments.
3,000 ANSI Lumens
Bright Images in Business/Education Environments 1
Bright Images in Business/Education Environments 2


Higher Power Efficiency

Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS500WHE saves nearly 50% more energy than competing lamp-based projectors.
Energy-Saving
Higher Power Efficiency 1


Cinema SuperColor+™ Technology

Impress any audience with ViewSonic’s exclusive Cinema SuperColor+™ Technology, covering 125% Rec.709 wide color gamut for a rich, true-to-life color experience.

Cinema SuperColor+™ Technology 1


Efficient Instant Power On/Off

Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

Efficient Instant Power On/Off 1


360° Projection for Versatile Application

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

360° Projection for Versatile Application 1


A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

Learn more: https://youtu.be/irlhJLpDHas

*The latest projector software update can be found in the download section at the bottom of the page when available.

A Simpler Way to Update Projector Software 1


USB Type A Power Supply

The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

USB Type A Power Supply 1


Sealed Optical Engine with IP5X

Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.
IP5X
Sealed Optical Engine with IP5X 1


Dimensions & I/O Ports

  1. Keypad
  2. Power Button
  3. Front IR
  4. Lens
  5. LED Indicator
  6. Zoom/Focus Ring
  7. Audio In
  8. Audio Out
  9. RS-232
  10. HDMI
  11. USB Type A (5V/2A, Service)

Key Features

  • 3rd generation LED technology with 30,000 hour lifespan
  • 3,000 ANSI Lumens offering bright images in any environment
  • Instant power on/off for efficient use
  • 360° projection for versatile application
  • Convenient projector software updates via USB connection

Technical Specifications

  • Specifications
    • Native Resolution: 1280x800
    • Brightness: 3000 (ANSI Lumens)
    • Contrast Ratio: 3000000:1
    • Display Color: 1.07 Billion Colors
    • Light Source Type: LED
    • Light Source Life (hours) with Normal Mode: up to 30000
    • Lamp Watt: RGB LED
    • Lens: F=2.56-2.68, f=22-24.1mm
    • Projection Offset: 100%+/-5%
    • Throw Ratio: 1.55-1.70
    • Optical Zoom: 1.1X
    • Digital Zoom: 0.8x-2.0x
    • Image Size: 30"-300"
    • Throw Distance: 1m-10.98m(100"@3.34m)
    • Keystone: +/- 40° (V)
    • Audible Noise (Normal): 30dB
    • Audible Noise (Eco): 26dB
    • Input Lag: 16ms
    • Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Horizontal Frequency: 15K-102KHz
    • Vertical Scan Rate: 23-120Hz
  • Input
    • HDMI: 1(HDMI 1.4/ HDCP 1.4)
    • Audio-in (3.5mm): 1
  • Output
    • Audio-out (3.5mm): 1
    • Speaker: 2W
    • USB Type A (Power): 1 (5V/2A)
  • Control
    • RS232 (DB 9-pin male): 1
  • Others
    • Power Supply Voltage: 100-240V+/- 10%, 50/60Hz(AC in)
    • Power Consumption: Normal: 156WStandby: <0.5W
    • Operating Temperature: 0~40℃
    • Net Weight: 2.45kg
    • Dimensions (WxDxH) with Adjustment Foot: 293x221x115mm
    • OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
  • Standard Accessory
    • Power Cord: 1
    • Remote Control: 1
    • QSG: Yes
  • Optional Accessory
    • Wall/Ceiling Mount: PJ-WMK-007
    • Carry Bag: PJ-CASE-008
Additional Information
ANSI (Lumens):
3000
Resolution:
WXGA (1280 x 800)
Product Type:
Projector
