Warranty: 3 Years

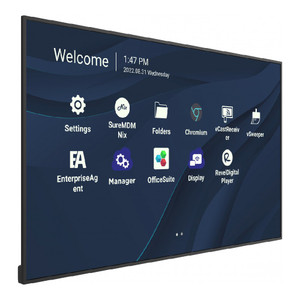

The ViewSonic® CDE5520 is a 55’’ presenation display with a slim, even bezel, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. This reliable presenation display is equipped with a quad-core processor, internal memory, and dual 10W speakers, allowing constant multimedia play from internal storage or a USB flash drive. Supporting a USB-programmable hospitality setting, remote configuration, and content management systems, each display will have the same customized default and content in the same hotel or shop. Versatile connectivity options include 2 HDMI-IN ports, RS232 input, SPDIF output etc. Allowing 1080p content to be streamed from mobile devices, ViewSonic® CDE5520 is also suitable for meeting application.
Slim, Even Bezel and Chassis
With a bezel width of only 1.3 cm, this presenation display delivers stunning images in a thin chassis.
1.3 cm bezel
USB Playback Photos, Music & Video
A powerful multi-core media player enables photo, music and video playback in seconds using just a USB connection.
Integrated USB multimedia player
Easy Multi-Screen Setups
This display is great for multi-screen setups in hotels, restaurants, sports bars, or retail outlets that require duplicated setup and customizable presets. With a USB-programmable hospitality setting, each display will have the same customized channel default, audio level, front-panel lockout, and auto power-up settings.
Hospitality Mode
Intranet/Internet-Based Settings & Content Management
vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN. The compatible software SureMDM and Revel Digital allows you to transfer multimedia content onto the display from virtually any device and any location.
vController, SureMDM, Revel Digital
Multiple HDMI Devices Control
With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.
HDMI CEC local control
ViewBoard® Cast Content Sharing Software
ViewBoard® Cast is a content sharing app for mobile devices* that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network. *Chrome, Android, Windows, Mac OS, and iOS compliant
Across devices with the app
Dimensions & I/O Ports
- Internal Speakers
- VESA® Compatible Wall Mount 400x400mm
- Menu Controls
- Power Switch
- AC In
- IR In/Out
- SPDIF
- Audio In/Out
- DVI-D In
- HDMI 2.0 In(x2)
- RS232 In
- LAN
- USB 2.0 Type A(x2)
Key Features
- Wireless content sharing across devices
- Easy multi-screen setups
- Remote configuration and content management
- USB playback photos, music & video
- Multiple HDMI devices control
Technical Specifications
- Display
-
Panel Size: 55"
-
Type/ Tech: "TFT LCD Module. IPS type, DLED backlight"
-
Display Area (mm): 1209.6 (H) x 680.4 (V) (55” diagonal)
-
Native Resolution: 3840 x 2160
-
Aspect Ratio: 16:9
-
Colors: 1.07B colors
- Brightness: 350 nits (typ.)
- Contrast Ratio: 1200:1 Typ.
- Response Time: 8 ms
- Viewing Angles: H = 178, V = 178 typ.
- Backlight Life: 30,000 Hours Min
- Surface Treatment: Anti-Glare, 2H, Haze 3%
- Bezel: Slim
- Orientation: Landscape
-
- INPUT
-
HDMI: x2
-
DVI: x1
-
Audio: x1 (3.5mm)
-
RS-232: x1
-
IR Pass Thru: x1
-
- OUTPUT
-
Audio: x1 (RCA)
-
SPDIF: x1 (Fiber)
-
IR Pass Thru: x1
-
-
LAN
-
RJ45: x1
-
-
USB
-
Type A: 2.0 Type A : x2 (USB Playback)
-
-
SPEAKERS
-
SPEAKERS: 10Wx2
-
-
COMPATIBILITY
-
RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
-
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
-
DVI: 480i, 480p,720p,1080i,1080p
-
Android Version: Android 8.0
-
-
POWER
-
Voltage: 100-240 VAC +/- 10% Wide Range
-
Consumption: Normal 100 W, Max 114.5 W
-
-
ERGONOMICS
-
Wall Mount (VESA® ): 400x200 mm
-
-
OPERATING CONDITIONS
-
Temperature (º C): 0 to 40°C
-
Humidity: 20% ~ 80% non-condensing
-
-
DIMENSIONS (W x H x D)
-
Physical (inch / mm): 48.94 x 28.11 x 2.94 in/1243.2 x 714 x 74.8 mm
-
Packaging (inch / mm): 55.90 x 35.83 x 9.65 in/1420 x 910 x 245 mm
-
-
WEIGHT
-
Net (lb / kg): 16.8 kg / 37.04 lbs
-
Gross (lb / kg): 23.95 kg / 52.8 lbs
-
-
REGULATIONS
-
REGULATIONS: cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE, RCM
-
What's Included
- CDE5520 presenation display
- Remote Control with batteries
- Quick Start Guide
- Power Cables (1.8M)
- HDMI cable (1.8M)
- RS232 cable (1.8M)
- Screen Size:
- 55"
- Resolution:
- Ultra HD 4K (3840 x 2160)
- Product Type:
- Display
