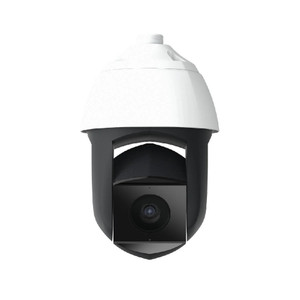

Verkada CP63 Outdoor PTZ Camera, 4K, 3TB of Storage

Verkada

SKU:

CP63-3TBE-HW

Pricing available upon request

10 Years Warranty

The CP63-E 4K PTZ camera includes a large 1 / 1.8” progressive CMOS image sensor for superior image quality and precise, detailed monitoring. The CP63-E’s advanced varifocal lens with 32x motorized optical zoom and 100-meter IR range complement its Sentry Mode for unparalleled, automated monitoring of individuals across an expansive field of view. With its onboard CV72S Ambarella processor delivering advanced analytics like AI-powered search, AI-powered alerts, Person of Interest detection, and crowd detection, the CP63-E excels in monitoring large areas such as sports fields, parking lots, or stadiums

Installation Guide (Click Here)

Key Features

Maximum 90 Days of Retention
Superior image quality
- Large 1 / 1.8” progressive CMOS image sensor
- 4K resolution
- Varifocal lens with 32x optical zoom
- 100 meters / 328 feet of IR range for long-range nighttime viewing
Advanced analytics
- Onboard CV72S Ambarella processor enables people and vehicle analytics
- AI-powered search and AI-powered alerts
Automated monitoring
- Support Sentry Mode with up to three context cameras for automated monitoring of vast areas
Hybrid cloud architecture
- Onboard storage and processing helps reduce bandwidth consumption, enabling coverage at scale
- 30 - 90 days (1TB - 3TB) of onboard storage
- Redundant cloud backup and unlimited cloud-based archiving of footage monitoring
Durability and weather protection
- Robust metal housing
- IP66 weather rating
- IK10 impact rating
- Operability between -40°C to 50°C / -40°F to 122°F

Technical Specifications

Camera
- Image Sensor: 1 / 1.8” Progressive CMOS
- Sensor Resolution: 4K (3840 x 2160)
- Lens Type: Varifocal; motorized zoom
- Focal Length: 6.5mm – 212mm
- Aperture: F1.4 – F4.9
- Iris: P-Iris
- Field of View
  - Horizontal: 64° - 2°
  - Vertical: 37° - 1°
  - Diagonal: 71° - 2°
- Sensor Movement:
  - Tilt: 220°
  - Pan: 360°
- Shutter Speed: 1 / 30 sec. to 1 / 10,000 sec.
- Day/Night: IR-cut filter for day and night function
- IR Cut Filter: Yes
- IR Range: 100m / 328ft
- Minimum Illumination
  - 0.02 lux @ F1.4 (Color)
  - 0 lux @ F1.4 with IR Illuminators on
- Onboard Storage
  - Capacity: From 1TB to 3TB
  - Card: MicroSD, SDXC
- CPU: Ambarella CV72S66
Standard video settings
- Compression: H.265 (historical video only), H.264
- Frame Rate: 24fps
- Live Streaming Settings (Per Head)
  - Static: 1,000 Kbps (SQ), 3,000 Kbps (HQ)
  - Moving: 2,000 Kbps (SQ), 4,500 Kbps (HQ)
- Historical Video Settings: Adaptive quality
- WDR Technology: True WDR, dual exposure
Standard audio settings
- Audio: Not supported
Power and network
- Power Input
  - With IR: IEEE 802.3bt Type 3 PoE++
  - Without IR: IEEE 802.3bt Type 3 PoE++
  - Extended temperature range: IEEE 802.3bt Type 3 PoE++
- Power Consumption
  - With IR: 42.5 - 57.0V, 1.13 - 0.85A, 48.0W
  - Without IR: 42.5 - 57.0V, 0.8 - 0.60A, 34.0W
  - Extended temperature range: 42.5 - 57.0V, 1.20 - 0.90A, 51.0W
- Connectivity: RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
- RTSP
  - RTSP 1.0
  - RFC 2326
  - Max concurrent streams: 2
  - Audio support: No
General
- Operating Temperature: -40°C to 50°C / -40°F to 122°F
- Humidity: 0 to 90%
- LED Indicator: System power and status indicator
Mechanical
- Weight
  - Camera: 7.53kg / 16.6lbs
  - Pendant cap: 0.41kg / 0.9lbs
- Dimensions:
  - Ø: 256mm / 10.1in, H: 406mm / 16.0in with pendant cap
  - Ø: 256mm / 10.1in, H: 336mm / 13.2in without pendant cap
- Body: Aluminum, plastic, glass
Software capabilities
- Alerts: Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, AI-powered alerts
- Streaming and storage: Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP, footage archive
- People analytics: People search, attribute search, face search, Sentry Mode, motion search, trajectory analysis, selective face blurring, AI-powered search
- Sharing and privacy: Live Links, audit log
- Vehicle analytics: Vehicle search, attribute search, motion search, trajectory analysis, AI-powered search
- Controllers: Mouse, keyboard, Xbox Wireless Controller, joystick

What's Included

CP63 Camera
Rubber cap
Pendant cap
T30 security L-wrench
