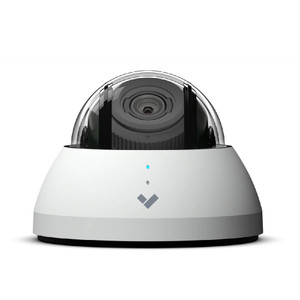

Verkada CD63-E Outdoor Dome Camera, 4K, Zoom Lens, 3TB of Storage

The CD63-E-F is a FIPS-validated outdoor dome camera that features a large 1 / 1.2” progressive CMOS image sensor, varifocal lens with 2.25x optical zoom, and 40 meters / 130 feet of IR range to provide 4K monitoring in a variety of lighting conditions as well as in inclement weather. The CD63-E-F also includes FIPS 140-2-validated encryption, has FedRAMP Ready status at the Moderate impact level, and is both TAA and FY2019 NDAA compliant – essential compliance criteria for government-grade deployments. The CD63-E-F is compatible with the standard Verkada Command platform, as well as Command hosted in AWS GovCloud.

The CD63-E-F includes a powerful CV72S Ambarella processor to support advanced analytics like Occupancy Trends, line crossing, loitering, and Person of Interest (POI) alerts. The CD63-E-F excels at covering high-traffic exterior environments like building perimeters, parking facilities, and courtyards where detailed analytics expedite investigations.

The CD63-E-F’s robust metal housing, IP66/67 weather rating, and IK10 impact rating enable the camera to withstand harsh conditions. Constructed with easy installation top-of-mind, the CD63-E-F features captive screws that remain attached to the mounting plate, a latch-based cable gland for easy PoE threading, a three-LED light status indicator, a built-in bubble level to help ensure precise alignment, and physical and digital mute switches to easily enable or disable audio.

Installation Guide (Click Here)

Key Features

• Maximum 120 Days of Retention
• Superior image quality

  • Large 1 / 1.2” progressive CMOS image sensor
  • 4K resolution
  • Varifocal lens with 2.25x optical zoom
  • 40 meters / 130 feet of IR range for optimal nighttime viewing
• Advanced analytics

  • Onboard CV72S Ambarella processor enables people and vehicle analytics
  • Person of Interest (POI) alerts for proactive monitoring
  • Occupancy Trends for operational insights
• Hybrid cloud architecture

  • Onboard storage and processing for reduced bandwidth consumption and coverage at scale
  • 30 - 120 days (512GB - 3TB) of onboard storage
  • Redundant cloud backup and unlimited cloud-based archiving of footage
• Government-grade security

  • Meets the FIPS 140-2 standard, as validated by NIST
  • FedRAMP Ready status at the Moderate impact level as designated by the Federal Risk and Authorization Management Program
  • TAA and FY2019 NDAA compliant
• Durability and weather protection

  • Robust metal housing
  • IP66/67 weather rating and IK10 impact rating
  • Operability between -40°C to 50°C / -40°F to 122°F

Technical Specifications

• Camera
  • Image Sensor: 1/1.2" Progressive CMOS
  • Sensor Resolution: 4K (3840 x 2160)
  • Lens Type: Varifocal; motorized zoom
  • Focal Length: 5.9 - 13.3mm
  • Aperture: F1.5 - F2.9
  • Iris: P-Iris
  • Field of View (after LDC)

    • Horizontal: 109° - 49° (102° - 47°)
    • Vertical: 58° - 28° (58° - 27°)
    • Diagonal: 113° - 55° (107° - 53°)
  • Sensor Movement

    • Tilt: 65°
    • Pan: 360°
    • Rotation: 350°
  • Shutter Speed: 1 / 30 sec. to 1 / 10,000 sec.
  • Day/Night: IR-cut filter for day and night function
  • IR Cut Filter: Yes
  • IR Range: 40m / 130ft
  • Minimum Illumination

    • 0.009 lux @ F1.9 (Color)
    • 0 lux with IR Illuminators on
  • Onboard Storage

    • Capacity: From 512GB to 3TB
    • Card: MicroSD, SDXC
  • CPU: Ambarella CV72S66
• Standard video settings
  • Compression: H.265, H.264
  • Frame Rate: 24fps
  • Live Streaming Settings

    • High quality (HQ): Up to 3,000 Kbps (default)
    • Standard quality (SQ): Up to 600 Kbps
  • Historical Video Settings: Adaptive quality
• Standard audio settings
  • Audio: Supported
  • Audio Capacity: One-way audio
  • Interface: Built-in microphone
  • Effective Range: 5m / 16ft
• Power and network
  • Power Input

    • With IR: IEEE 802.3at Type 2 PoE+
    • Without IR: IEEE 802.3af Type 1 PoE
    • Extended temperature range: IEEE 802.3at Type 2 PoE+
  • Power Consumption

    • With IR: 42.5-57V, 0.48-0.36A, 20.4W
    • Without IR: 42.5-57V, 0.27-0.20A, 11.3W
    • Extended temperature range: 42.5-57V, 0.6-0.45A, 25.5W
  • Connectivity: RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
  • RTSP

    • RTSP 1.0
    • RFC 2326
    • Max concurrent streams: 2
    • Audio support: Yes
• General
  • Operating Temperature: -10°C to 50°C / 14°F to 122°F
  • Humidity: 0 to 90%
  • LED Indicator: System power, status indicator and debug indicator
• Mechanical
  • Weight

    • Camera: 1386.0g / 48.9oz
    • Mount plate: 193.0g / 6.8oz
  • Dimensions

    • Ø: 155mm / 6.1in, H: 111.4mm / 4.4in with mount plate
    • Ø: 155mm / 5.1in, H: 104.4mm / 4.1in without mount plate
  • Body: Aluminum, plastic dome trim
• Software capabilities
  • Alerts: Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection, AI-powered alerts
  • Streaming and storage: Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
  • People analytics: People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search
  • Sharing and privacy: Live links, live face blur, privacy regions, audit log
  • Vehicle analytics: Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search

What's Included

• CD63-E Camera
• Screw packs
• Mount plate with leveler
• Cable sealing rubber for 6.5-7.5mm
• Conduit adapter
• T10 security driver
• Desiccant 4.5g
