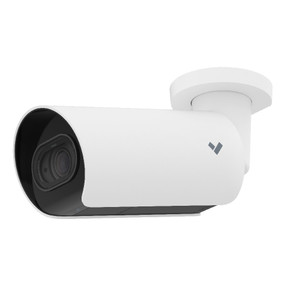

Verkada CB62-E Outdoor Bullet Camera, 4K, Zoom Lens, 2TB of Storage

The CB62-E bullet camera features a 1 / 2.8” progressive CMOS image sensor, varifocal lens with 2.86x optical zoom, and IR LEDs with 30 meters / 98 feet of range for detailed 4K coverage in various lighting conditions as well as in inclement weather. The CB62-E features an onboard CV22S Ambarella processor for advanced, privacy-sensitive analytics like AI powered search, Occupancy Trends, line crossing, loitering, and Person of Interest (POI) alerts. In addition, the CB62-E supports License Plate Recognition (LPR), enabling the device to capture license plates from vehicles traveling at speeds of up to 80 mph / 128 kph across as many as three lanes of traffic. With its highly visible form factor, the CB62-E also serves as a deterrent to potential threats. Its LPR capabilities can also be used to grant access at vehicle gates, providing seamless entry to known vehicles while keeping out unauthorized ones.

The CB62-E is constructed with a robust aluminum unibody and withstands extreme conditions with an IP67 weather rating and IK10 impact rating. The camera’s design includes a built-in pigtail connector that expedites PoE cabling without requiring disassembly. Installation and setup are easy to track using the LED status indicator.

Key Features

• Maximum 90 Days of Retention
• Superior image quality

  • 1 / 2.8” progressive CMOS image sensor
  • 4K resolution
  • Varifocal lens with 2.86x optical zoom
  • 30 meters / 98 feet of IR range for optimal nighttime viewing
• Advanced analytics

  • Onboard CV25S Ambarella processor enables people and vehicle analytics
  • License Plate Recognition capabilities capture license plates at speeds up to 80 mph / 128 kph
  • AI-powered search and AI-powered alerts
  • Occupancy Trends for operational insights
• Hybrid cloud architecture

  • Onboard storage and processing for reduced bandwidth consumption and coverage at scale
  • 30 - 90 days (512GB - 2TB) of onboard storage
  • Redundant cloud backup and unlimited cloud-based archiving of footage
• Easy installation

  • Built-in pigtail connector for simplified PoE cabling
  • Mounting plate and screw pack included
  • LED light status indicator
• Durability and weather protection

  • Factory-sealed robust aluminum unibody
  • IP67 weather rating
  • IK10 impact rating
  • Operability between -40°C to 50°C / -40°F to 122°F

Technical Specifications

• Camera
  • Image Sensor: 1 / 2.8” Progressive CMOS
  • Sensor Resolution: 4K (3840 x 2160)
  • Lens Type: Varifocal; motorized zoom
  • Focal Length: 2.8mm – 8mm
  • Aperture: F1.3 – F2.4
  • Iris: P–Iris
  • Field of View (LDC ON)

    • Horizontal: 107° - 43° (106° - 41°)
    • Vertical: 62° - 24° (62° - 24°)
    • Diagonal: 126° - 49° (119° - 48°)
  • Camera Movement

    • Tilt: 0° to 90°
    • Pan: 360°
    • Rotation: 360°
  • Shutter Speed: 1 / 30 sec. to 1 / 10,000 sec.
  • Day/Night: IR-cut filter for day and night function
  • IR Cut Filter: Yes
  • IR Range: 30m / 98ft
  • Minimum Illumination

    • 0.009 lux @ F1.9 (Color)
    • 0 lux with IR Illuminators on
  • Onboard Storage

    • Capacity: From 512GB to 2TB
    • Card: MicroSD, SDXC
  • CPU: Ambarella CV25S88
• Standard video settings
  • Compression: H.265, H.264
  • Frame Rate: 24fps
  • Live Streaming Settings

    • High quality (HQ): Up to 4,500 Kbps (default)
    • Standard quality (SQ): Up to 600 Kbps
  • Historical Video Settings: Adaptive quality
• Standard audio settings
  • Audio: Not supported
• Power and network
  • Power Input

    • With IR: IEEE 802.3at Type 2 PoE+
    • Without IR: IEEE 802.3af Type 1 PoE
    • Extended temperature range: IEEE 802.3at Type 2 PoE+
  • Power Consumption

    • With IR: 37-57V, 0.4-0.26A, 14.88W
    • Without IR: 37-57V, 0.11-0.08A, 4.34W
    • Extended temperature range: 37-57V, 0.64-0.39A, 23.68W
  • Connectivity: RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
  • RTSP

    • RTSP 1.0
    • RFC 2326
    • Max concurrent streams: 2
    • Audio support: No
• General
  • Operating Temperature: -40°C to 50°C / -40°F to 122°F
  • Humidity: 0 to 90%
  • LED Indicator: System power and status indicator
• Mechanical
  • Weight

    • Camera: 1464g / 51.6oz
    • Mount plate: 33g / 1.16oz
  • Dimensions: Ø: 85mm / 3.35in L: 254mm / 10in
  • Body: Aluminum
• Software capabilities
  • Alerts: Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection
  • Streaming and storage: Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
  • People analytics: People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search
  • Sharing and privacy: Live Links, live face blur, privacy regions, audit log
  • Vehicle analytics: Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search
  • License Plate Recognition: License Plate of Interest alerts, license plate indexing

What's Included

• CB62-E Camera
• 4x M4x8 screws
• 4x TP4x30 mount screws
• Mount plate
• Junction box adapter
• Junction box cover
• T25 hand tool
