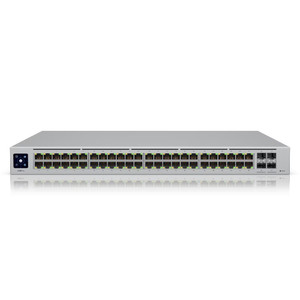

UniFi Network 48 Port (4) 10G SFP+ Ports Pro Switch Layer 3 Etherlighting Managed

Expand your business's network with the Pro Max 48-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support additional computers, servers, and other compatible devices. Sixteen 2.5G Ethernet ports and thirty-two 1G ports ports are available with Etherlighting technology illuminating each of them to indicate their location, speed/link status, and native VLAN/network configurations when used with compatible cables. Four SFP+ ports are also available for up to 10 Gb/s uplinks.

A 1.3" touchscreen display provides important status information at a glance. Supporting a 224 Gb/s (112 Gb/s non-blocking) switching capacity and Layer 3 features, the Pro Max 48 delivers smooth data transfers. Its settings may be managed through the UniFi Network platform.

Performance

This switch supports Layer 3 features with a 224 Gb/s (112 Gb/s non-blocking) switching capacity.

Backup Power

Connecting the DC backup power input to a compatible source provides failover support for added peace of mind.

Key Features

• 16 x 2.5G Ethernet Ports
• 32 x Gigabit Ethernet Ports
• 4 x 10G SFP+ Ports
• 224 Gb/s Switching Capacity
• 1.3" Touchscreen
• Etherlighting Ports
• Layer 3 Features
• DC Power Backup Ready
• UniFi Network Management

Technical Specificaitons

• Protocols

  • Layer Services Supported: Layer 3
  • Supported Protocols: Auto-MDIX/MDI
• Performance

  • Switching Bandwidth:

    • 224 Gb/s
    • 112 Gb/s (Non-Blocking)
• Electrical

  • Power Draw: 100.00 W (Max)
  • Input Power: 100 to 240 VAC, 60 / 50 Hz
  • Power Supply Type: Internal
• General

  • Certifications: CE, FCC, IC
  • Operating Conditions: 23 to 104°F / -5 to 40°C at 10 to 90% Humidity
  • Material of Construction: Steel
  • Indicator Lights: Yes
  • Rack Mountable: Yes 1 U
  • Dimensions: 17.4 x 12.8 x 1.7" / 442 x 325 x 44 mm
  • Weight: 10.6 lb / 4.8 kg
