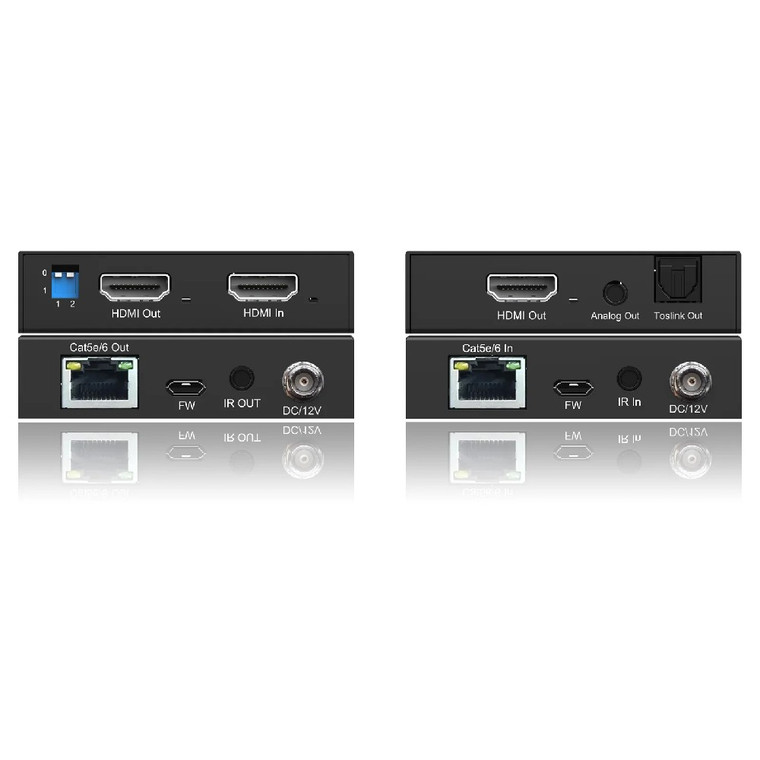

Simply AV HDMI2.0 Extender Over Cat6, HDR, 18Gbps. 70M(4K60 444), 90M(4K30/1080p); With Audio De-embedder, IR , POC, Local Loopout.

The SimplyAV SA-HE63 is a 70-meter 4K HDMI 2.0 extender that features a local HDMI loop-out, HDR10 support, dual Power over Cable (PoC), SPDIF audio extraction, and bidirectional IR.

Key Features

• HDMI 2.0 Extender, Bandwidth 18 Gbps, HDR10, Dual POC, HDCP 2.2 / 1.4 Compliant.
• Transmit up to 70m under 4K @ 60Hz YUV 4:4:4, 90m under 4K @ 30Hz / 1080P over single Cat 5e / 6 cable.
• 1 x HDMI Loop Out on Transmitter.
• Support EDID Management.
• Support Wide Band IR Pass through.
• HDMI audio sampling rate up to 192 kHz, max LPCM 7.1 channel.
• Support S/PDIF and PCM 2.0 analogue audio extraction.
• Support Dolby True HD, PCM and DTS-HD master audio.
• Support Micro USB port to upgrade new firmware.
• Dual POC, TX powered by RX, or RX powered by TX.

Technical Specifications

• Operating Temperature: – 5°C to + 40°C (+ 23°F to 104°F)
• Operating Humidity Temperature: 5% to 90% RH (No Condensation)
• Connectors (Transmitter):
  • 2 x HDMI Receptacle ( 1 x HDMI input, 1 x HDMI Loop Output)
  • 1 x Power DC Receptacle
  • 1 x IR Receptacle (IR TX)
• Connectors (Receivers):
  • 1 x HDMI Receptacle
  • 1 x IR Receptacle (RX Cable)
• Resolution Outputs: 4K @ 60Hz YUV 4:4:4 / 4K @ 30Hz / 1080P / 1080i / 720P / 576P / 480P
• Audio Format Supported: DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM, etc.
• Output Video Signal: HDMI
• Dimensions – mm (L x W x H): 75.8 x 72.2 x 18 (Transmitter & Receiver)
• Power Supply: DC 12V 1A
• Power Consumption: 3.8 W (Max)
• Transmission Distance:
  • Up to 70m under 4K @ 60Hz YUV 4:4:4
  • 90m under 4K @ 30Hz / 1080P
• Net Weight: 305 g (Transmitter & Receiver)

What's Included

• 1 x Transmitter
• 1 x Receiver
• 1 x IR – TX Cable
• 1 x IR – RX Cable
• 1 x User Manual
• 2 x IR Ext Cable
• 2 x Phoenix plugs for RS232 cable termination
• 2 x Remote Controller
• 2 x DC 5V / 1A Power Adapter
• 4 x Detachable Mounting Ears
• 8 x Screws
