Shure SLXD15/85 Portable Wireless Cardioid Lavalier Microphone System

Shure SLXD15/85 Portable Wireless Cardioid Lavalier Microphone System

Shure
SKU:
SLXD15/85-H57

Pricing available upon request

Up to 2 year(s) limited warranty against manufacturer defects from Shure Singapore. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
Current Stock:
Description

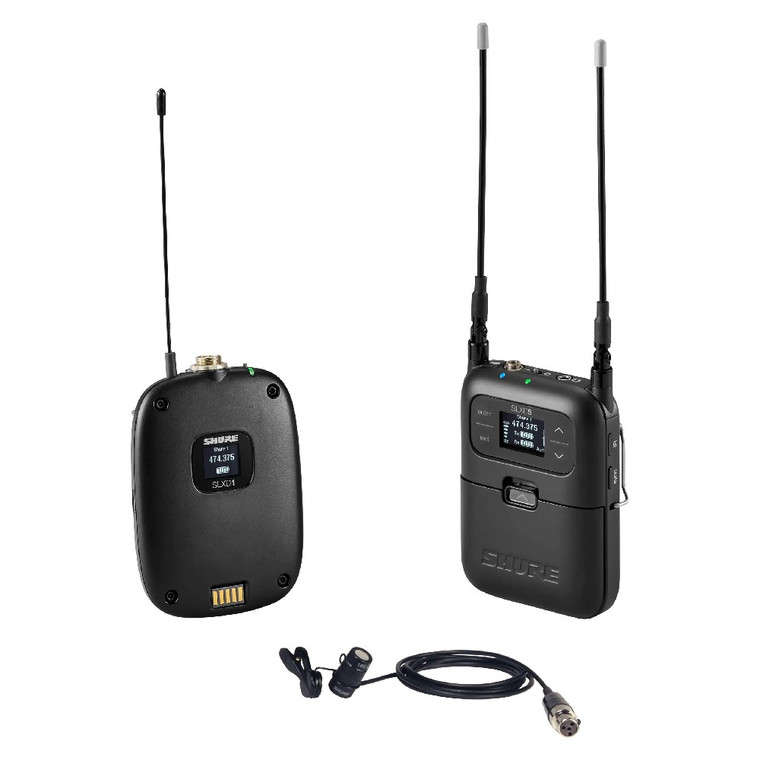

The Shure SLXD15/85 offers videographers, journalists, documentary makers, and content producers a reliable wireless lavalier microphone system that delivers crystal-clear digital sound quality while also being quick and easy to set up, even if you're using multiple mics on set. Built around a rugged, single-channel receiver that can be camera-mounted or used in an audio bag, the system offers a comprehensive feature set that ensures professional-sounding, broadcast-ready results for demanding filmmakers and creators. This configuration includes a bodypack transmitter and a WL185 cardioid lavalier microphone.
Transparent Digital Sound, Dependable Performance, and Multi-Mic Mode
  • The SLX-D delivers 24-bit digital audio with a fast transient response, a 20 Hz to 20 kHz frequency response, and a 118 dB dynamic range, resulting in clear, accurate sound.
  • Operating far away from potential Wi-Fi interference in the 2.4 GHz band, this configuration of the system transmits in the G58: 470 to 514 MHz UHF band, with a 44 MHz tuning range and 1760 frequencies it can autoscan to ensure a clean wireless signal.
  • Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas before dropouts occur.
  • A low latency of 3.2 ms helps ensure your sound and picture are easy to properly sync.
  • The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
  • Great for shoots with several cameras and microphones, Multi-Mic Mode lets you scan and create a list of clean frequencies, which you can send to multiple receivers via IR.
  • Each receiver will sync to the appropriate transmitter at the touch of a button; settings on the transmitters, including the input gain and high-pass filter, are also recalled.
  • Multi-Mic Mode makes channel allocation easier and more efficient since the receivers aren’t all auto-scanning and competing for open frequencies.
Bodypack Transmitter with WL185 Cardioid Lavalier Mic
  • This configuration comes with a WL185 lavalier microphone optimized for speech intelligibility and equipped with a cardioid polar pattern that helps to reject unwanted noise.
  • The lavalier mic plugs securely into the locking TA4M connector on the compact and discreet SLXD1 bodypack transmitter.
  • The rugged, plastic transmitter has a belt clip that attaches to the talent’s clothing and an LCD that shows essential information.
  • The mic offset function provides up to +21 dB of gain to boost low-volume speech and ensure multiple microphones are at similar levels.
  • Engage the 150 Hz high-pass filter to reduce distracting, unwanted low-end for clearer speech.
  • A selectable 1/10mW RF output allows you to increase the transmission power to overcome interference, if necessary, and the system provides a transmission range up to 330'.
  • Two AA batteries or an SB903 rechargeable battery (available separately) will power the unit for up to 8 hours.
Rugged Receiver Ready for Camera or Audio Bag
  • Powerful and portable, the SLXD5 is a single-channel digital wireless receiver for on-camera cold shoe mounting or audio bag use, featuring user-configurable front-panel controls and a bright OLED screen for key system function readouts and remaining battery life.
  • Housed in a tough metal chassis with adjustable front-mounted antennas, the SLXD5 is a great fit for on-the-go shooting rigs.
  • It offers adjustable gain control and dual 3.5mm outputs including a headphone monitor out and switchable line/mic output. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.
  • Two AA batteries or an SB903 rechargeable battery (available separately) will power the unit for up to 5.5 hours.
  • The receiver’s USB-C port can be used to recharge the SB903 battery or power the unit.
Optional Rechargeable Battery Management
  • Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger, SBC203 dual-docking charger, or SBC80-903 8-bay charger offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (batteries and chargers available separately).
  • Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter or receiver.
  • When powered by an SB903, the transmitter and receiver both display the remaining battery life in hours and minutes.
  • For bag use, the SBC-DC-903 battery eliminator (available separately) allows you to power the receiver from your mixer's battery.

A Variety of Mics and Transmitters Available

Shure offers numerous lavalier, headset, and handheld microphone options to adapt your SLX-D system as your needs evolve.

  • The WL183 omnidirectional lavalier mic offers consistent pickup, even when the talent turns away from the mic.
  • The WL184 supercardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
  • The discrete UL4 UniPlex subminiature cardioid lav provides directional pickup, exceptional clarity, and a discreet, low-profile appearance.
  • If you need a waterproof option, the DL4 DuraPlex miniature lavalier features an IP57 rating for water and dust resistance. Its forgiving omnidirectional microphone capsule delivers a clear, transparent, full-range sound.
  • The SLXD2 handheld transmitter is available with several mic-capsule choices for presenters who prefer the flexibility of a handheld microphone.
  • Add the XLR microphone of your choice to the system with the SLXD3, a plug-on transmitter with a secure locking connector that features both 12 and 48V phantom power for condenser mics.

Key Features

  • Content Creation, Videos, Documentaries
  • WL185 Cardioid Lavalier Microphone
  • Durable, Ergonomic Bodypack Transmitter
  • 1-Channel Receiver for Camera or Bag Use
  • 118 dB Dynamic Range, 24-Bit Audio
  • Reliable Predictive-Diversity Antennas
  • 44 MHz Bandwidth, 1760 Frequencies
  • Multi-Mic Mode for Complex Setups
  • 8-Hour Bodypack, 5.5-Hour Receiver
  • Expandable to 32 Mic Channels/330' Range

Technical Specifications

  • System
    • Wireless Technology: Digital UHF
    • Number of RF Channel Frequencies: 1760
    • Included Transmitters: 1x Bodypack with Microphone
    • Diversity: True Digital Diversity
    • RF Frequency Band: H57 (520-564mhz)
    • RF Bandwidth: 44 MHz
    • Frequency Step Size: 25 kHz
    • RF Channel Scanning: Auto-Scan
    • Max Operating Range: 328' / 100 m
    • Max Transmitters per Band: 32
    • Built-In Recorder: No
    • Timecode Support: Yes
    • Mobile App Compatible: No
    • Sample Rate/Resolution: 24-Bit
    • Latency: 3.2 ms
    • Dynamic Range: 118 dBA (Typical)
    • Encryption: No
    • THD: <0.02 %
  • Receiver
    • Receiver Type: Camera-Mount
    • Mounting Options: Shoe-Mount (with Included Hardware)
    • Antenna: 2x 1/4 Wave Flexible Whip, Fixed (Front-Mount)
    • Number of Audio Channels: 1
    • Audio I/O:
      • 1x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output
      • 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
    • Audio Output Level: 1/8" / 3.5 mm Output: +15 dB (Line Level, Balanced)
    • Phantom Power Protection: No
    • Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
    • Network I/O: No
    • USB/Lightning Connectivity: 1x USB-C Female (Bus Power, Charging)
    • USB Class-Compliant: No, USB Charging/Power Only
    • Impedance: 1/8" / 3.5 mm Output: 450 Ohms (Balanced)
    • Spurious: Rejection: >75 dB
    • Power Requirements: Battery, Bus Power (USB)
    • Battery Type:
      • 2x AA (Included)
      • 1x Shure SB903 (Not Included)
    • Approx. Battery Life: 5.5 Hours
    • Display & Indicators: OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status)
    • Housing: Aluminum
    • Operating Temperature: 0 to 122°F / -17 to 50°C
    • Storage Temperature: -20 to 165°F / -28 to 73°C
    • Dimensions: 2.7 x 4.2 x 1" / 68 x 107 x 25.3 mm
    • Weight: 0.4 lb / 182 g
  • Transmitter
    • Transmitter Type: Bodypack with Microphone
    • RF Output Power: 1 / 10 mW
    • Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
    • Pad: No
    • Muting: Off/On Switch
    • Audio Input Level: 8.2 dBV (Max)
    • Auto-Level Control: No
    • Gain Range: 0 +21 dB
    • Signal Processing: No
    • Frequency Response: 20 Hz to 20 kHz
    • Sync Method: IR
    • Antenna: 1/4 Wave External, Fixed
    • Power Requirements: Battery
    • Battery Type:
      • 2x AA (Included)
      • 1x Shure SB903 (Not Included)
    • Battery Charging Time: 1.25 to 5.5 Hours
    • Approx. Battery Life: 8 Hours (Lithium)
    • USB/Lightning I/O: No
    • Display & Indicators: LCD (Battery Status, Channel, Group)
    • Housing: ABS, Plastic
    • Operating Temperature: 0 to 122°F / -17 to 50°C
    • Storage Temperature: -20 to 165°F / -28 to 73°C
    • Dimensions: 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm
    • Weight: 3.1 oz / 89 g
  • Microphone
    • Microphone Type: Lavalier
    • Color: Black
    • Sound Field: Mono
    • Capsule: Electret Condenser
    • Polar Pattern: Cardioid
    • Frequency Range: 50 Hz to 17 kHz
    • Equivalent Noise Level: 28 dB A-Weighted
    • Maximum SPL: 130.5 dB SPL
    • Impedance: 1800 Ohms
    • Sensitivity: -45.5 dBV/Pa
    • CMRR: No
    • Dynamic Range: 102.5 dB
    • Output Connector: 1x TA4F/Mini-XLR 4-Pin Female Unbalanced
    • Cable Length: 4' / 1.22 m
    • Operating Voltage: 1.5 to 10 V

What's Included

  • 1 SLXD1 Digital Wireless Bodypack Transmitter
  • 1 WL185 Cardioid Lavalier Microphone
  • 1 SLXD5 Single-Channel Portable Digital Wireless Receiver
  • 2 Zippered Carrying Pouches
  • 1 WA311 Non-Conductive Cold Shoe Mount Adapter
  • 4 AA Alkaline Batteries
Additional Information
Product Type:
Microphone
