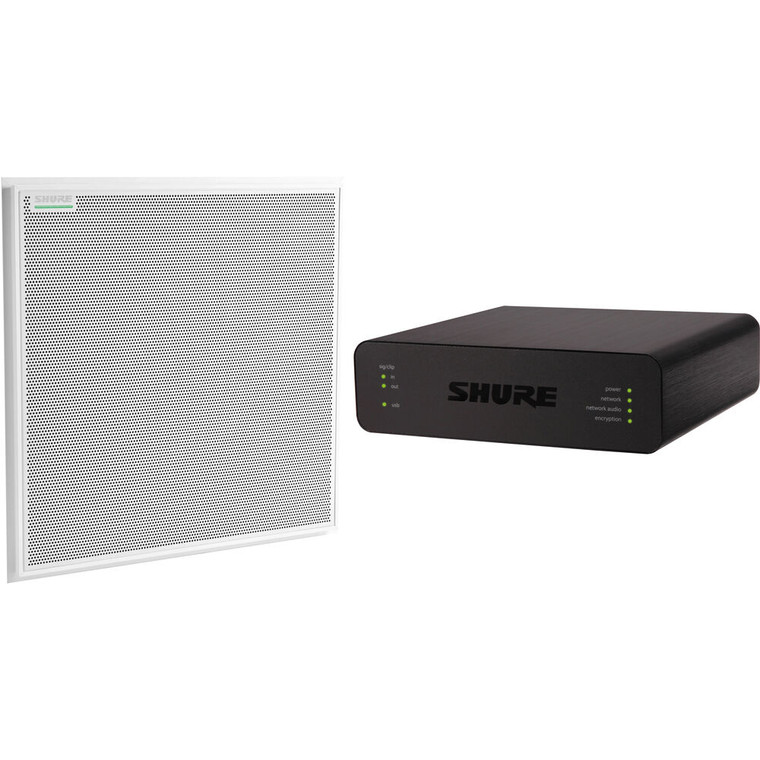

Shure MXA902 Microflex Advance Ceiling Array Microphone/Loudspeaker 60cm (White) & ANIUSB-MATRIX Audio Conferencing Kit

Shure MXA902 Microflex Advance Ceiling Array Microphone/Loudspeaker 60cm (White) & ANIUSB-MATRIX Audio Conferencing Kit

Shure
SKU:
MXA902W-S-60CM-USB

Pricing available upon request

Up to 2 year(s) limited warranty against manufacturer defects from Shure Singapore. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
Current Stock:
Description

Total Audioconferencing Solution, Pre-Configured Out of the Box

This Shure MXA902 + ANIUSB-MATRIX Audio Conferencing Kit combines an MXA902 ceiling array mic/loudspeaker (60cm, white) with an ANIUSB-MATRIX USB audio network interface, brackets, and cabling—all in one package. Pre-configured and pre-routed out of the box, the kit is ready-to-go for reliable, high-quality networked audio coverage in small- to medium-sized meeting spaces, with no Shure certification required.
Compatible with leading, third-party collaboration platforms, and following enterprise-ready network protocol best practices, the kit offers a total audio solution that is easy and fast to deploy, creating an effortless end-user experience.

MXA902 Microflex Advance Ceiling Array Microphone & Loudspeaker (60cm, White)

The 60cm, square, white MXA902 combines a microphone array and loudspeaker in one elegant solution-ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.

How It Works
  • The MXA902 is an advanced array microphone, wide-dispersion loudspeaker, and powerful signal processor combined into one unit for premium sound.
  • Single-Zone Automatic Coverage technology captures every talker in a 20 x 20' area while avoiding conversations and noises from other areas.
  • An integrated 2.5-inch wide-dispersion, high-output loudspeaker is optimized for voice reproduction to ensure effortless collaboration.
  • Onboard IntelliMix DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
  • An integrated ceiling device reduces clutter on tables and walls for a cleaner interior design.
  • Next-generation array architecture delivers enhanced low-frequency directionality and the most natural speech quality.
  • Unlike wall-mounted soundbar devices, a ceiling-mounted array mic and loudspeaker provide more consistent sound quality for every participant.
  • Fits European-standard 60cm ceiling tiles.
  • Additional options for ceiling, pole, or wire rope suspension mounting are available separately
Quality Details
  • Certified for use with Microsoft Teams and Zoom, and compatible with popular collaboration tools.
  • Square form factor features a paintable white finish to meet the architectural needs of today’s meeting spaces.
  • Audio, PoE+ power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
  • Shure Audio Encryption keeps meeting content secure between the MXA902 and other Microflex Ecosystem devices in the room.
  • The LED status bar features configurable colors and brightness.
  • Command strings enable seamless integration with third-party room control systems.

ANIUSB-MATRIX USB Audio Network Interface

The ANIUSB-MATRIX USB Audio Network Interface is designed for audio/video conferencing installations in small- and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.

At a Glance

  • Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
  • Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
  • Power over Ethernet (PoE) eliminates the need for an outboard power supply
  • Compact form factor is easy to mount without equipment rack

Key Features

  • Conferencing & Meetings in 20x20' Room
  • MXA902 Mic/Loudspeaker (60cm, White)
  • ANIUSB-MATRIX Interface
  • Fits Standard 60cm Euro Ceiling Tiles
  • No Shure Certification Required
  • IntelliMix DSP for Clear, Natural Speech
  • Supports Dante and AES67
  • Flexible Signal Routing and Connectivity
  • 1 Cable for Power (PoE+), Audio & Data
  • Compact Form Fact, Easy to Mount

Technical Specifications

  • General
    • Compatibility: Shure Microflex Advance
  • Inputs/Outputs
    • Audio I/O: 1x RJ45 Input/Output
  • Power
    • Power Source: PoE
    • Power Consumption: 24 W (Maximum)
  • Physical
    • Color: White
    • Certifications: CE, FCC, ICES-003, PlenumUL2043, REACH, UKCA, WEEE
    • Operating Conditions: 20 to 104°F / -6 to 40°C
    • Storage Conditions: -20 to 165°F / -28 to 73°C
    • Dimensions: 23.4 x 2.21 x 0.4" / 593.8 x 56.04 x 10.5 mm
    • Weight: 12.7 lb / 5.8 kg
Additional Information
Product Type:
Video Conferencing
