Shure Intellimix Room Kit 80 for Reconfigurable Multi-Cam Teams Room

Boost collaboration with simple and secure Microsoft Teams Rooms conferencing kits. With zero-touch provisioning, you can effortlessly deliver high-quality audio and video experiences in your small, medium, and large meeting and collaboration spaces, up to 33 x 18 ft (10 x 5.5 m). The component-based systems provide everything you need - automatically. No programming or adjusting of audio and video settings is required. All kits include a powerful Windows-based Teams Rooms compute with Shure’s premium audio signal processing, an intuitive touch panel, a superior all-in-one ceiling array microphone + loudspeaker, and intelligent, high-resolution video.

Everything You Need

The kits include all the components needed for a Microsoft Teams Room - audio, video, compute, and touch panel - in simplified, ready-to-deploy packages that reduce complexity, eliminate compatibility headaches, and ensure seamless interoperability.

Just Connect Cables

The Teams Room compute with embedded audio DSP and video software auto-configures connected devices upon initial bootup, shortening setup time and streamlining deployment.

Sign In and Start Your Meeting

Simply use the touch panel to enter your Teams Room credentials or use Windows Autopilot with Autologin for Teams Rooms. You're all set and ready to enjoy a feature-rich, native Teams Room experience.

Powerful IntelliMix Room® DSP

Delivers unparalleled sound quality with AI-enhanced echo-, noise- and reverb-free meeting audio, pre-installed and pre-configured to provide frictionless connectivity.

Premium Audio

The MXA902 innovatively combines an intelligent beamforming ceiling array microphone and high output, wide dispersion loudspeaker in an efficient, single device.

Intelligent Video

Huddly video solutions feature Huddly Director and Group Framing so that meeting participants are automatically and naturally presented to the far end.

Streamlined IT Operations

IntelliMix Room Kits enable real-time provisioning, monitoring, control, updates, and support from anywhere, via Windows Autopilot with Autologin for Teams Rooms, Teams Admin Center, Teams Rooms Pro Management Portal, ShureCloud, and integration with enterprise IT management platforms.

Enterprise-Level Security

The Microsoft Teams Room compute provides the robust security features for calls and collaboration in Teams.

Extended Warranty

Protect your investment, maintain financial predictability, and minimize potential downtime with an add-on 3-year warranty extension for 5 years total coverage.

Single-Vendor Support

Get a true one-stop experience and peace of mind with efficient, fast, and reliable support for all kits and components, including cameras, all from Shure.

Key Features

• IntelliMix Room Kits feature zero-touch provisioning including support for Windows Autopilot with Autologin for Teams Rooms.
• Shure’s IntelliMix Room® DSP enhances speech and removes distracting sounds ensuring every word is heard clearly and transcribed accurately with Microsoft 365 Copilot.
• The MXA902 ceiling array and loudspeaker provides unmatched acoustic performance and consistent full room coverage for clear, intelligible speech capture and reproduction.
• AI-powered cameras from Huddly automatically frame participants and optimize the video experience for visually engaging meetings.
• Remote and global management streamlines IT workflows via ShureCloud, Teams Admin Center, and Teams Rooms Pro Management Portal.

Technical Specifications

INTELLIMIX FOUNDATION COMPUTE

• GENERAL

  • CPU: 12th generation Intel Core i5 processor
  • Memory: 16 GB DDR4
  • Storage: 256 GB
  • Graphics: Intel UHD Graphics for 12th generation Intel processors
  • Operating System: Windows 11 IoT Enterprise (x64)
  • Software: Microsoft Teams Rooms, IntelliMix Room (8-channel), Huddly Connect
• INPUTS AND OUTPUTS

  • RJ45 (LAN): 1
  • RJ45 (To Touch Panel): 1
  • HDMI Out: 3
  • USB-A 3.0: 4
  • Power (DC In): 1
  • Kensington Lock: 1
• POWER

  • Power Supply: FSP120-ABBN3
  • Power Consumption: 120 W max.
• PHYSICAL SPECIFICATIONS

  • Weight: 2.4 lb. (1.1 kg)
  • Operating Temperature: 0°C (32°F) to 40°C (104°F)
  • Storage Temperature: −20°C (−4°F) to 60°C (140°F)

INTELLIMIX TOUCH PANEL

• DISPLAY

  • Resolution: 1920 x 1080
  • Frequency Refresh Rate: 60 Hz
• TOUCH SYSTEM

  • Type: Capacitive touch
  • Surface Treatment: Anti-fingerprint, anti-glare
  • Motion Sensor: PIR sensor for automatic wake-up
• INPUTS AND OUTPUTS

  • RJ45 (To Compute): 1
  • USB-C (Content Sharing): 1
  • USB-A 2.0: 1
  • Audio Out (3.5 mm): 1
• POWER

  • Input Power 52V DC (0.49 A) Delivered by DisplayLink over Cat5
  • Power Consumption: 13 W max.
  • Ethernet Cable Requirements: Cat5e or higher (shielded cable recommended)

MXA902 CEILING ARRAY MICROPHONE + LOUDSPEAKER

• GENERAL

  • Model: MXA902-S or MXA902-S-60CM
  • Coverage Area Size: 20 x 20 ft (6.1 x 6.1 m)
  • Coverage Type: Single-zone automatic
  • Power Requirements: Power over Ethernet Plus (PoE+), Class 4
  • Max. Power Consumption: 24 W
  • Control Software: Designer
  • Cable Requirements: Cat5e or higher (shielded cable recommended)
  • Connector Type: RJ45
• MICROPHONE

  • Frequency Response: 125 Hz to 20 kHz
  • AES67 or Dante Digital Output:

    • Channel Count: 1 output channel
    • Sampling Rate: 48 kHz
    • Bit Depth: 24
  • Sensitivity at 1kHz: −1.74 dBFS/Pa
  • Maximum SPL:
    • Relative to 0 dBFS overload
    • 95.74 dB SPL
  • Signal-to-Noise Ratio:
    • Ref. 94 dB SPL at 1 kHz
    • 75.76 dB A-weighted
  • Latency: Not including Dante latency: 26.6 ms
  • Self Noise: 18.24 dB SPL-A
  • Dynamic Range: 77.5 dB
  • Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
  • Acoustic Echo Cancellation Tail Length: Up to 250 ms
• LOUDSPEAKER

  • AES67 or Dante Digital Input: Channel Count: 2 input channels
  • Frequency Range (−10 dB): 120 Hz to 20 kHz
  • Maximum Output Level:

    • At 1 meter
    • Pink noise: 86 dB SPL
    • 1 kHz sine tone: 88 dB SPL
  • Coverage Angle: Average of 1 octave band centered on 4 kHz: 80°
  • Digital Signal Processing: Delay, compressor, signal generator, equalizer (4-band parametric)
  • Latency: Not including Dante latency: 6.3 ms

HUDDLY L1 CAMERA

• CAMERA

  • Sensor: 20.30 Megapixels 1” CMOS Sensor
  • Resolutions @ 30 fps: 1080p Full HD, 720p HD
  • Field of View:

    • Horizontal: 92 ̊
    • Vertical: 65 ̊
    • Diagonal: 103 ̊
  • Zoom: Up to 5x digital zoom
• CONNECTIVITY

  • RJ45 (PoE and data): 1
  • Cable Requirements: Cat5e or higher
  • USB-C: USB 3.0 port via USB to PoE Adapter

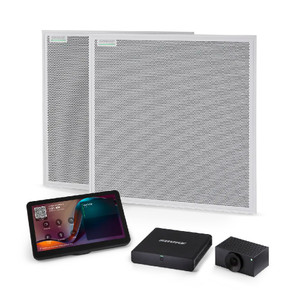

What's Included

• 1 IntelliMix Foundation System, inludes compute with pre-installed IntelliMix Room DSP Software and Huddly Connect App, touch panel, network switch, cables and accessories for power and connectivity
• 2 MXA902 Integrated Ceiling Array Microphone + Loudspeaker
• 1 HuddlyCrew Multi-Camera System, includes 3x Huddly L1 Networked Cameras, 8 port PoE+ switch, USB Adapter, cables and accessories
