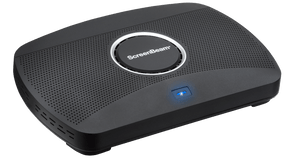

ScreenBeam 960 Wireless Display Receiver, For Wireless Conferencing & Presentation

ScreenBeam
SKU:
SBWD960A/B

Pricing available upon request

Current Stock:

ScreenBeam 960 wireless display receiver enables native screen mirroring from your Windows, Android and Apple devices — without apps or wires.

ScreenBeam 960 makes it easy to connect your mobile device to the room display with a single click or swipe. Extended desktop maintains device use for other actions while presenting, and support for interactive touch displays and wireless touch brings collaboration to the front-of-room display. Central Management System (CMS) software is included for remote management of receivers, providing enterprise-class security and manageability that IT departments need.

Key Features

  • Native wireless screen mirroring means no apps or wires
  • Trouble-free presenting from anywhere in the room
  • Collaborate wirelessly with interactive touch screen support
  • Share any form of content, videos, images, slides
  • Get meetings started quickly, switch presenters seamlessly
  • Extended screen maintains use of device for other actions
  • Take advantage of multiport connectivity and high-quality audio
  • Designed for commercial applications and dense wireless environments
  • Centralized IT management saves resources and budget
  • Minimal training required, simple to use
  • Connects to displays, projectors, control systems, and Skype Room systems via HDMI and USB

Technical Specifications

Hardware

Video
• H.264 compression
Audio
• LCPM 2.0
Resolution1
• Up to 1080p30
Ethernet
• 10/100 RJ-45 LAN

Wireless
• Miracast P2P: 802.11ac dual-band
• Infrastructure: 802.11a/b/g/n dual-band
Authentication
• WPA-PSK (TKIP)

Protocol
• WPA2-PSK (AES)
• PEAP-MSCHAP V2
• EAP-TLS

Interface
• 1 x HDMI Output
• 1 x VGA Output
• 1 x VGA Input (Pass-through)
• 1 x Analog 3.5mm audio output
• 1 x USB 2.0 Host Type-A
• 1 x DC Power Jack

Content Protection2
• HDCP 2.x

Power
• Input: 5VDC, 2A
• Consumption: Less than 5W

Dimensions
• 6.61 x 6.61 x 1.36 inch (168.0 x 168.0 x 34.5 mm)

Operating temperature
• 0 ºC to 40 ºC (32 ºF to 104 ºF)

Storage temperature
• 0 ºC to 70 ºC (32 ºF to 158 ºF)

Operating humidity
• 10 to 85%, non-condensing

Storage humidity
• 5 to 90%, non-condensing

Compatible OS/Device

Miracast P2P wireless display requires certified device with either;
• Windows 10 build 1607 (and later)
• Android 4.2 (and later)

Wireless display over network requires device with either;
• Windows 10 build 1709 (and later)
• Windows 7 (and later)
• macOS 10 (and later)
• iOS 11 (and later)

Language support
• English
• Simplified Chinese
• Traditional Chinese
• Japanese
• French
• German
• Dutch
• Korean
• Spanish
• Italian
• Russian

Others

Regulatory and compliance
North America:
• FCC, IC and UL
European Nation:
• CE, RED and RoHS
Asia Pacific:
• NCC, WPC, MIC/TELEC, SRRC and RCM
Latin America:
• COC, NOM-NYCE, MTC, CRC and SUBTEL

Certification
• Certified Wi-Fi Miracast Standard (in progress)

Warranty
• 1 year

Features:
Wireless Conferencing
Features:
Wireless Presentation
Product Type:
Video Conferencing
