Samsung LH85OHNDKGB/XS 85" OH85N-DK UHD 4K Double-sided Outdoor Signage
SamsungPricing available upon request
Samsung 3 year(s) limited warranty against manufacturer defects. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
A double-sided screen with slim depth
The OHN-D series has two screens to highlight brilliant content and graphics on each side. With 3,000nit brightness on both sides of the display, users can double their marketing in one location with vibrant content. Its slim design is ideal for a bus shelter or street billboards.
Unsurpassable visibility day and night
The OHN-D series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.
Easy-to-use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless transition and playback.
Built strong to endure impacts
The OHN-D series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10-rated, further proving its robust level of strength that can endure impacts.
Resistant to outdoor elements
The OHN-D series is verified to perform in outdoor settings. IP56-rated protection* ensures the OHN series will that withstand physical impact as well as dust**, humidity or other outdoor elements that could affect the display.
* Additional glass needed for OHN-D kit-type**Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.

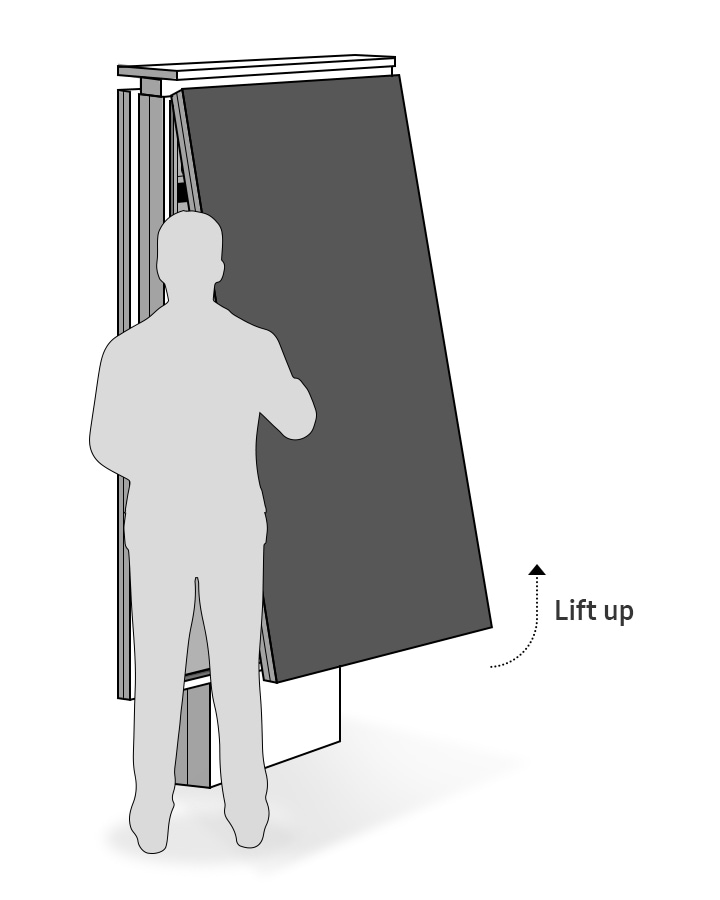

Easy setup and maintenance
Users can easily access the inside of the OHN-D series for repair or maintenance. Simply lift the set for quick entrance to the display’s inner components for any necessary updates.
Key Features
- Large displays optimized for DOOH
- Unsurpassable visibility day and night
- Easy-to-use management software
Technical Specifications
- Display
- Diagonal Size: 85"
- Panel Type: VA
- Resolution: 3,840 x 2,160
- Pixel Pitch (HxV): 0.4875(H) x 0.4875(V)
- Brightness (Typical): 3,300nit (w/o Glass)
- Contrast Ratio: 3,000:1
- Viewing Angle (Horizontal/Vertical): 178/178
- Response Time: 8ms
- Colour Gamut: 72 %
- Glass Haze: 0 %
- H-Scanning Frequency: 15~135KHz (HDMI), 30~135KHz (DP)
- Maximum Pixel Frequency: 594MHz (HDMI), 533.25MHz(DP)
- V-Scanning Frequency: 24~75Hz (HDMI), 30~75Hz (DP)
- Contrast Ratio (Dynamic): 100,000:1
- Connectivity
- HDMI In: 4
- DP In: 2
- Tuner In: No
- USB: 2
- RGB In: No
- Audio Out: Stereo Mini Jack
- RS232 In: Yes
- RJ45 In: Yes
- Power
- Power Supply: AC 100 - 240 V (+/- 10 %), 50/60 Hz
- Power Consumption (On Mode): 1800*2
- Power Consumption (Sleep Mode): 0.5*2 W
- Dimensions
- Set Dimension (WxHxD): 1193 x 2012 x 228 mm
- Package Dimension (WxHxD): 1600 x 2420 x 800 mm
- Weight
- Set Weight: 255 kg
- Package Weight: 321 kg
- Operation Conditions
- Temperature: -30~+50 ℃ss
- Humidity: 10 ~ 80%, non-condensing
- Optional Feature
- Protection Glass: No
- Mount: No
- Stand: No
- Internal Player (MagicInfo)
- MagicInfo Daisychain Videowall Support: No
- Certification and Compliance
- EMC: Class A
- Safety: 60950-1
- Resolution:
- Ultra HD - 4K
- Screen Size:
- 85"
- Product Type:
- Display
- Brightness:
- 3300nit
