Samsung LH55VHRRBGBXXS 55" VH55R-R Full HD Razor Narrow Bezel Video Wall Display

Samsung LH55VHRRBGBXXS 55" VH55R-R Full HD Razor Narrow Bezel Video Wall Display

Samsung
SKU:
LH55VHRRBGBXXS

Pricing available upon request

Samsung 3 year(s) limited warranty against manufacturer defects. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
Current Stock:
Description

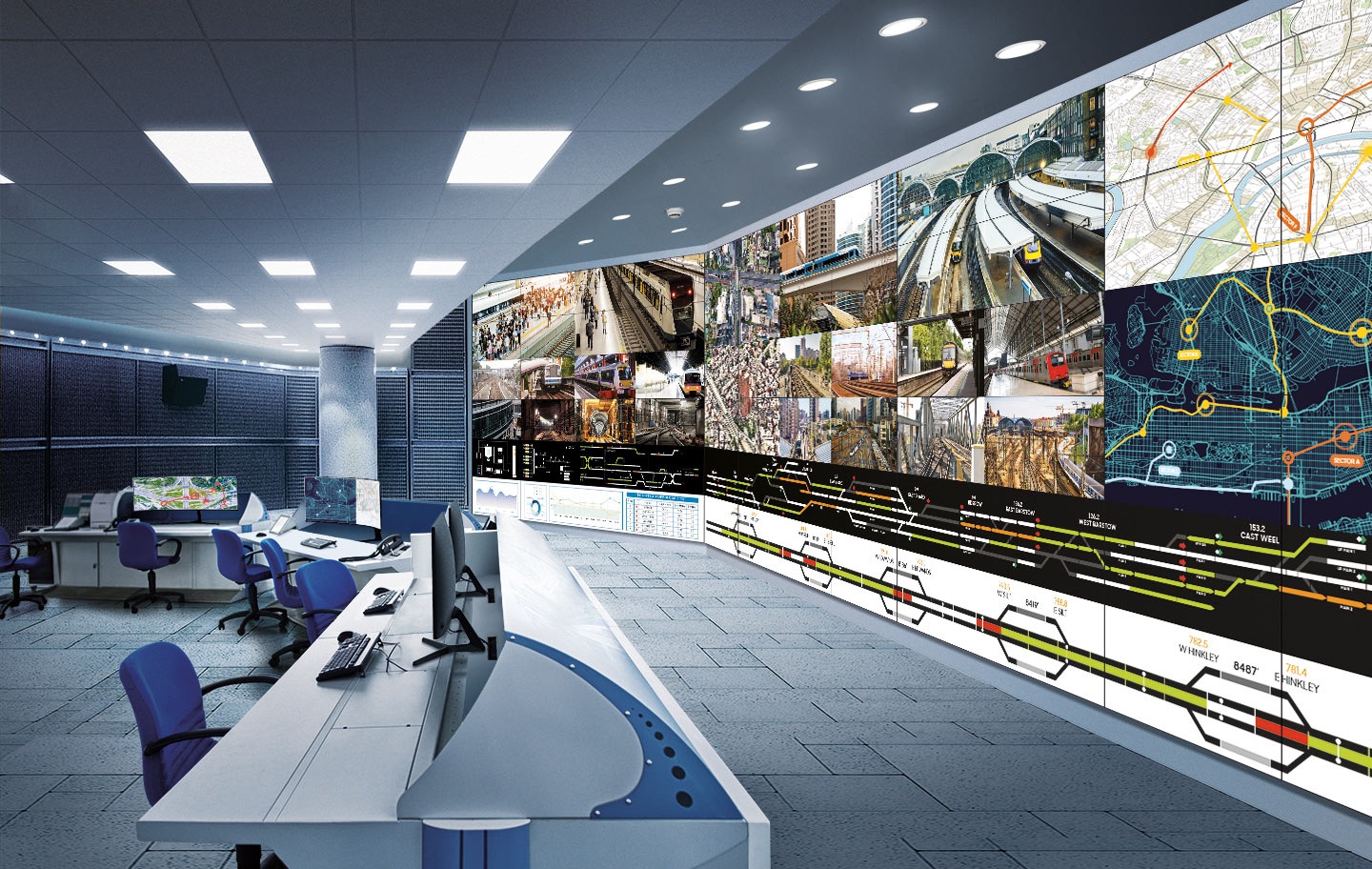

Seamless video walls with razor-thin bezels

With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHR-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.

Seamless video walls with razor-thin bezels

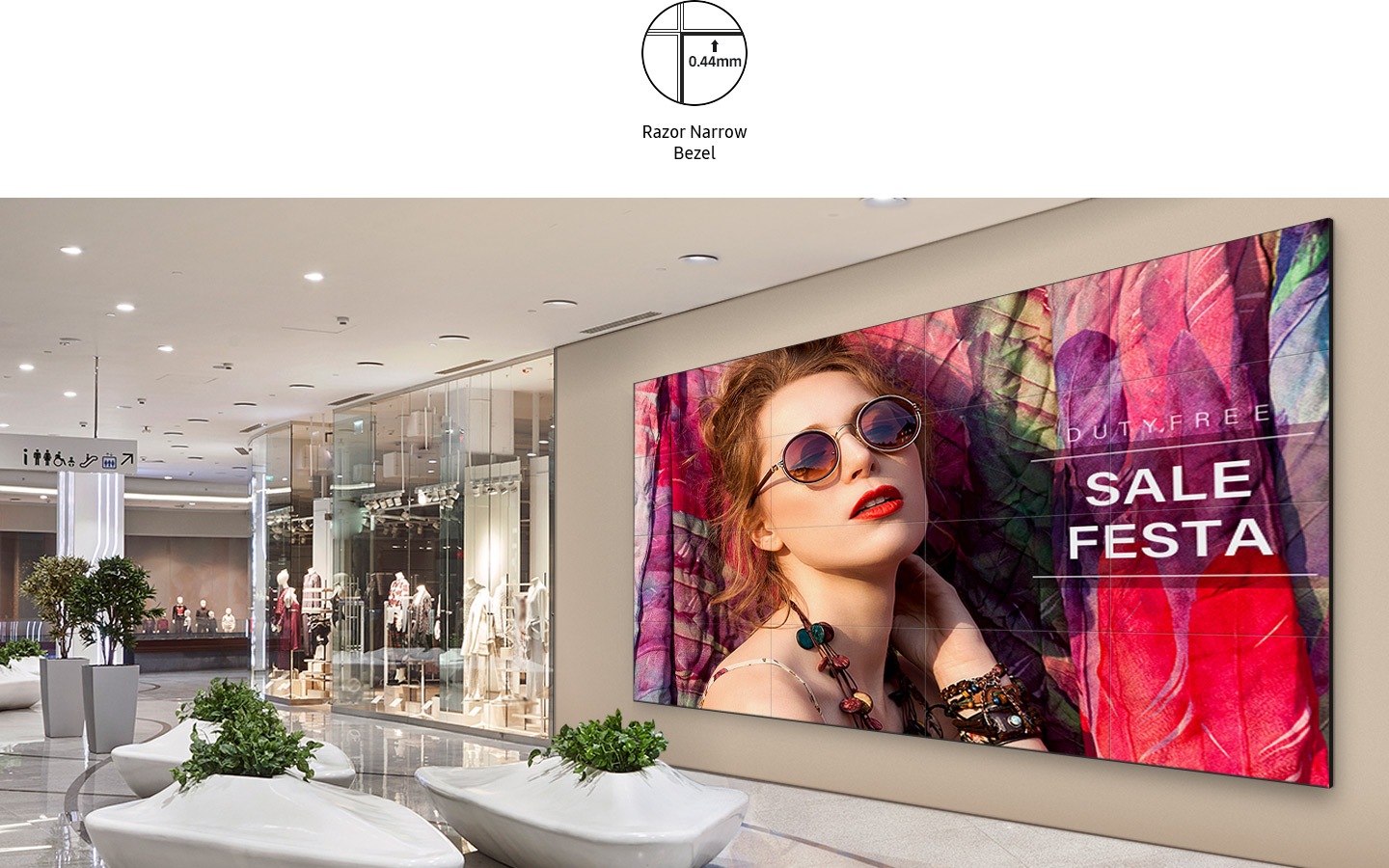

Nearly invisible 0.44 mm bezel

An Exceptionally thin 0.44mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.

Nearly invisible 0.44 mm bezel

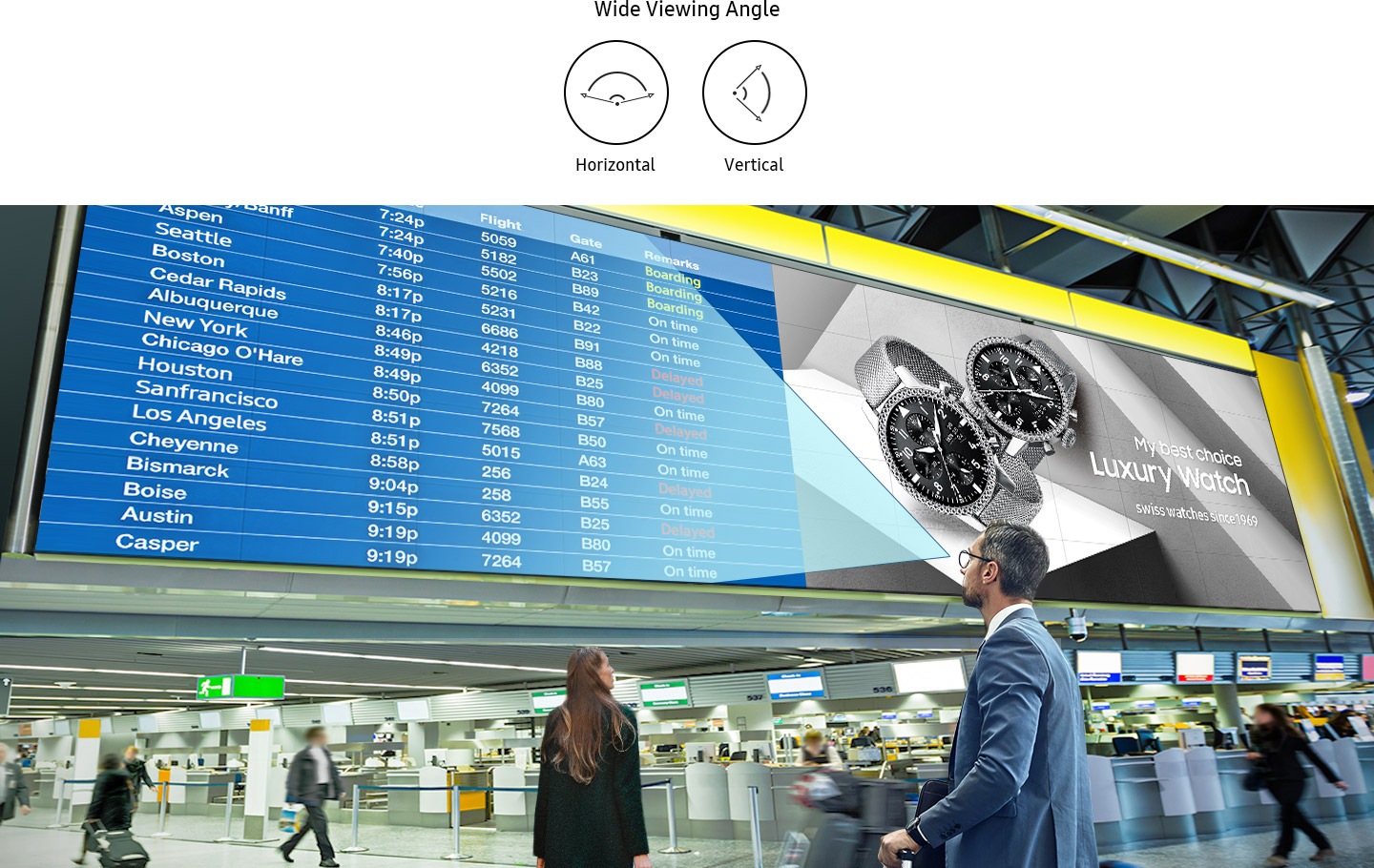

View content from any angle

The display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.

View content from any angle

Image enhancement technology

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

Image enhancement technology

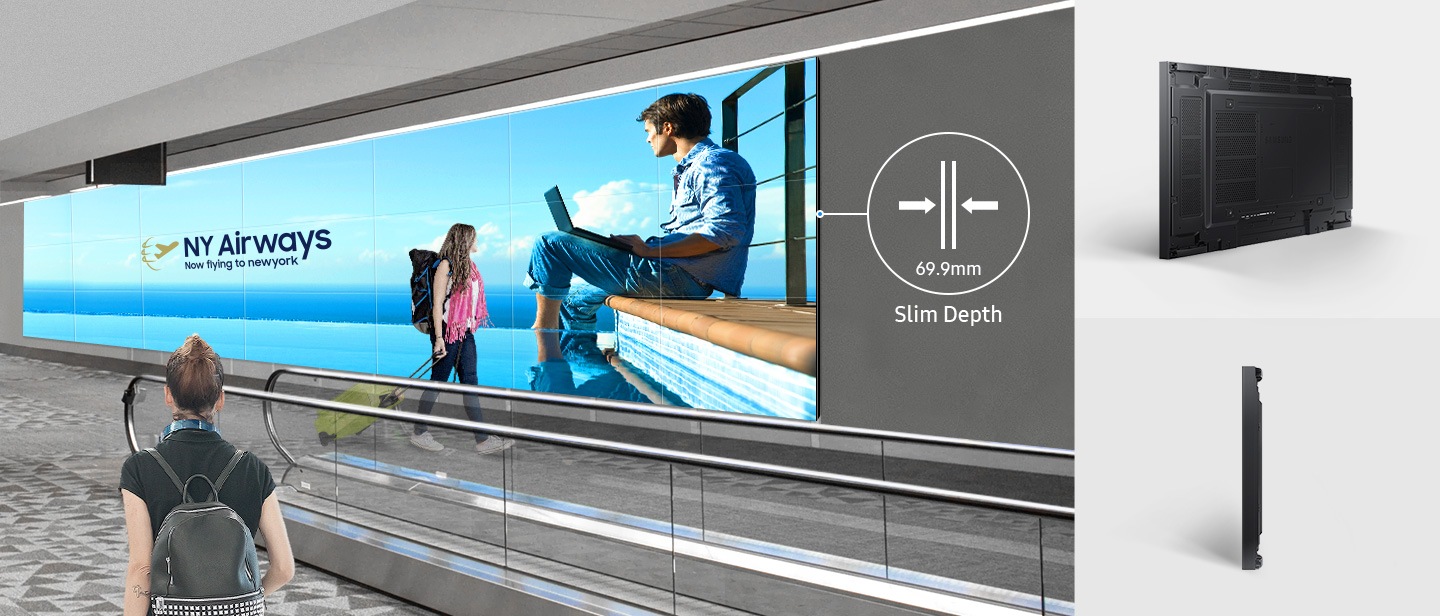

Modern, slim design

VHR-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.

Modern, slim design

Vibrant images 24/7

Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.

Vibrant images 24/7

Convenient mobile calibration

Samsung’s Colour Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.

Convenient mobile calibration

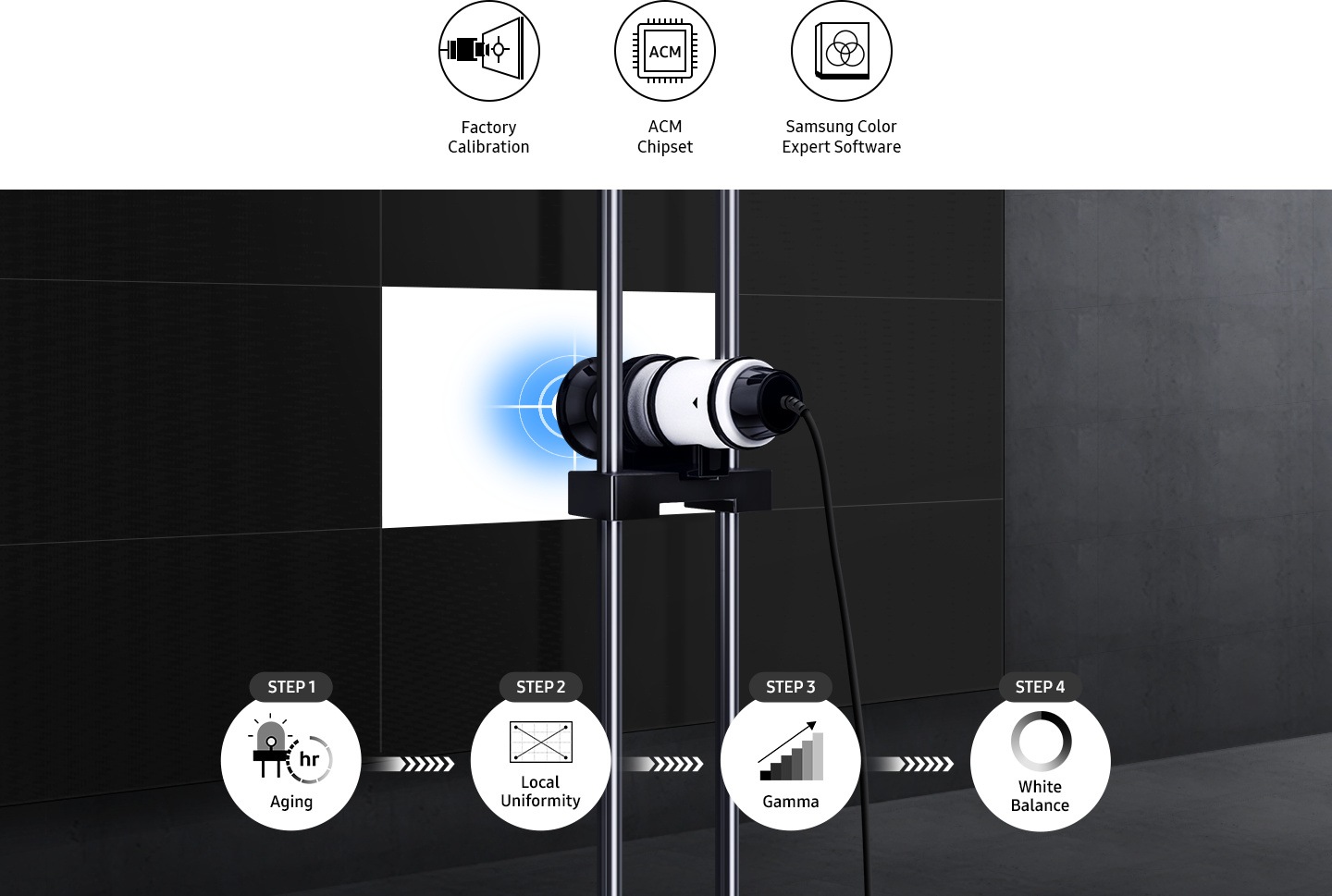

Comprehensive calibration

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and colour throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and colour uniformity with Samsung's Colour Expert Pro, a powerful free software program.

Comprehensive calibration

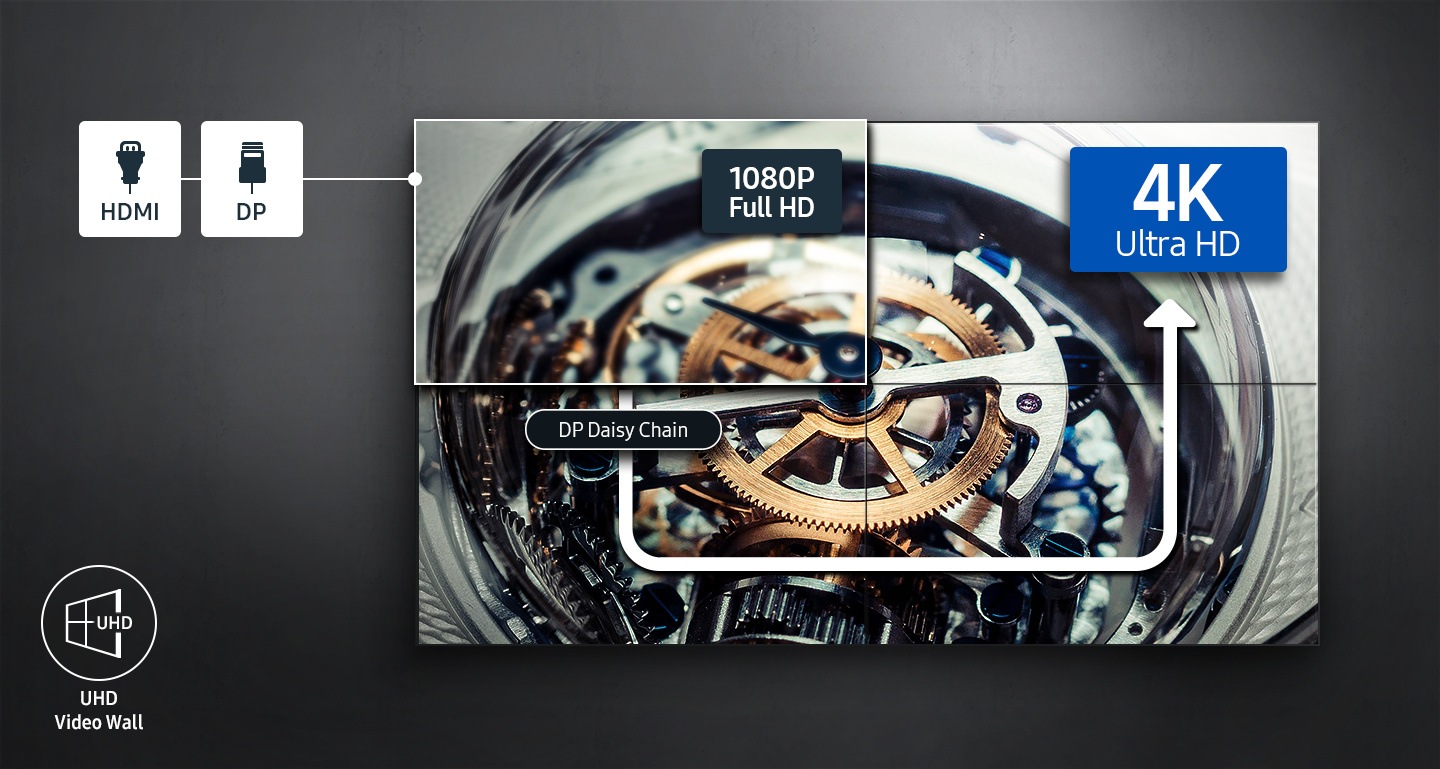

Advanced UHD presentation

Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilising DisplayPort 1.2 and HDMI ports, the VHR-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.

Advanced UHD presentation

Industry standard certified

The VHR-R series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 4-step, ISTA-certified test to minimise possible damage during delivery.

Industry standard certified

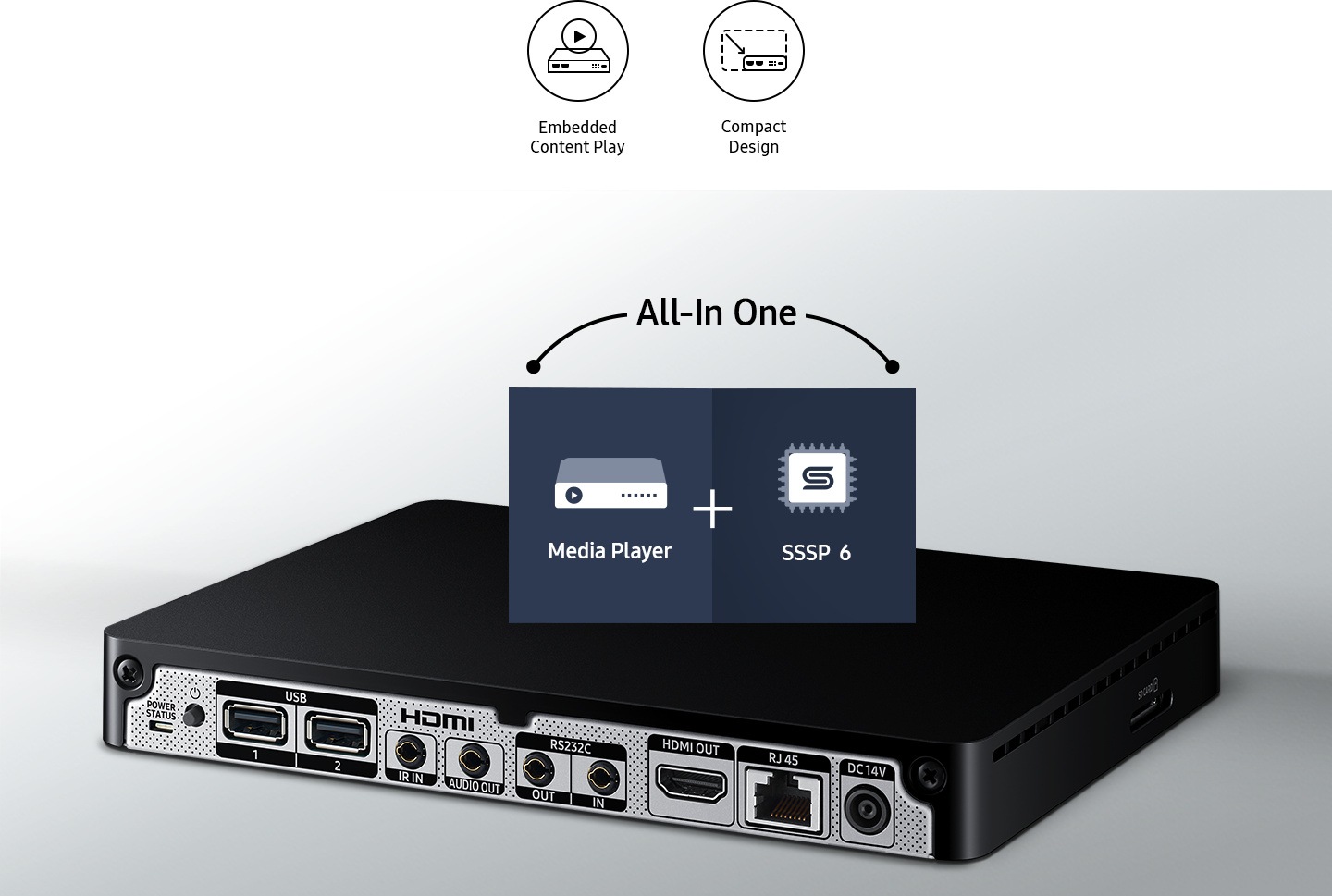

Intuitive all-in-one operations

The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.

Intuitive all-in-one operations

Key Features

  • Nearly invisible 0.44 mm bezel
  • View content from any angle
  • Image enhancement technology

Technical Specifications

  • Display
    • Diagonal Size: 55"
    • Panel Type: Direct LED
    • Resolution: 1,920 x 1,080
    • Pixel Pitch (HxV): 0.63x0.63
    • Brightness (Typical): Max 700 cd/㎡
    • Contrast Ratio: 1,100:1
    • Viewing Angle (H/V): 178/178
    • Response Time: 8ms
    • Colour Gamut: 0.72 %
    • Glass Haze: 0.28 %
    • H-Scanning Frequency: 57.3kHz ~ 70kHz
    • Maximum Pixel Frequency: 78MHz
    • V-Scanning Frequency: 47Hz ~ 63Hz
    • Contrast Ratio (Dynamic): 30,000:1
  • Connectivity
    • HDMI In: 2
    • DP In: 1
    • DVI In: 1
    • Tuner In: No
    • USB: 1
    • Component In: No
    • Composite In: No
    • IR In: Yes
    • HDBaseT In: No
    • Audio In: Yes
    • Audio Out: Stereo Mini Jack
    • Video Out: Yes
    • Power Out: No
    • RS232 In: Yes
    • RS232 Out: Stereo Mini Jack
    • RJ45 In: Yes
    • RJ45 Out: No
  • Power
    • Power Supply: AC 100 to 240 VAC (60 / 50Hz)
    • Power Consumption (On Mode): 270W
    • Power Consumption (Sleep Mode): 0.5W
  • Dimensions
    • Set Dimension (WxHxD): 1211.0 x 681.7 x 69.9 mm
    • Package Dimension (WxHxD): 1414.0 x 844.0 x 257.0 mm
  • Weight
    • Set Weight: 16.8 kg
    • Package Weight: 25.1 kg
  • Operation Conditions
    • Temperature: -0~40℃
    • Humidity: 10 ~ 90%
  • Mechanical Specification
    • VESA Mount: 600 x 400 mm
    • Bezel Width: 0.44 (even)
    • Frame Material: Glossy
  • Certification and Compliance
    • EMC: Class A
    • Safety: 60950-1
Additional Information
Resolution:
Full HD - 1080p
Screen Size:
55"
Product Type:
Display
VESA:
600 x 400
Brightness:
700nit
