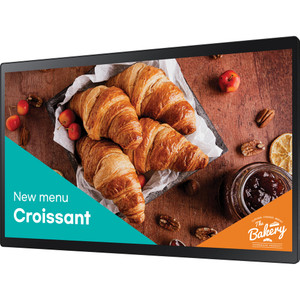

Samsung LH24QBCTBGCXXS 24" QB24C-T Full HD Interactive Display

Samsung LH24QBCTBGCXXS 24" QB24C-T Full HD Interactive Display

Samsung
SKU:
LH24QBCTBGCXXS

Pricing available upon request

Samsung 3 year(s) limited warranty against manufacturer defects. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
Current Stock:
Description

Expand commercial space with compact display

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Expand commercial space with compact display

Fast, effective touch capabilities

10 point multi-touch

The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Fast, effective touch capabilities

Connect with convenience

Home UI

QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Connect with convenience

Convenient, clean display control

Center IR

With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Convenient, clean display control

Safe operation, reliable performance

IP5X / EMC Class B

QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Safe operation, reliable performance

Change the way to manage your display

Samsung VXT

Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Change the way to manage your display

Key Features

  • Multi-touch
  • Compact design
  • Home UI

Technical Specifications

  • Display
    • Diagonal Size: 23.8"
    • Panel Type: ADS
    • Resolution: 1,920 x 1,080
    • Pixel Pitch (HxV): 0.2745 x 0.2745 mm
    • Brightness (Typ): 250 (Typ, w/o glass)
    • Contrast Ratio: 1000:1(without glass)
    • Viewing Angle (H/V): 178/178
    • Response Time: 14ms
    • Color Gamut: 72% (NTSC)
    • Glass Haze: 25(without glass)
    • H-Scanning Frequency: 56~84.5KHz
    • Maximum Pixel Frequency: 148.5MHz
    • V-Scanning Frequency: 48~75Hz
    • Contrast Ratio (Dynamic): Mega
    • Operation Time Support: 16/7
  • Connectivity
    • HDMI In: 1
    • DP In: N/A
    • DVI In: N/A
    • Version of HDMI: 1.4
    • Version of DP: No
    • Version of HDCP: 2.2
    • Tuner In: N/A
    • USB: 1
    • IR In: Yes
    • HDBaseT In: N/A
    • Audio In: No
    • Audio Out: Stereo Mini Jack
    • Video Out: N/A
    • Power Out: N/A
    • RS232 In: Yes
    • RS232 Out: N/A
    • RJ45 In: Yes
    • RJ45 Out: N/A
    • WiFi: Yes
    • 3G Dongle: N/A
    • Bluetooth: Yes
  • Power
    • Power Supply: AC100-240V 50/60Hz
    • Power Consumption (Off Mode): N/A
    • Power Consumption (On Mode): 38.5W
    • Power Consumption (Sleep Mode): 0.5 W
  • Dimensions
    • Set Dimension (WxHxD): 547.9 x 334.4 x 34.6 mm
    • Package Dimension (WxHxD): 620 x 419 x 122 mm
  • Weight
    • Set Weight: 4.0 kg
    • Package Weight: 5.2 kg
  • Operation Conditions
    • Temperature: 0 °C~ 40 °C
    • Humidity: 10 ~ 80%, non-condensing
  • Mechanical Specification
    • VESA Mount: 100 x 100 mm
    • Bezel Width: N/A
    • Frame Material: Non-Glossy
  • Optional Feature
    • Touch: Yes
    • Mount: No
    • Stand: No
  • SoC
    • OS Version: Tizen 7.0
    • Flash Memory Size: 8GB
  • Eco
    • Energy Efficiency Class: N/A
  • Touch
    • Touch Technology: Capative
  • Certification and Compliance
    • EMC: Class B FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
    • Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
Additional Information
Resolution:
Full HD - 1080p
Screen Size:
24"
Product Type:
Display
VESA:
100 x 100
Brightness:
250nit
