Samsung LH13QBRTBGCXXS 13" QB13R-T Full HD Interactive Display

Samsung LH13QBRTBGCXXS 13" QB13R-T Full HD Interactive Display

Samsung
SKU:
LH13QBRTBGCXXS

Pricing available upon request

Samsung 3 year(s) limited warranty against manufacturer defects. During the warranty period, the manufacturer's appointed authorised service centre will, at its sole discretion (a) repair the product using new or refurbished parts, (b) replace the product with a new or refurbished product.
Current Stock:
Description

Improved engagement with intuitive interaction

Samsung’s QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Improved engagement with intuitive interaction

Fast, effective touch capabilities

With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

Fast, effective touch capabilities

Crisp and visible content

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Crisp and visible content

Slim, smart design

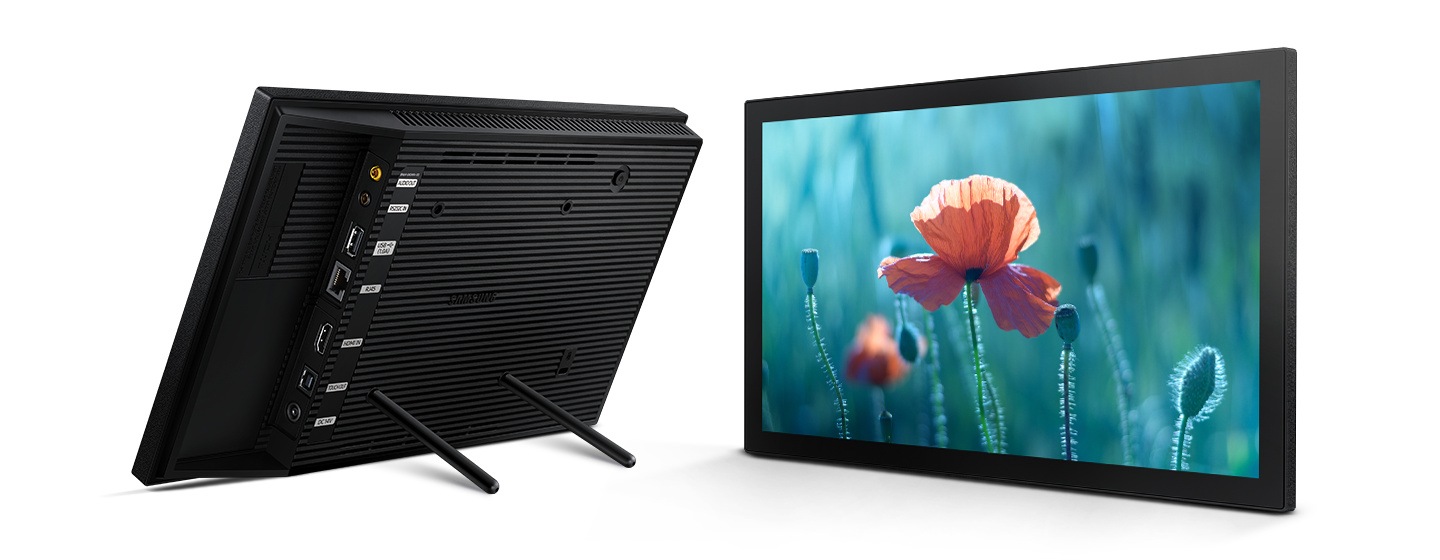

The compact and slim design of the QB13R-T allows for efficient space utilisation, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Slim, smart design

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Powerful content playback

Comprehensive security setup

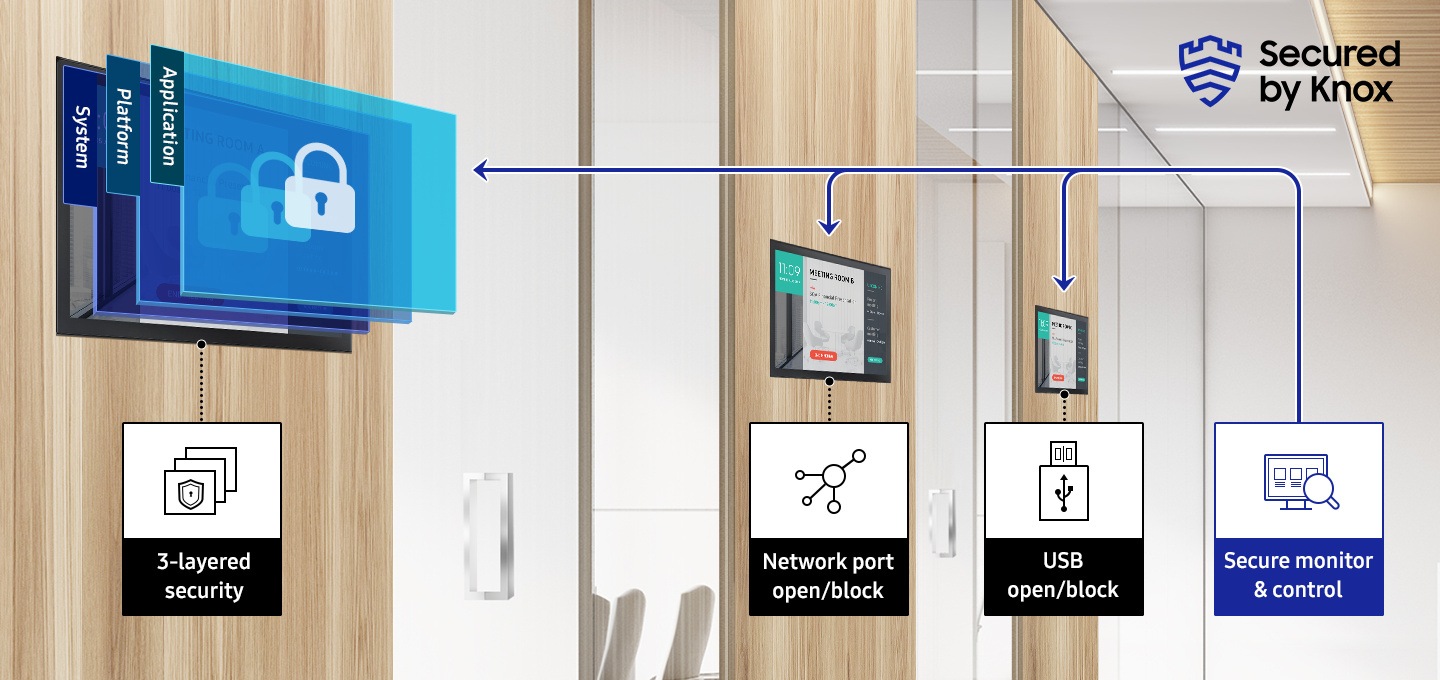

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorised access.

Comprehensive security setup

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi® allows wireless remote management for both content and display.

Convenient, clean display control

Safe operation, reliable performance

The QB13R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Safe operation, reliable performance

Key Features

  • Fast, effective touch capabilities
  • Crisp and visible content
  • Slim, smart design
  • Full HD (1920 x 1080) Native Resolution
  • Built-In Wi-Fi & Ethernet Connectivity
  • IP5X Rating for Dust Protection
  • Up to 10 Touchscreen Points
  • HDMI Input, USB Multimedia Playback
  • Dual Built-In 5W Speaker
  • Digital Signage Capable

Technical Specifications

  • Display
    • Diagonal Size: 13"
    • Panel Type: ADS
    • Resolution: 1,920 x 1,080
    • Pixel Pitch (HxV): 0.153 (H) x 0.153 (V)
    • Brightness (Typical): 250
    • Contrast Ratio: 600:1
    • Viewing Angle (H/V): 178/178
    • Response Time: 8ms
    • Colour Gamut: 45%
    • Glass Haze: 25%, 10%(glass)
    • H-Scanning Frequency: 30~81kHz
    • Maximum Pixel Frequency: 594MHz
    • V-Scanning Frequency: 48~75Hz
    • Contrast Ratio (Dynamic): 10000:1
  • Connectivity
    • HDMI In: 1
    • DP In: No
    • USB: 2
    • IR In: No
    • HDBaseT In: No
    • Audio In: No
    • Audio Out: Stereo Mini Jack
    • Video Out: No
    • RS232 In: Yes
    • RS232 Out: No
    • RJ45 In: Yes
    • RJ45 Out: No
    • WiFi: Yes
    • 3G Dongle: No
  • Power
    • Power Supply: AC100-240V 50/60Hz
    • Power Consumption (On Mode): 27.5
    • Power Consumption (Sleep Mode): 0.5 W
  • Dimensions
    • Set Dimension (WxHxD): 322 x 193.5 x 29.8 mm
    • Package Dimension (WxHxD): 376 x 132 x 248 mm
  • Weight
    • Set Weight: 1.1 kg
    • Package Weight: 2.0 kg
  • Operation Conditions
    • Temperature: 0℃~ 40℃
    • Humidity: 10 ~ 80%, non-condensing
  • Mechanical Specification
    • VESA Mount: 100 x 100 mm
    • Bezel Width: 13.1
    • Frame Material: Non-Glossy
  • Certification and Compliance
    • EMC: Class B
    • Safety: 60950-1
Additional Information
Resolution:
Full HD - 1080p
Screen Size:
13"
Product Type:
Display
VESA:
100 x 100
Brightness:
250nit
