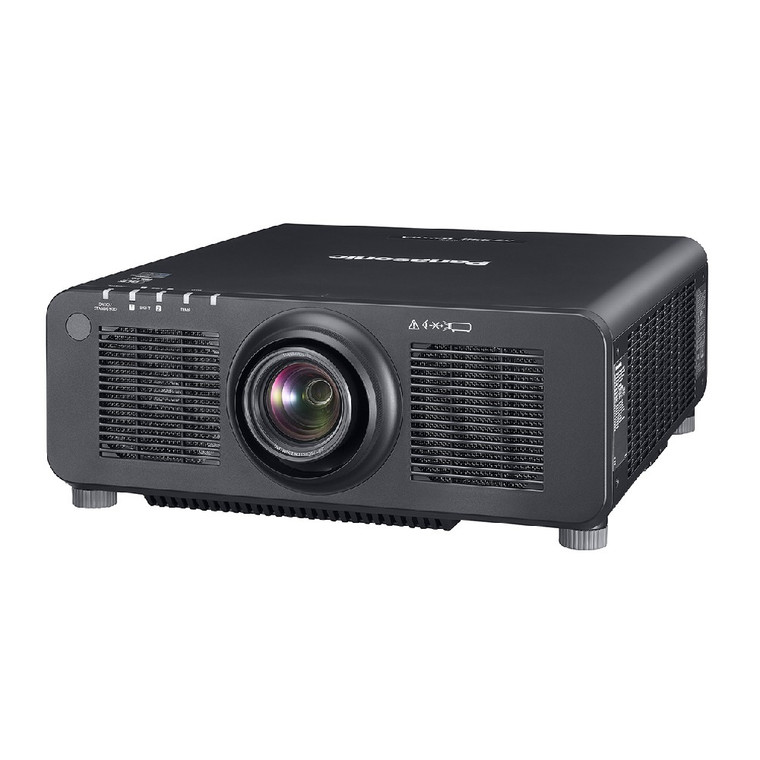

Panasonic PT-RZ990 10000lms WUXGA Laser Projector (Black)

Panasonic Quartet Color Harmonizer Realizes High Brightness and Accurate Colors

Expect saturated color and finely expressed detail from next-generation 1-Chip DLP™ technology without sacrificing brightness thanks to Quartet Color Harmonizer, an original color-wheel technology with optimized optical design. It precisely modulates light-source output according to color requirements.

Excellent Uniformity for Multi-Screen Projection

1-Chip DLP™ technology allows for great uniformity between adjoining screens. Minimal variation between DMDs allows images from PT-RZ990 Series projectors to be easily blended for a more immersive viewing experience.

System Daylight View 3

Panasonic’s premium System Daylight View 3 technology stops the picture washing out in bright light and preserves brightness, contrast, and color especially in museum and halls. It uses sensor information to adjust sharpness, gamma curves, and color to suit on-site lighting conditions.

Smart Projector Control

Smart Projector Control is a mobile app enabling remote control of select projectors. Install on your iPhone or Android™ phone or tablet, connect to your compatible projectors via Wi-Fi® (LAN), and control functions including lens adjustment, input switching, status monitoring, and more. The app also features a handy auto-focus function* that uses the smartphone’s camera to achieve precise projector focus, saving time on installation.

Geometric Adjustment with Free Grid Correction

PT-RZ990 Series benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly create a distortion-free image.

Expanded Lens Lineup Widens the Scope of Installation

Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world’s first* UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

* For lenses with a 0.4:1 throw-ratio or less as of February 2019 according to internal research.

Supports 4K Signal Input

PT-RZ990 Series supports uncompressed 4K signal input* via HDMI® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.

* Supports signals up to 4K/60p. 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.

Separate LAN and DIGITAL LINK Terminals

Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron®, AMX, and Extron® applications to be assigned to a dedicated LAN connection, freeing the DIGITAL LINK pipeline for video over cable runs of up to 150 m (492 ft)*.

* 1080/60p signal transmission over distances up to 150 m (492 ft) requires CAT 5e or higher cable with optional ET-YFB200G DIGITAL LINK Switcher (not compatible with 4K signals) and the projector set to Long Reach Mode. Direct transmission is supported over distances up to 100 m (328 ft) for 1080/60p video signals or 50 m (164 ft) for 4K/60p video signals.

Filterless Projector Structure with Airtight Optical Block

Heat-pipe-based*1 filterless cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry’s toughest guidelines, you’re assured of a linear brightness ramp, superior color uniformity, and maintenance-free projection for 20,000 hours*2. These benefits are welcome when the projector is installed in a difficult-to-access location.

*1 PT-RZ990/RZ890 feature a heat-pipe-based cooling system. PT-RZ790/RZ690 feature a heat-sink-based cooling system.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Normal Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends cleaning or checkup at point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on environment.

Dual Lasers for Failsafe Reliability

Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and color-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Backup Input Setting Protects Picture Display

Projectors can be configured to switch instantaneously to a backup input-signal should the primary signal be disrupted*. This layer of insurance is invaluable in control rooms, security and surveillance applications, and for live events where image projection must not be interrupted.

SOLID SHINE Laser Maintains Picture Quality for Longer

Thanks to two long-lasting solid-state laser modules, there are no lamps to replace, and color and brightness decline gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved for longer.

Dynamic Light Control for High Contrast

Dynamic Light Control directly modulates laser output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures precise light output adjustment while accurate contrast is delivered even when bright and dark scenes frequently interchange.

Detail Clarity Processor 3

This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural, convincing realism.

Contrast Sync and Shutter Sync Function

Contrast Sync, designed for multi-screen applications, allows dynamic contrast control to be synchronized for consistent picture quality across screens. Shutter Sync, meanwhile, synchronizes shutter on/off timing.

Multi-Unit Brightness and Color Control

Sensors detect color and brightness apparent on screen. Projectors automatically calibrate for a uniform multi-screen image, adding a layer of convenience and cost saving for long-term events.

Multi-screen Support System

Optimally adjusts multiple screens with edge blending, color matching, and digital image enlargement.

• Edge Blending - Edges of adjacent screens can be blended and their brightness controlled.
• Color Matching - Corrects color reproduction variations of each projector via PC control software.
• Digital Image Enlarging - Digital zoom up to 10X (H/V*). Up to 100 images (10 x 10) can be edge-blended to create a large multi-screen image.

* While input resolution will not change, maintaining image quality is not possible for images enlarged horizontally and vertically via the digital zoom function.

Single-Cable DIGITAL LINK Connection

DIGITAL LINK transmits uncompressed 4K (4.2.0) video*1, audio*2, and control commands through a single CAT 5e or higher STP cable for distances of up to 50 m*3. Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.

*1 4K input signals are resized to the projector's resolution.

*2 Audio transmission depends on model’s audio capability.

*3 150 m (492 ft) transmission available with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p.

Quick Start and Quick Off

The laser light-source doesn’t require any time to warm up, so images appear almost instantly with projectors equipped with Quick Start/Quick Off function. There’s also no cool-down period when turning the power off at the mains or room breaker—the projector can be turned on and off any time as necessary.

Geometry Manager Pro Software and Upgrade Kits

Download free Geometry Manager Pro software to expand geometric and multi-screen setup and calibration capabilities via PC. The suite includes two upgrade kits that can be optionally unlocked with paid key codes. ET-UK20 adds uniformity correction and extensive creative masking capabilities. ET-CUK10 features Auto Screen Adjustment which enables simultaneous setup (including curved-screen correction) of multiple projectors for multi-screen applications using a compatible camera. This streamlines edge-blending, color-matching, black-level, stacking, and brightness uniformity calibration.

Note: Use of Geometry Manager Pro and optional upgrade kits requires the latest firmware and projector registration. Visit PASS to register your projector, download the latest firmware, download free Geometry Manager Pro software for Windows® (optional ET-UK20/ET-CUK10 upgrade kits included), and purchase license activation keys for ET-UK20/ET-CUK10. Compatible cameras for ET-CUK10 comprise Nikon D5200/D5300/D5500/D5600/D7500. Use of ET-CUK10 with these cameras requires installation of Auto Screen Adjustment Plug-in (a free camera driver available from PASS). Use of Auto Screen Adjustment function with D7500 requires Geometry Manager Pro Ver. 6.1.10 or later and Auto Screen Adjustment Plug-in Ver. 5.1.10 or later.

Data-Cloning Function

Data-cloning function allows various settings and configuration data*1 to be copied from a main projector to up to 99 sub projectors*2. Alternatively, the data can be cloned to sub projectors via LAN. This feature simplifies and expedites the setup process for multi-unit projection applications.

*1 Excludes passwords, projector name/ID, and network settings.

*2 Data-cloning function supported on identical projectors only.

Selectable Operational Modes

Select your preferred operational mode to balance brightness decline with brightness output according to the specific requirements of individual applications.

Key Features

• Laser safety guaranteed
• DICOM Simulation Mode
• Built-in Geometric Adjustment
• Art-Net DMX, Crestron Connected™, and PJLink™
• Rec. 709 Mode for HDTV Projection
• Fade In and Fade Out
